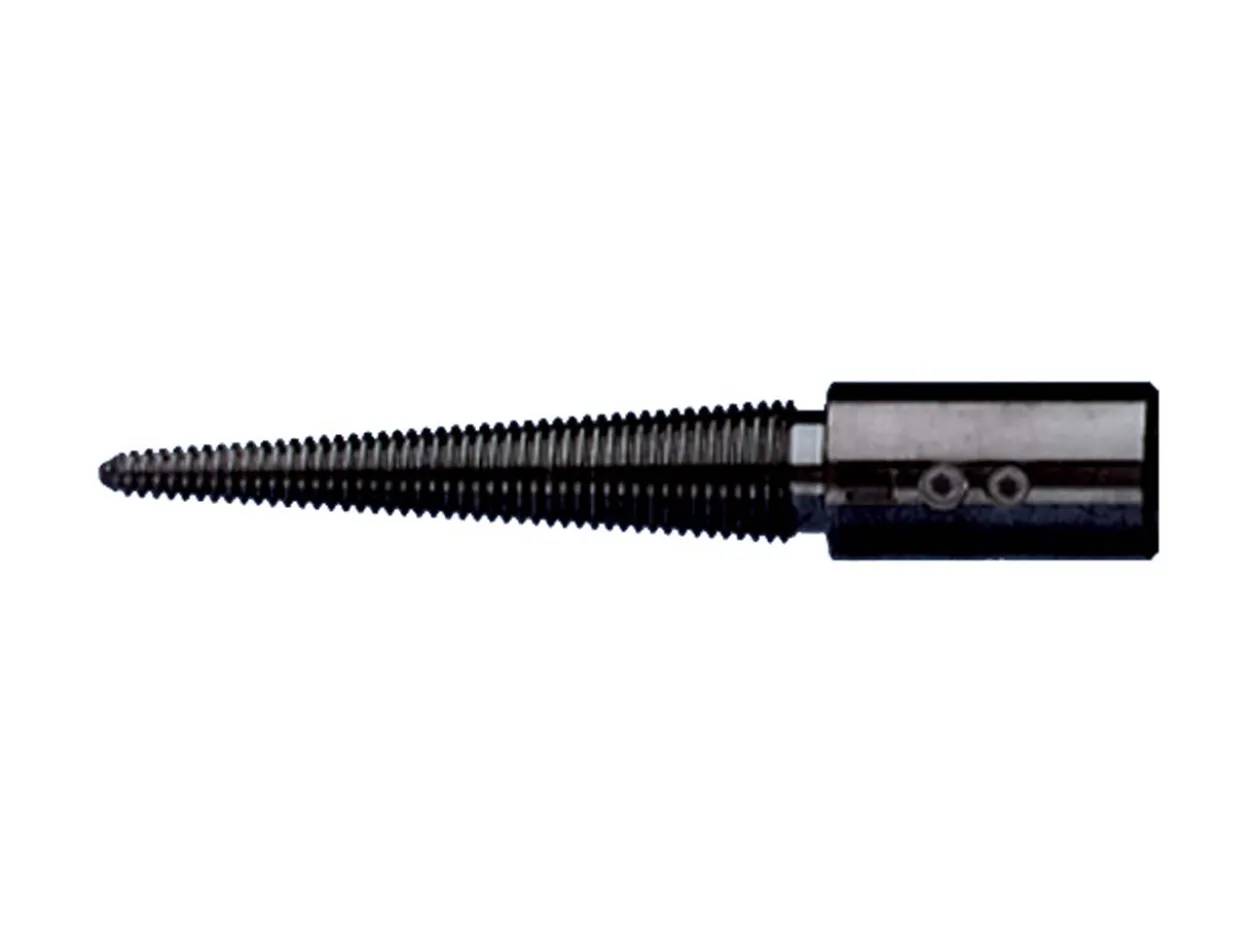

Tapered Spindle For Foredom Variable Speed Polishing Machine Left Hand

Description

This lathe spindle is tapered with treads to hold both soft and buff wheels on the Foredom Variable Speed Polishing Machine ().

The tapered spindle can be used to hold a variaty of pin hole accessories such as buffing wheels, felt wheels, brushes and many more pin hole accessories featuring a arbour hole of 8mm.

The spindles are suitable to use with a variety of mops up to 100mm(4″) diameter including cotton, felt and chamois with shellac-hardened leather, lead or wooden centres. 76mm (3″) or smaller wheels with arbor holes up to 11mm in diameter can also be used.

We would recommend:

• Foredom 57 piece polishing kit:
• Foredom 102mm (4″) Rubber Wheel: 999 FD96
• 102mm (4″) Stitched Calico Mop:
• 89mm (3.5″) Finger Felt:
• 76mm (3″) Stitched Fine Mop:
• 102mm (4″) Stitched Yellow Mop:

The tapered portion has left hand threading, for use on the left side of the motor as you face it.

Specifications:

• Tapered Spindle: Left Side Mandrel as you face the machine
• Arbour Hole Size: 8mm
• Working length: 61mm
• Overall Length: 92mm
• Total diameter: 15.6mm
• Working diameter 12.5mm

Foredom part number: A-TM5.

Please note – Wheels or Mops over 4″ diameter should not be used with this motor.
