Busch Burr 415 Lens 2.3mm

Description

Established in 1905, Busch are the leading manufacturers of precision cut rotary accessories and pride themselves on maintaining high quality trend led developments.

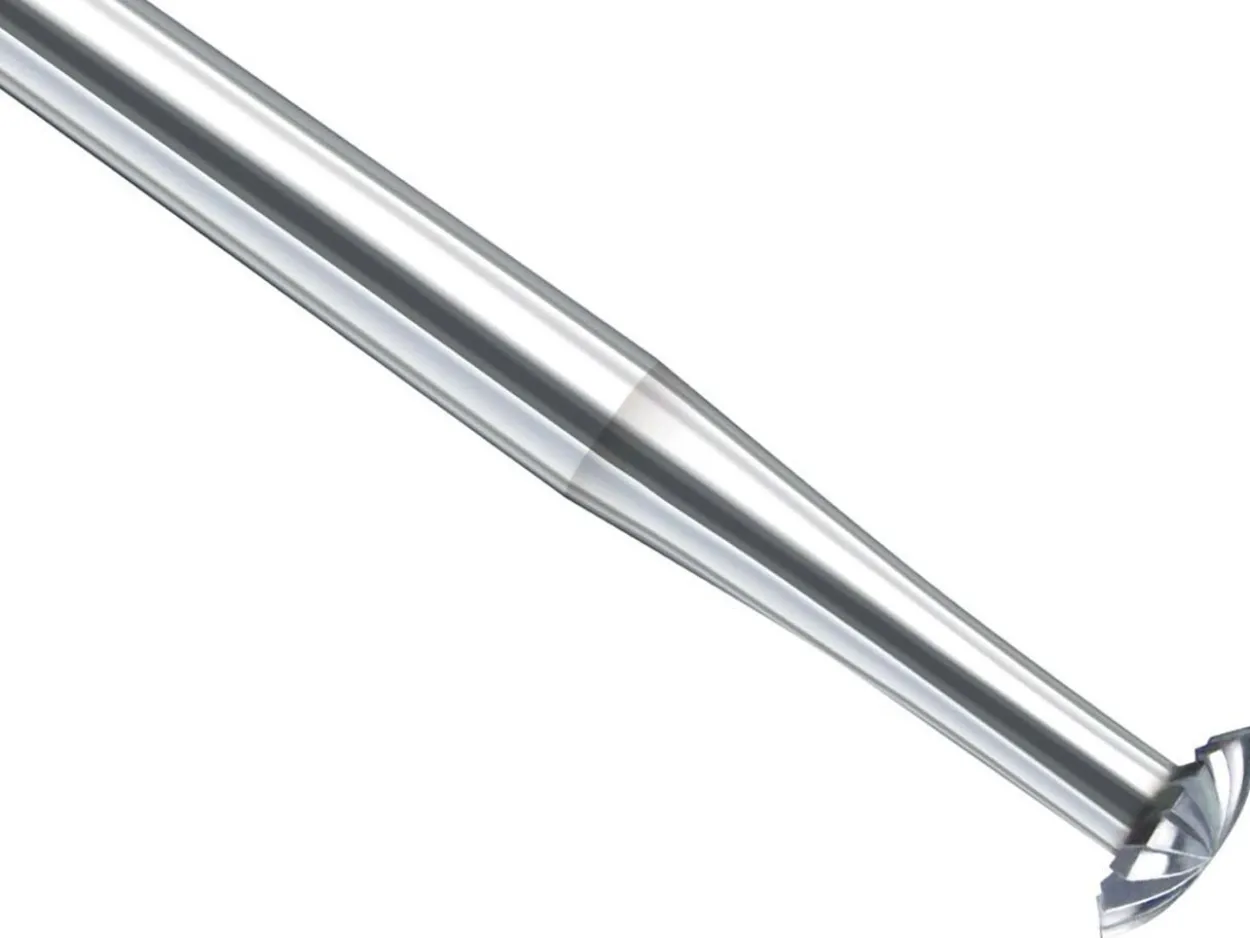

This Busch 415 lens Burr has been produced from a single piece of hardened steel and is characterised by a stable design which provides a precise power cut and optimum concentricity.

Measuring 2.3mm at its’ widest, it then arches at a perfect 55 degree taper from the centre out to a sharp knife-like edge, making is ideal for accessing tight areas such as claw seats creates a wider-angled cut.

This lens burr is also useful for removing material from contoured surfaces and creating a bark effect on metal.

It has a full working head depth of 0.52mm.

It is designed to be used in conjunction with a pendant drill, hobby drill, micromotor or even a pin vice such asorto cut or grind away leaving a perfectly prepared setting.

Suitable to be used on metal, wax and plastics.

Each burr’s construction consists of a number of teeth/blades (inside of the cup) mounted onto a 2.34mm shank.

The shank fits into the collet/chuck of the drill, and when turned these teeth cut into and remove the surface being worked upon.

Quantity of material removed depends on pressure applied, use of ‘Burr Life lubricant’ () helps prolong the burrs cutting ability.

Catalogue Page Number p665
