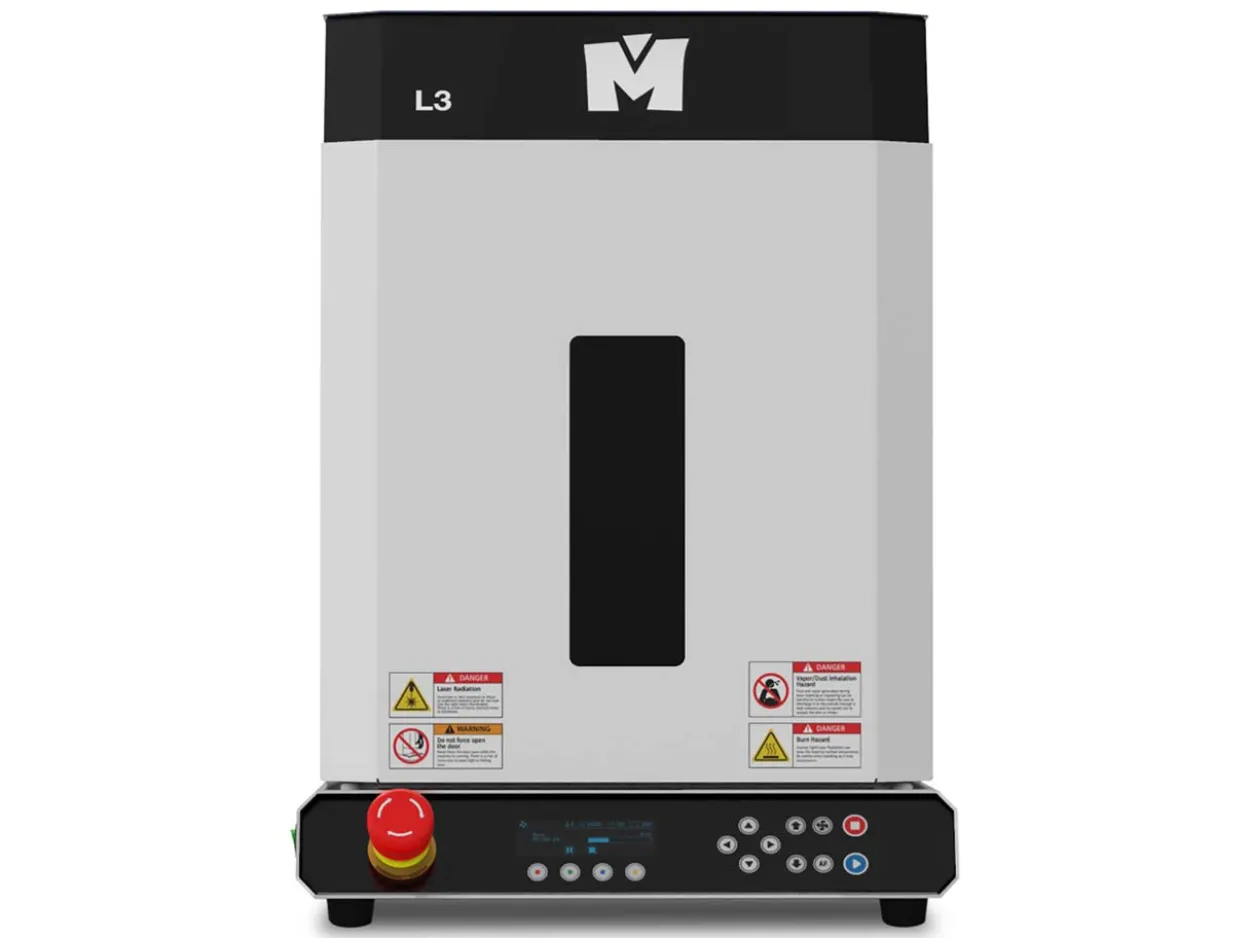

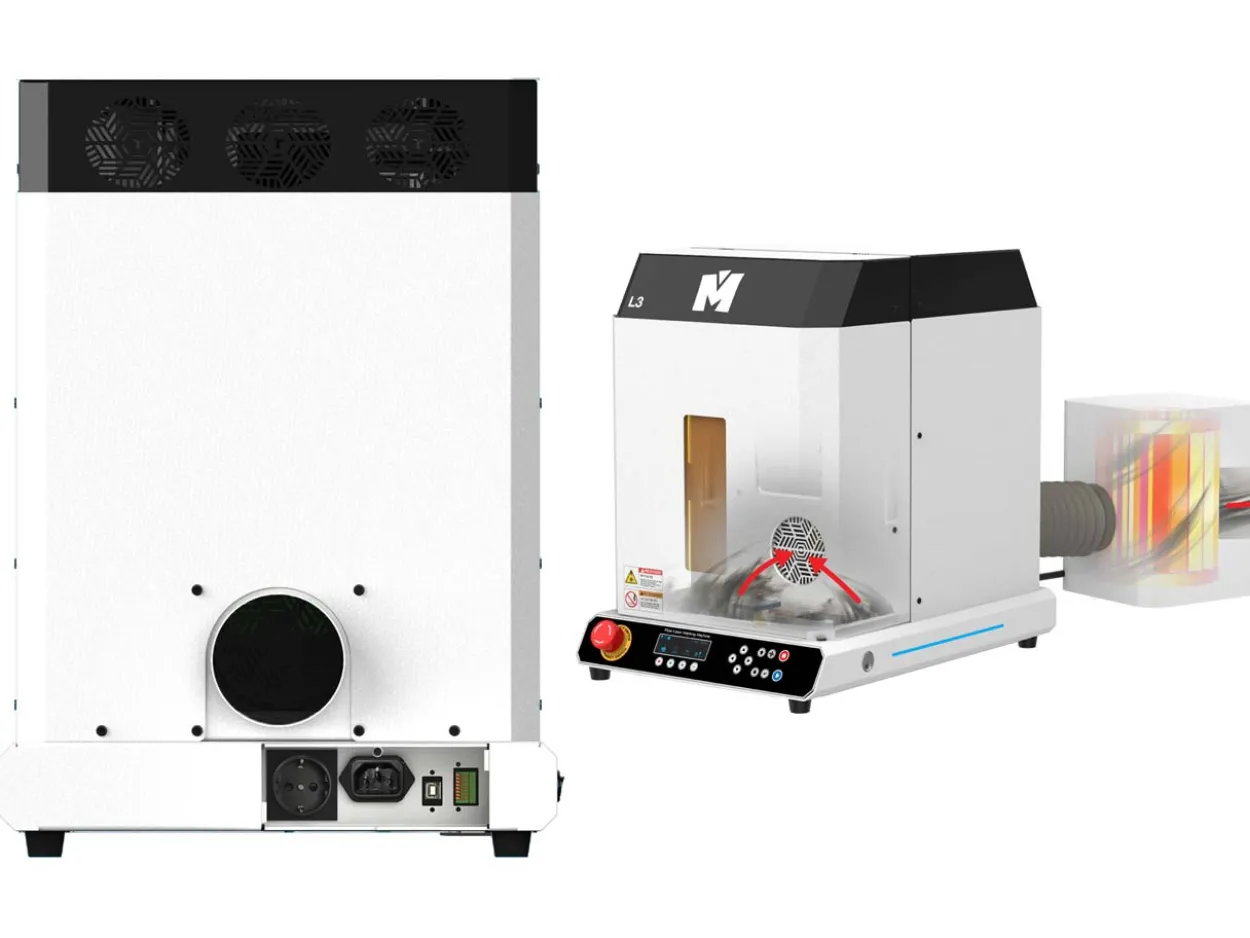

Magic L3 Fiber Laser Marking Machine 30w

Description

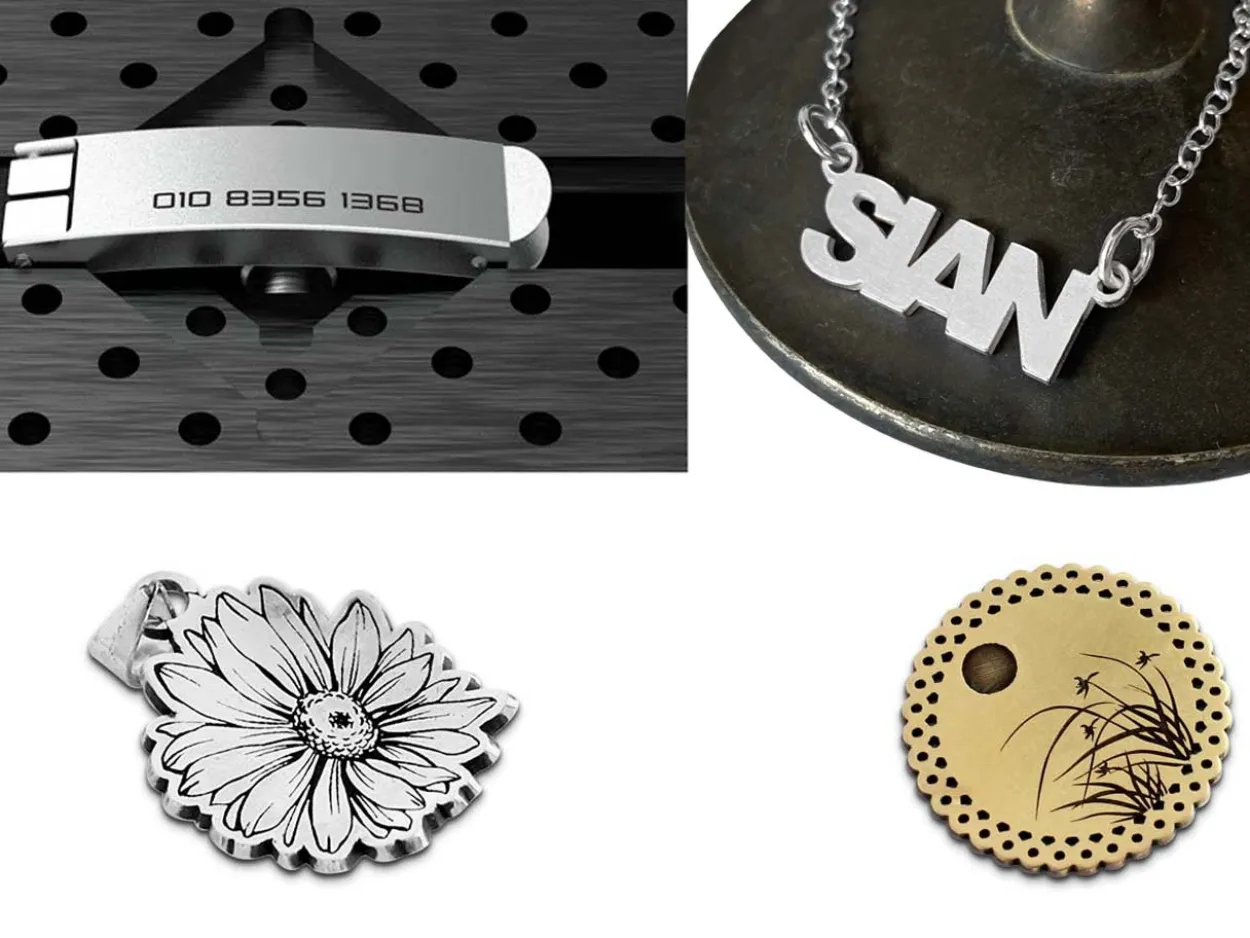

The MAGIC L3 Fiber Laser Marking Machine 30W is a third-generation MOPA fiber laser marking and cutting machine designed specifically for the jewellery industry. Combining high-speed performance, intelligent automation, and precision laser technology, the MAGIC-L3 delivers exceptional marking and cutting results on a wide variety of jewellery and accessory products.

Designed with a modern, compact structure and user-friendly controls, the MAGIC-L3 is ideal for jewellery workshops, retail stores, and personalization businesses looking for professional-quality laser engraving and cutting solutions.

Powered by advanced MOPA fiber laser technology, the machine offers superior pulse control for highly precise and high-contrast marking on metals, plastics, and reflective materials. It supports a wide range of operations including black and white marking, deep engraving, photo marking, colour marking, cutting, and detailed decorative engraving.

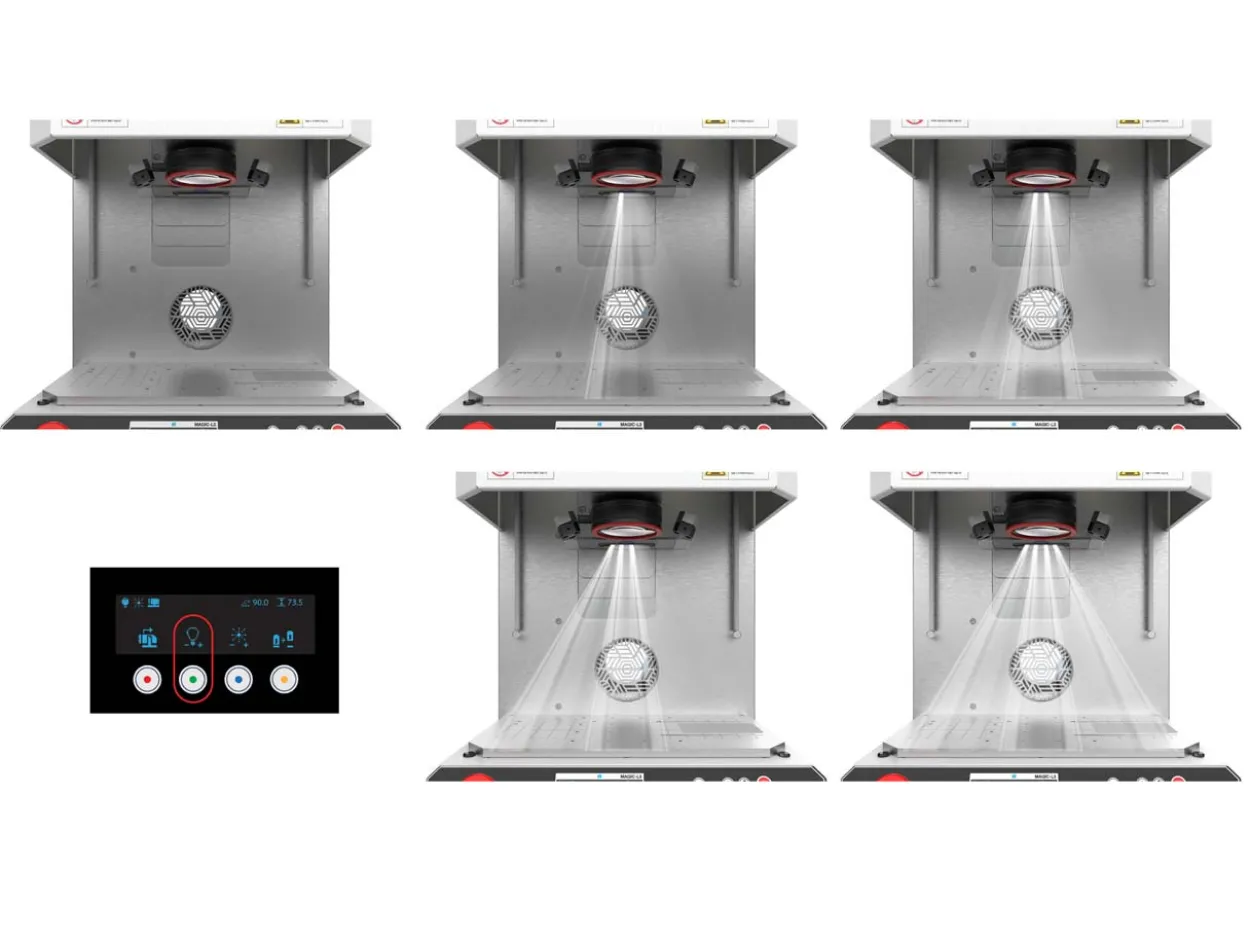

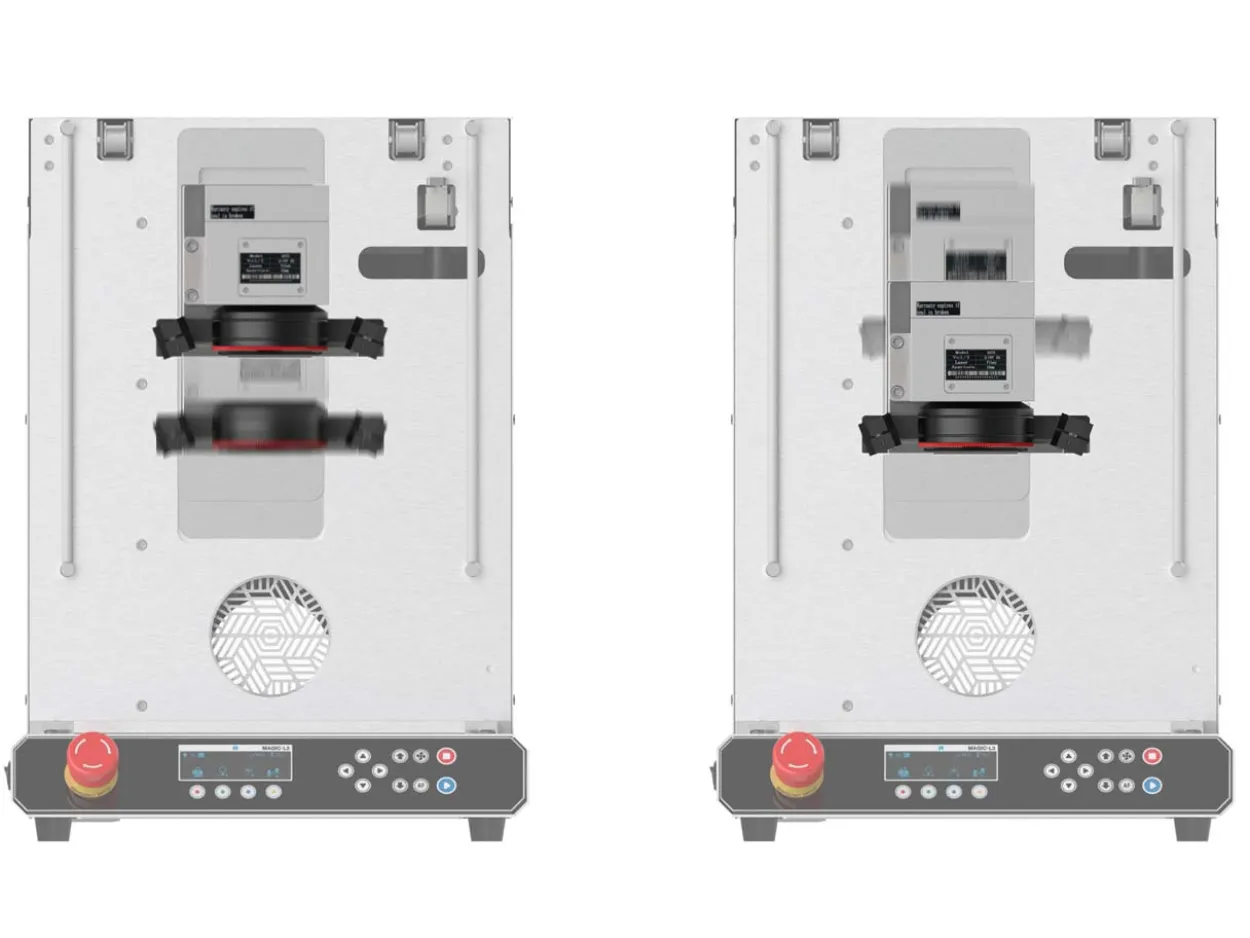

The MAGIC-L3 is fully automated and equipped with intelligent features that make operation fast and simple for users of all experience levels. Its built-in camera system allows real-time positioning and easy alignment of designs on flat, curved, or irregular surfaces, while the auto-focus system automatically detects material height for accurate and efficient marking.

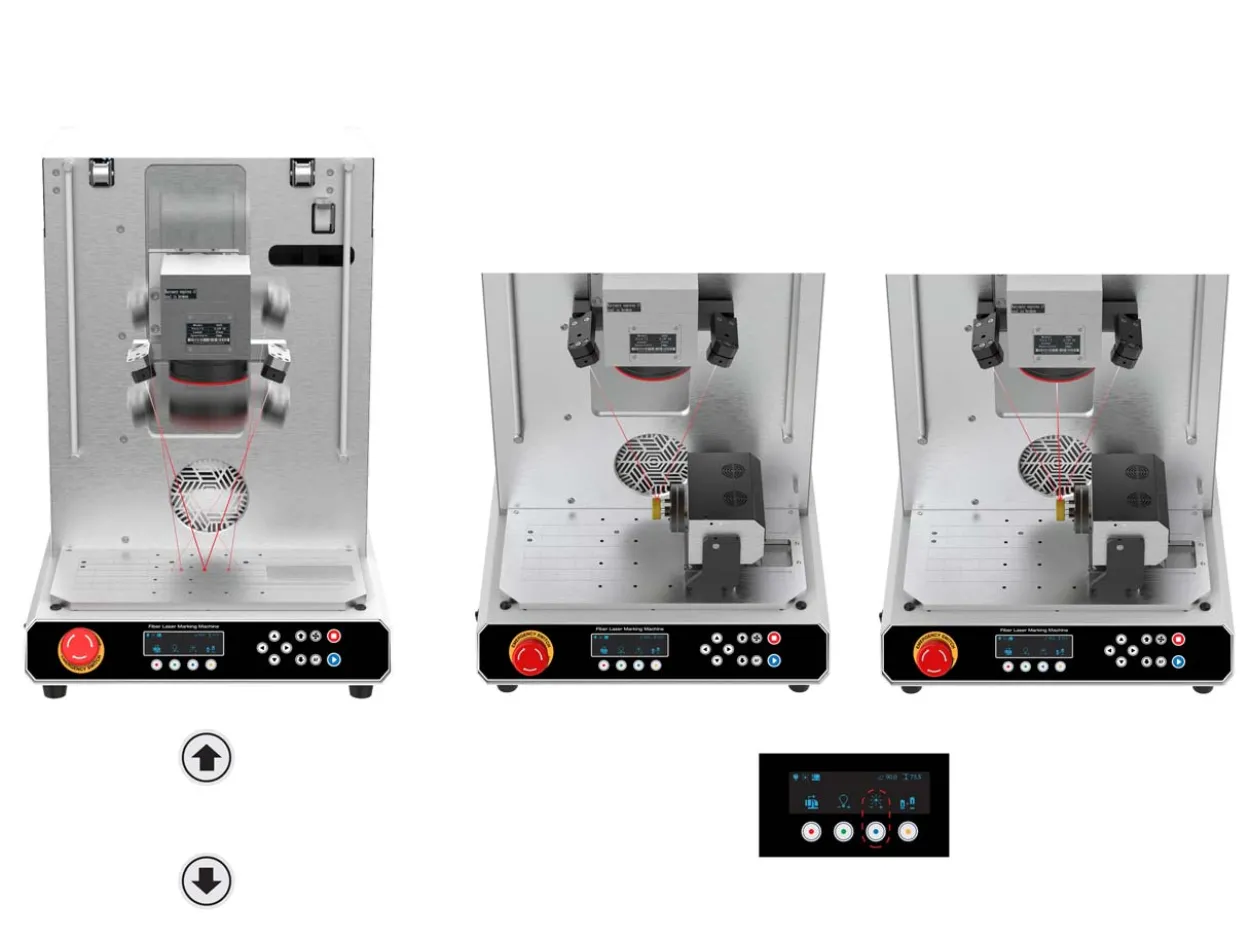

The machine also features a detachable rotary device with wireless docking technology, enabling seamless switching between flat surface marking and rotary marking for rings, bangles, and cylindrical items. Its auto-tilting rotary system automatically adjusts angles for faster and more accurate ring engraving without manual setup.

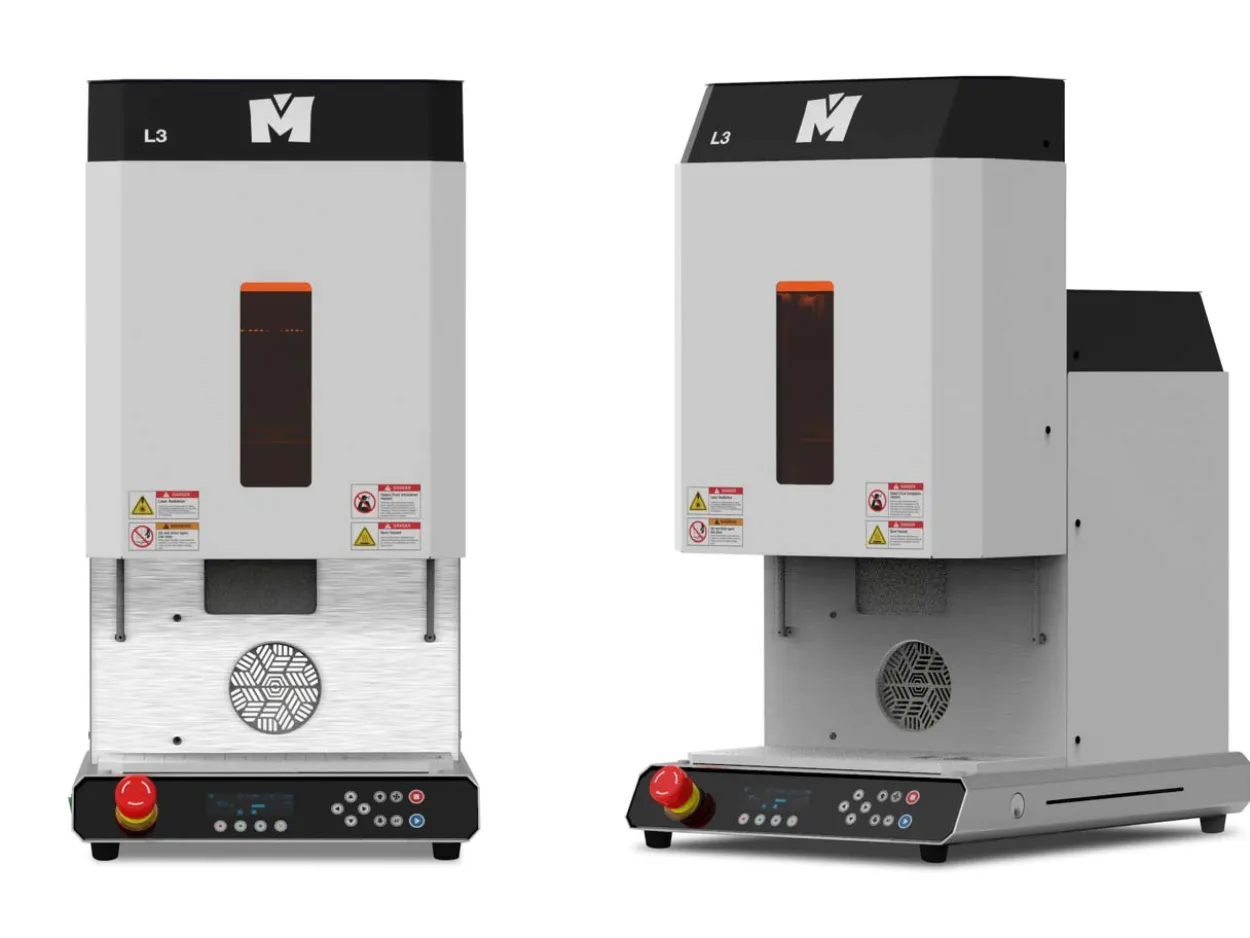

Designed for modern workspaces, the MAGIC-L3 combines elegant aesthetics with practical functionality. Its compact size, clean cable management, low-noise adaptive cooling system, and automatic safety door make it perfect for in-store use and customer-facing environments.

Safety is a key feature of the MAGIC-L3. The enclosed chamber structure protects users from laser exposure, dust, and fumes, while the Class 1 laser safety design, double safety sensors, and automated dust collector system ensure a safe and comfortable working environment.

The included MagicEngrave software simplifies laser marking and cutting with an intuitive interface that allows users to create toolpaths, manage designs, and perform marking operations quickly and easily. The software is compatible with programs such as Illustrator, CorelDRAW, Photoshop, and AutoCAD, making it ideal for professional jewellery customization and production.

With its high-precision laser performance, intelligent automation, and elegant compact design, the MAGIC L3 Fiber Laser Marking Machine 30W is an ideal solution for jewellers seeking fast, accurate, and high-quality laser marking and cutting capabilities.

Available accessories for easy engraving or cutting of complicated jewellery products:

• Magic L3 Medal/Pendent clamp Centre Fixing Type () – Holds unique shape materials in place
• Magic L3 Medal/Pendent clamp () – Holds unique shape materials in place
• Magic L3 Auto Tilt Rotary clamp () – Holds rings in place
• Magic L3 Honeycomb table () – Holds a thin plate in place for the cutting process
• Magic L3 L-type clamp () – Holds a material with slanted surface
• Magic L3 Anti-curling clamp () – Holds a thin plate in place for the cutting process

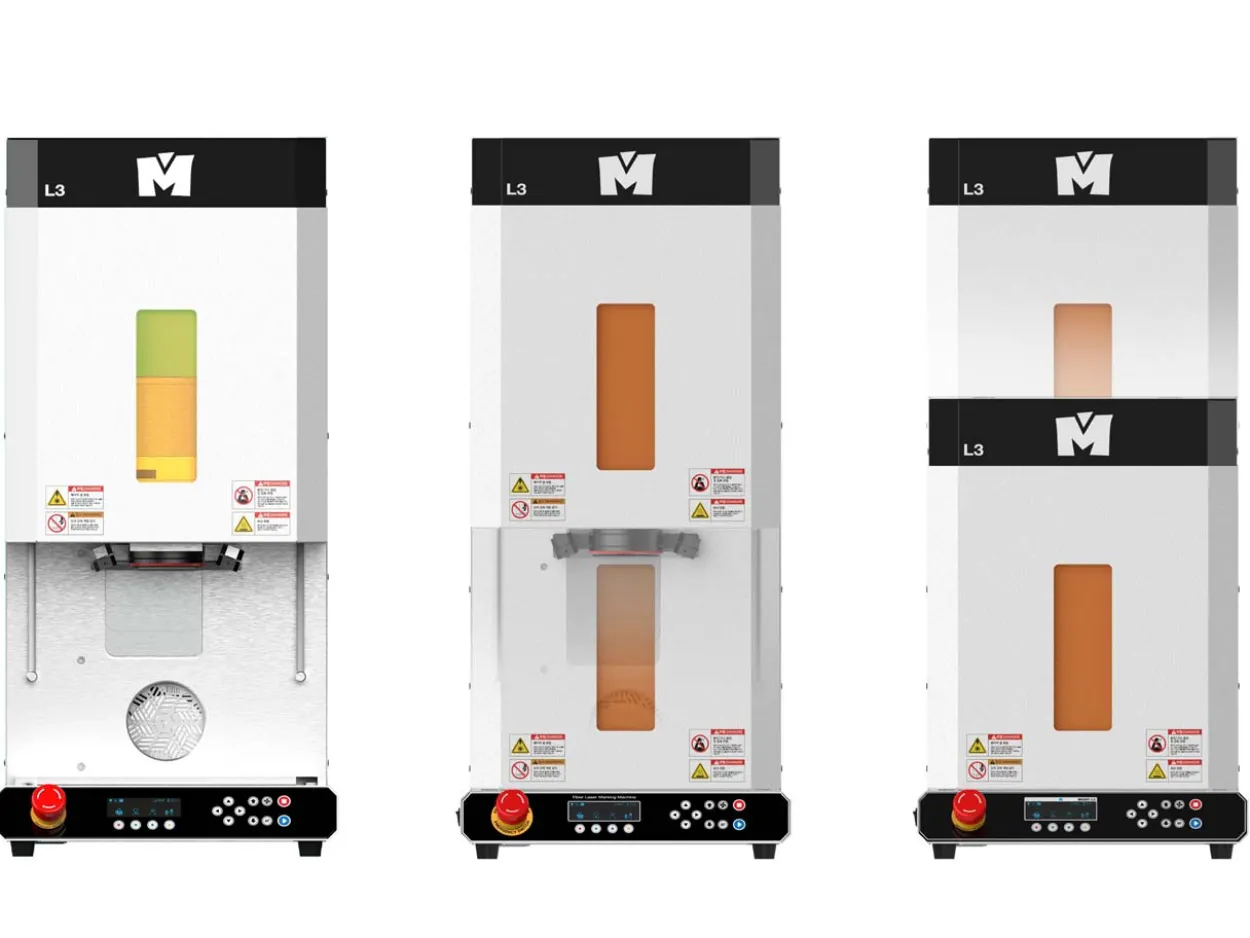

This unit features a automated safety door to ensure users are always protected against laser beams, dust and fumes that can be produced by the machine.

The door has a maximum opening height of 266mm (10.4”).

Safety sensors detect the status of the laser machine and protect users from unsafe situations.

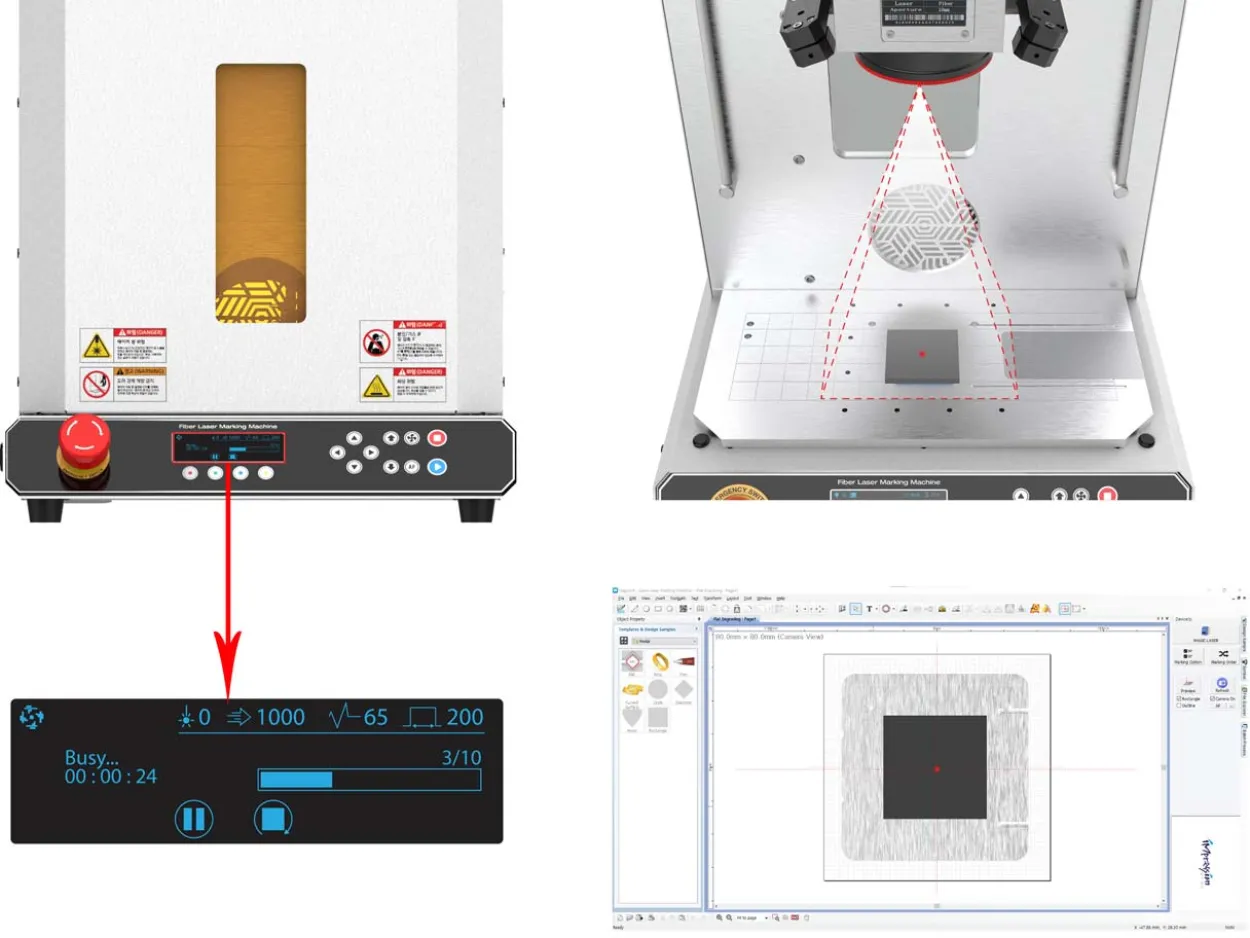

An LCD screen shows the machines progress and displays the remaining time.

The machine is noiseless and compact, allowing it to be used anywhere, making it perfect for a desktop or work surface within a shop or studio.

The L3 laser marking machine can engrave on a maximum working area of 112mm W x 112mm L x 100mm H and cut up to 1mm thick material.

Please note – the L3 30W unit is primarily an engraving machine and although it can cut, this will be performed slower due to the lower laser power. For faster cutting and engraving please seeand 997 L100.

The output beam diameter measures 7mm. The chamber of the unit measures 350 mm W x 100 mm H x 170 mm D.

To ensure that the laser remains accurately calibrated, it is important to avoid excessive movement or repositioning of the machine.

Additional features:

• Batch operation with various marking and cutting options
• Positioning of the engraving via an integrated camera with auto-focus with a maximum area of 80 x 80 mm
• Batch engraving on materials with multi-level heights
• Engraving on curved materials
• Letter-by-letter engraving for faster performance
• Easily accessed repeat button to trigger the same operation conveniently

Software is supplied with the Magic L3 Machine, allowing you to engrave text in various fonts and characters, patterns, symbols, shapes, logos and even photographs. It is also fully compatible with Microsoft Office and designs can be easily loaded from a USB drive.

Please note – dust blower is not supplied with the unit and can be purchased separately; please see Magic L3 Blower Set – () which will help pushing the dust out of the extension hose and will help you cover a larger area.

An extraction unit is advised when using the L3 machines. It is the customers responsibility to carry out risk assessments to ensure a safe working environment. For extraction unit please see .

The L3 laser machine is supplied with:

• MagicEngrave software
• Power cable
• USB cable

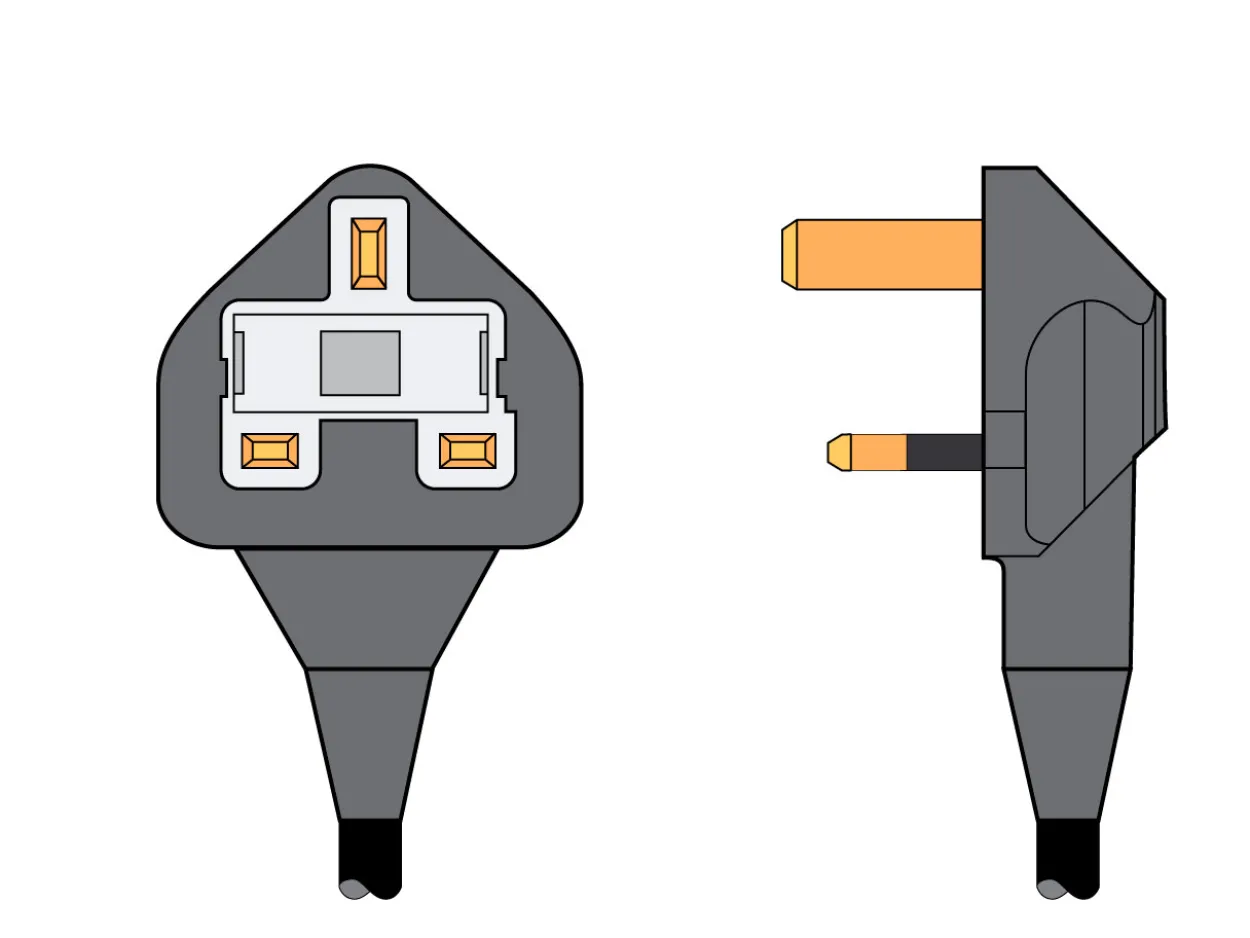

• 3 pin UK plug
• Instruction manual

To ensure the long life of the camera and to prevent burnout, please avoid prolonged and excessive use. Wipe lens periodically with a clean micro fibre cloth, metal debris build up could heat and crack the lens.

The machine is supplied with 2 year warranty and only 1 year warranty for the laser.

Demonstrations of this product can be performed in-store, or virtually on request.Book a Demo Here.

Technical information and after-sales support are both available.

For more information on technical support or to request a demonstration, please call 0345 100 1122.
