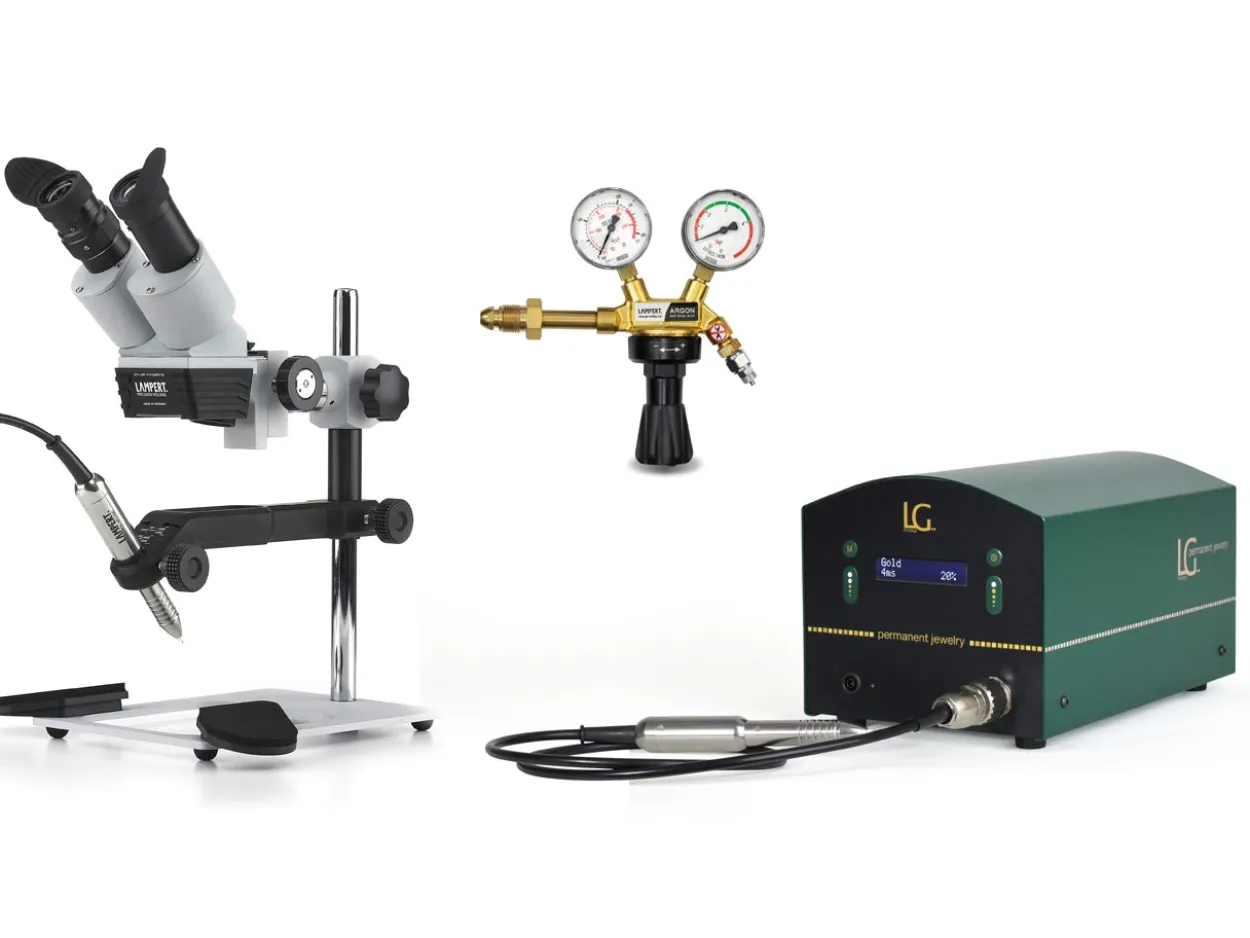

LG Findings Permanent Jewellery TIG Welder, Welding Microscope Sm 6 And PUK Flow Regulator UK Kit

Description

This PUK laser welding system, ideal for permanent jewellery fixation and precise welding of broken chains. It features three welding programs for gold, silver, and universal materials. The system includes a welding microscope with 10x magnification for enhanced precision, along with a PUK flow regulator for accurate gas flow control. It is suitable for both beginners and professionals.

Lg-Findings TIG welder:

The LG-Findings TIG Welder is engineered to deliver exceptional performance and precision, designed by jewellers for jewellers.

It offers three preset welding programmes (gold, silver, and universal), each rigorously tested on various metals and conditions common within the jewellery industry.

Whether you’re a beginner or an experienced professional, the intuitive interface ensures smooth navigation, easy parameter selection, and the production of clean, precise, and durable welds.

Capable of welding a wide range of metals – including gold, silver, platinum, and stainless steel – it provides unmatched precision and accuracy. The welder is also compatible with titanium, nickel, and tin alloys, making it versatile for all jewellery-related applications.

The LG Findings Welder has been designed to be used for welding material thicknesses of approx. 0.25 up to 0.7mm

Since the pulse duration of the welds can be adjusted to as low as 3 milliseconds, the thermal impact will be minimal and easily controllable.

Please note – The welding process may cause discoloration of gemstones and delicate pieces due to the thermal impact during work.

How it works:

• TIG (Tungsten Inert Gas) welding utilises a tungsten electrode to create an arc that melts and fuses metals. A shielding gas, such as argon, prevents oxygen contamination, ensuring strong, clean welds. If you need to pause, simply move the workpiece away from the electrode tip.

What is included with the welder:

• Handpiece
• 2 x 0.6mm electrodes (Wla)
• Collets for electrodes 0.8/1.0mm
• Diamond grinding wheel
• Contact clamp
• Connecting cable (2.5mm)
• 3m gas hose

The stainless steel handpiece ensures precise weld point placement while maintaining a comfortable grip.

Additionally, the included crocodile clip and 2.5mm cable securely hold the jewellery piece in position for precision welding.

Dimensions of the welder:

• Length: 276mm
• Width: 168mm
• Height: 150mm
• Weight: 6.55kg
• Power Supply: 230V
• Power Consumption: 300W
• Welding Voltage: 25-43 V
• Shielding Gas: Argon

Please note – This welder comes with 3 year warranty, excluding the handpiece.

Welding microscope SM 6:

The SM6 Microscope features a high-precision lens with 10x magnification, 20mm diameter field of view, and an LCD eye protection system. This protects against UV and IR radiation generated when welding.

It also comes with height and tilt adjustment, as well as hand rests to minimise fatigue, ensuring optimal comfort and ease whilst working.

Other features of the SM6 Microscope include:

• Powerful LED lighting in the head of the microscope
• 4 adjustable brightness levels to provide optimal illumination of the area being worked upon
• Suitable for use as an observation microscope

Technical Data – Microscope

• Magnification: 10x
• Field of view diameter: 20mm
• Working distance: 145mm
• Lighting: LED 3w/800 mA

Technical Data – Eye Protection System

• LCD brightness level: DIN 3
• LCD darkness level: DIN 11
• Switching time: < 50ms
• UV protection: > UV11
• IR protection: > IR11

PUK flow regulator:

This PUK flow regulator is used to control the flow of argon gas from a compressed gas cylinder to the PUK 6 pulse arc welding machine.

Argon is commonly used as a shielding gas during welding to protect the weld area from contamination and oxidation by the surrounding air.

Featuring a dual gauge display, the PUK flow regulator ensures a dependable weld as it enables precise control of the argon gas flow rate, which should be set at 2 litres per minute.

Technical Data:

• Gas: Argon 4.6
• Maximum inlet pressure: 230 bar
• Adjustment range: 0- 6l/m
