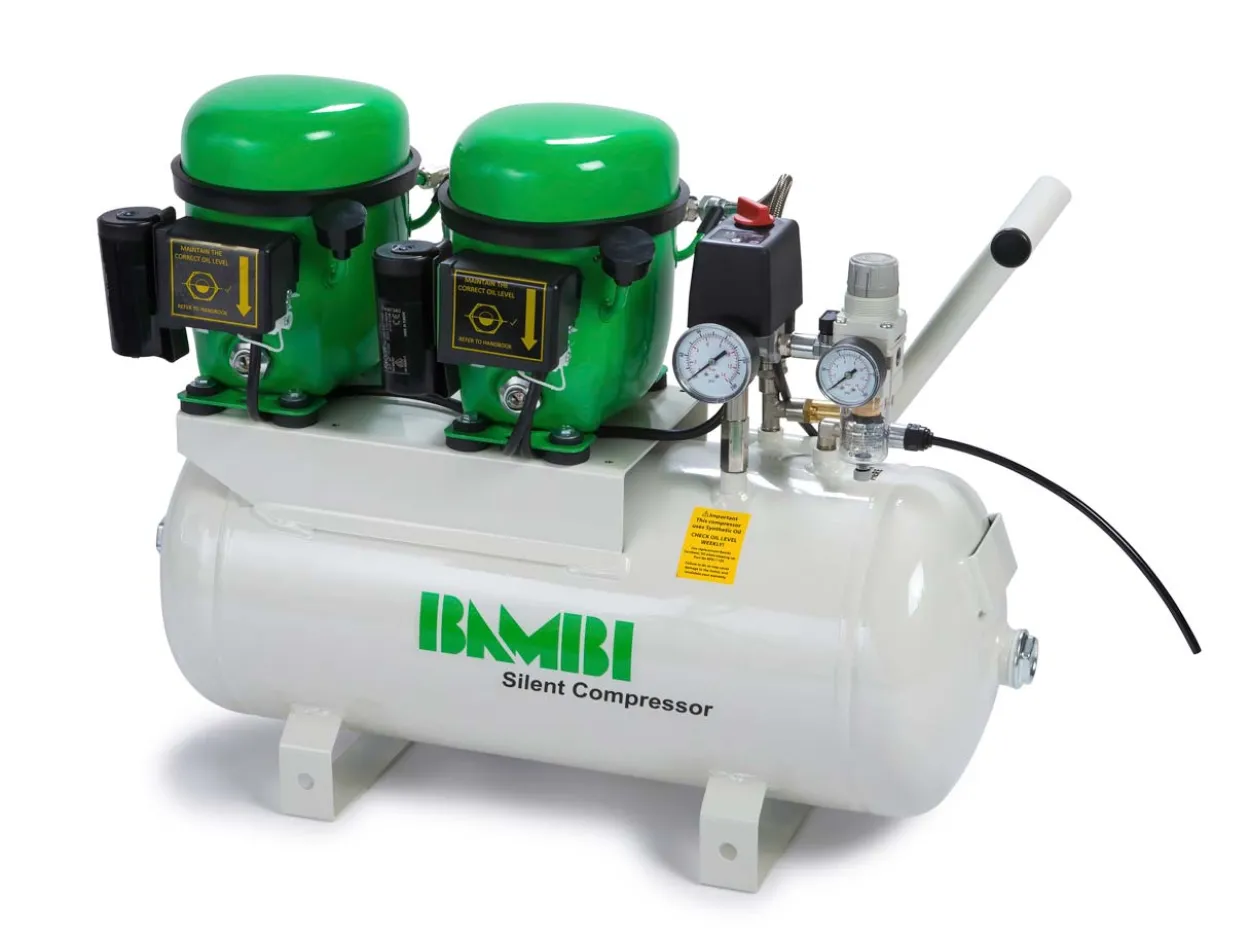

Bambi BB24D 1.0hp, 8 Bar 24 Litre Capacity Compressor

Description

The Bambi BB24D Air Compressor provides a virtually noiseless and completely automatic machine suited for powering other equipment where compressed air is needed, silently and with minimal vibration.

Manufactured in the UK, Bambi products are built on a tradition of quality and reliability. Bambi are dedicated to the manufacture of innovative and meticulously engineered products and remain at the forefront of the industry specialising in compressed air systems.

The BB24D offers a 24 litre receiver tank with a factory sealed, for life, pump unit which is designed to increase convenience and enhance reliability. It has minimal oil consumption and is supplied with high performance, fully synthetic oil which ensures a long life and minimal maintenance. It has a maximum 8 bar pressure gauge, which is adjustable and uses 120 PSI.

It boasts just 40dB(A) of sound pollution with almost no vibration when operating which means it can be placed anywhere in the workshop without causing any unwanted noise and is supplied complete with fittings and tube. For added convenience, wheels are available for attaching to the unit offering full manoeuvrability around your workshop ().

Ideal for operating the GRS GraverSmith (998 G238), GraverMax G8 (998 G239) and GraverMach AT (998 G237) air systems.

Each Bambi budget air compressor features:

• Silent running 40dB(A)
• Automatic direct drive operation
• Internally coated receiver which prevents corrosion

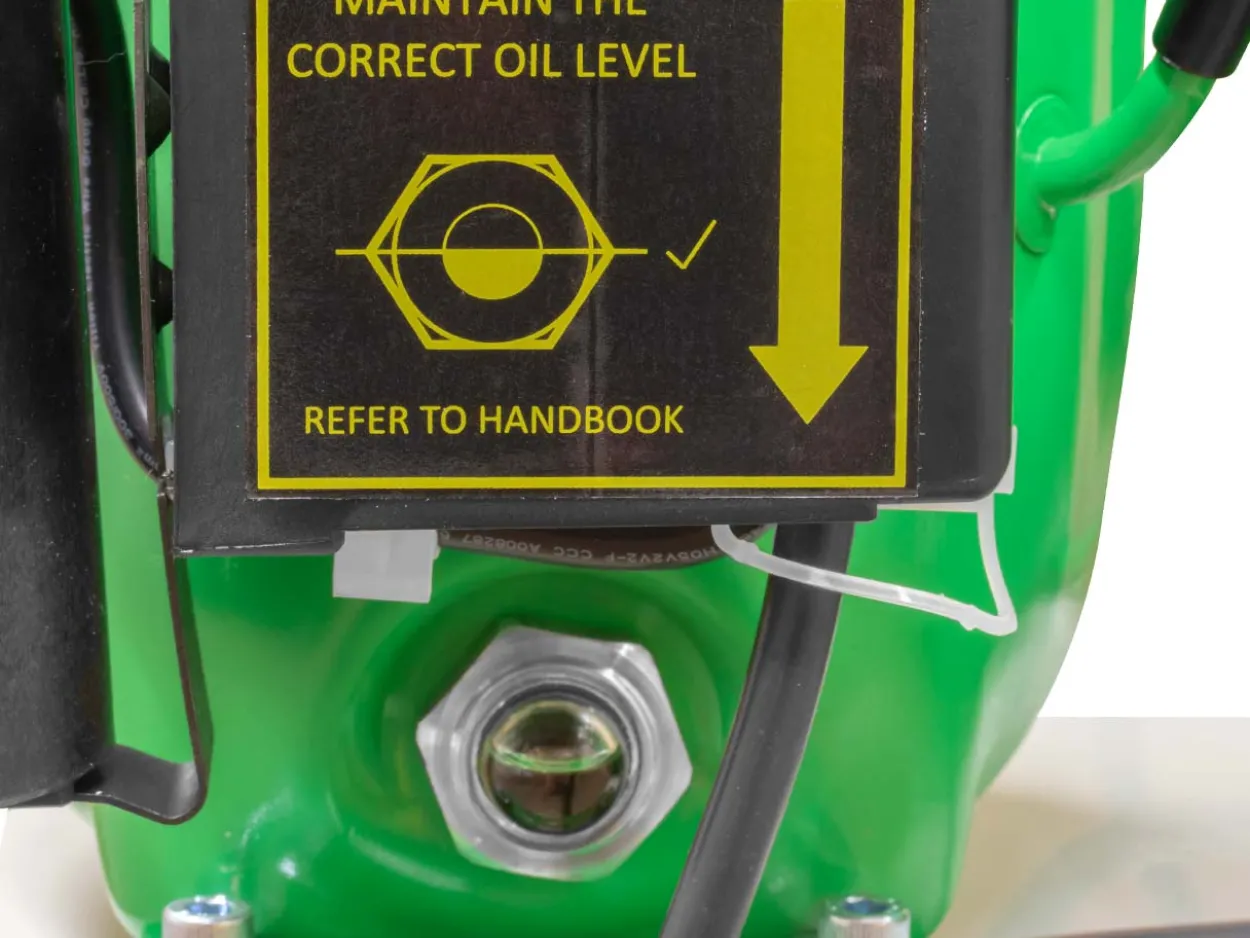

• Easy-to-view oil level sight glass to ensure your machine is well lubricated

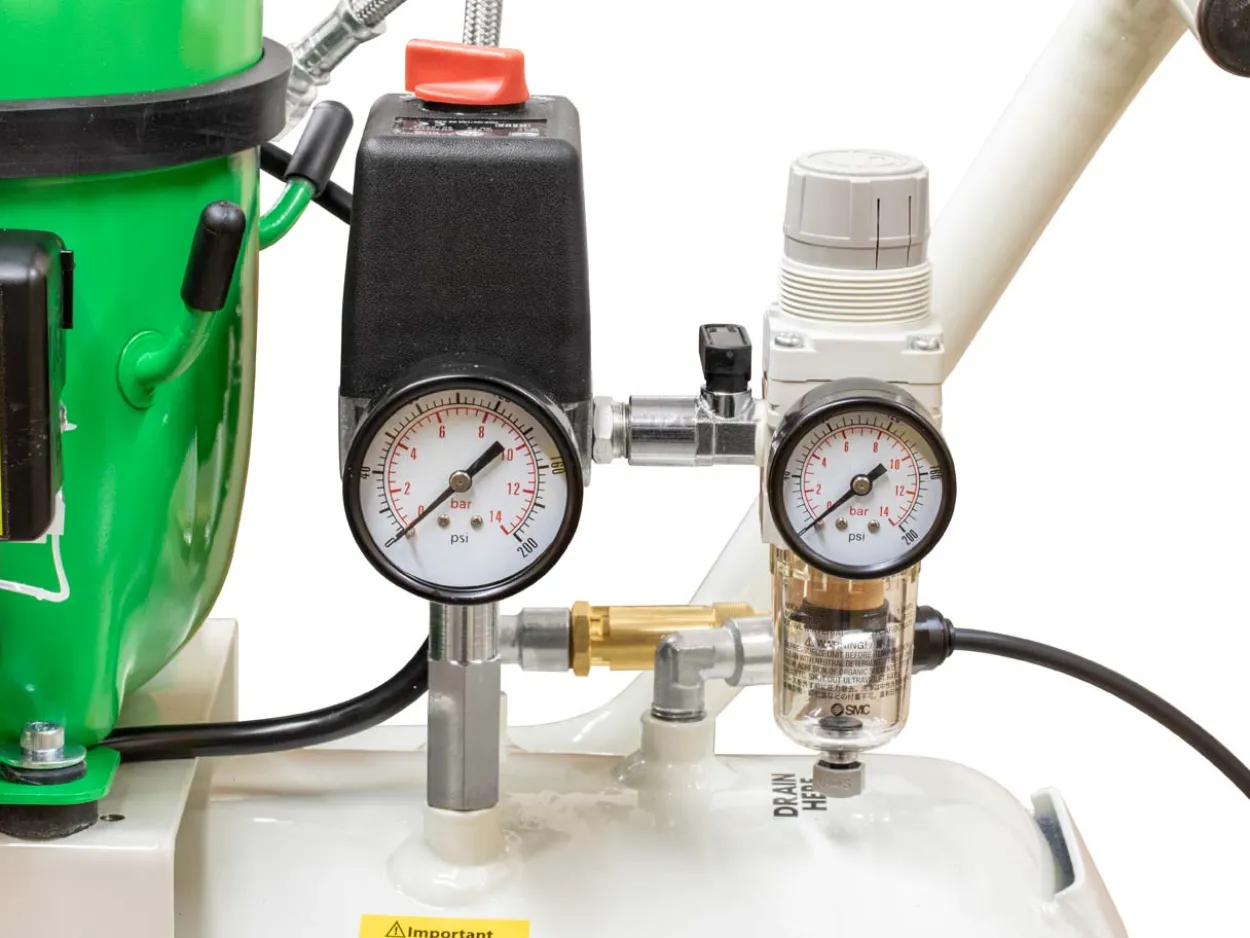

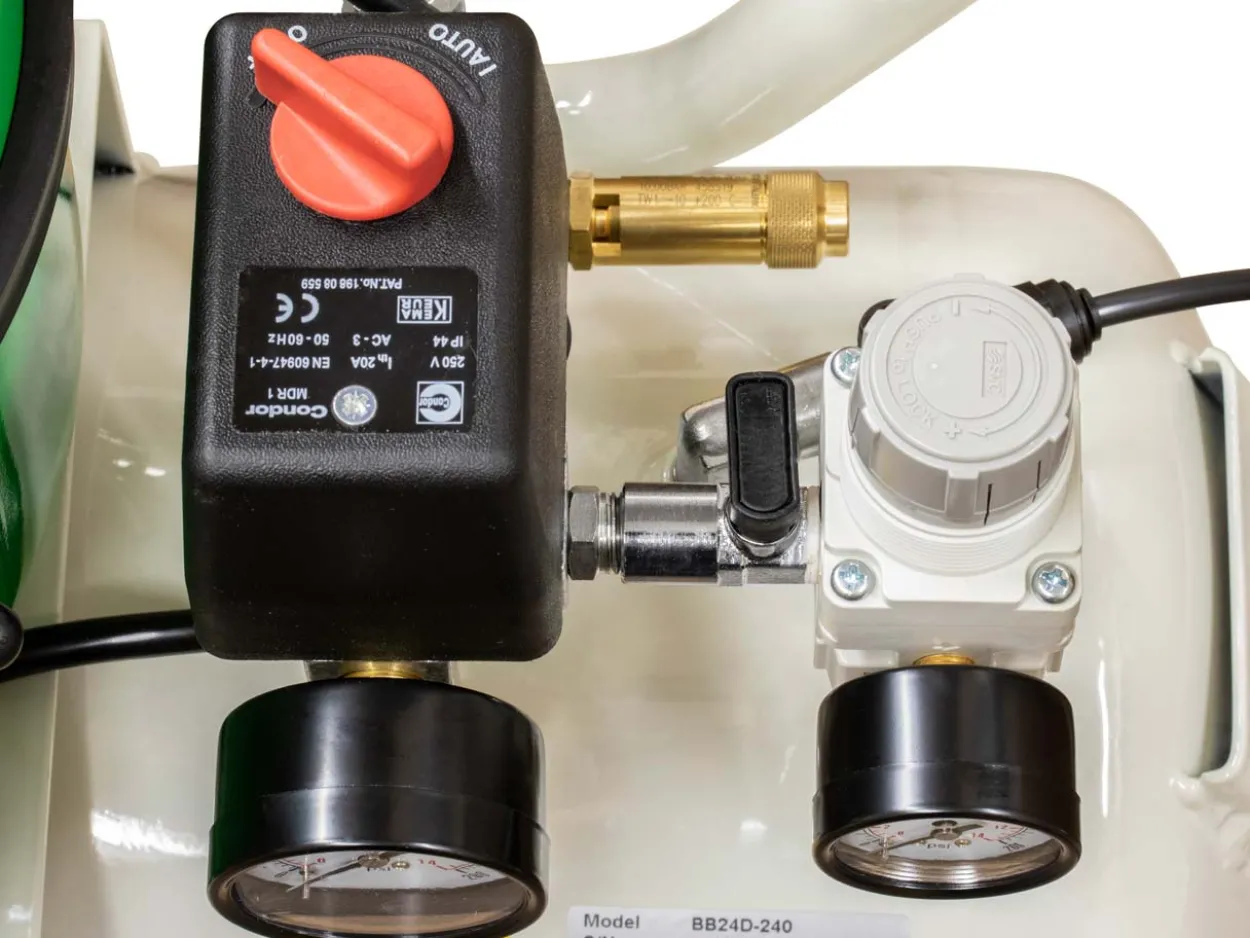

• Premium Condor pressure switch

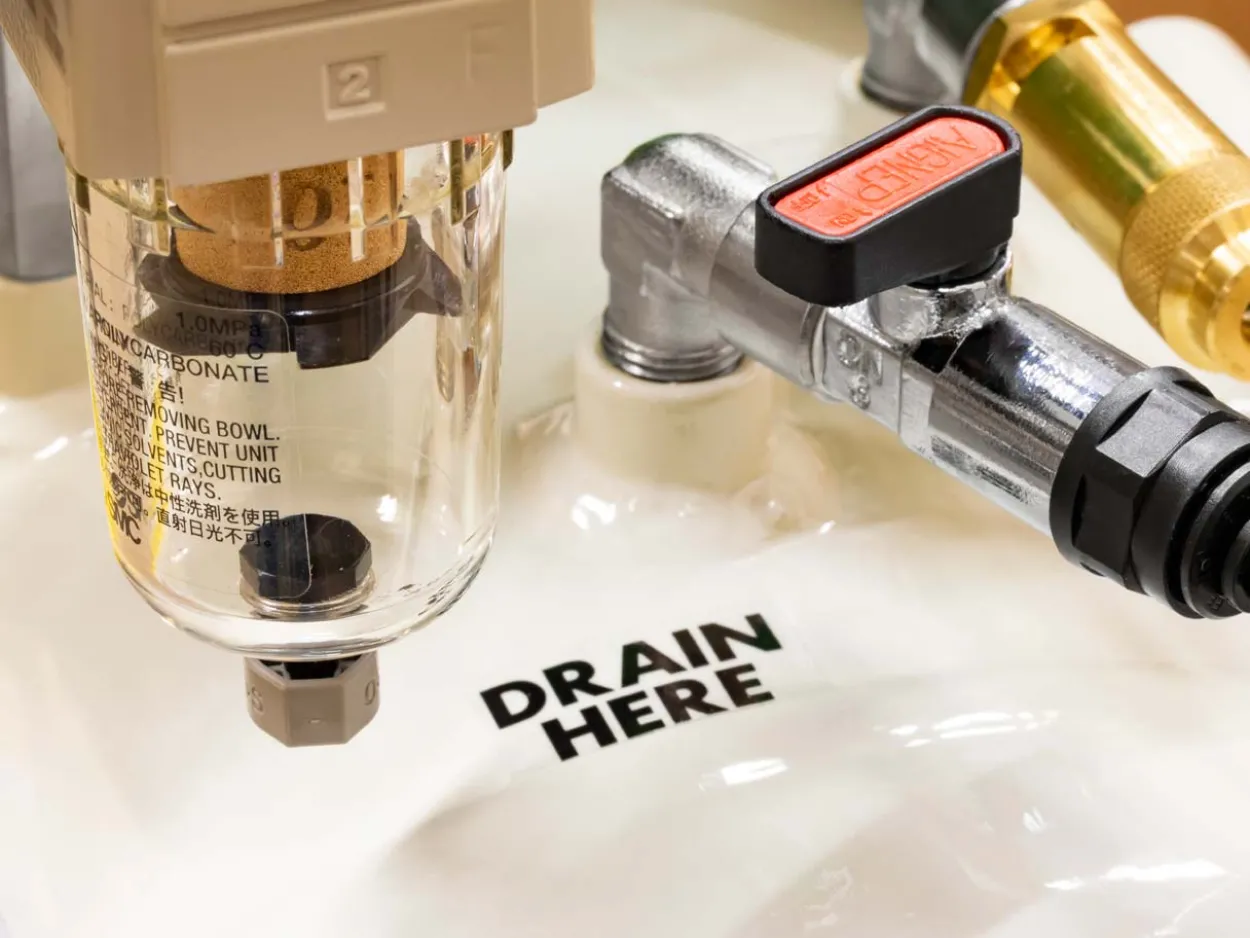

• 10 micron outlet filter

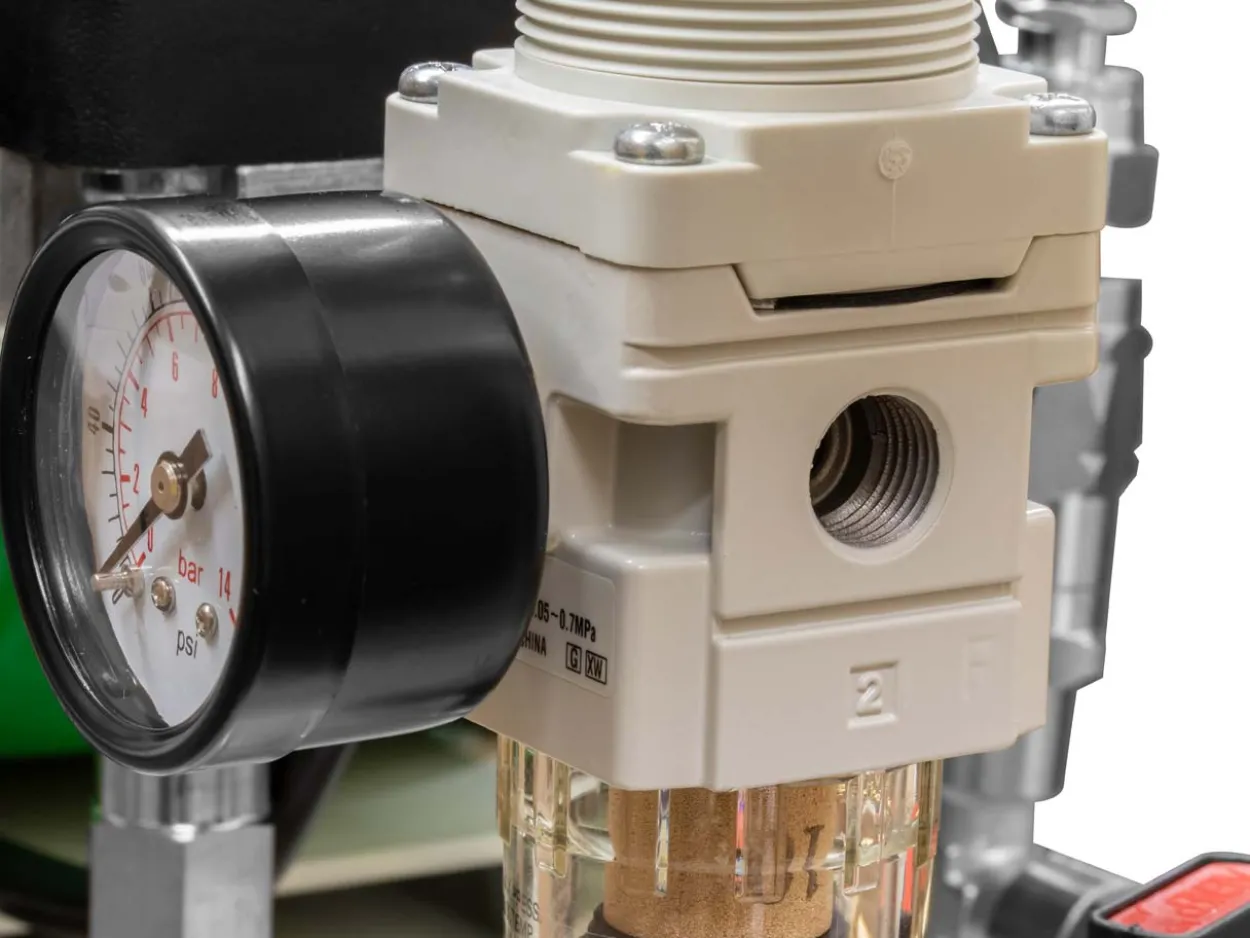

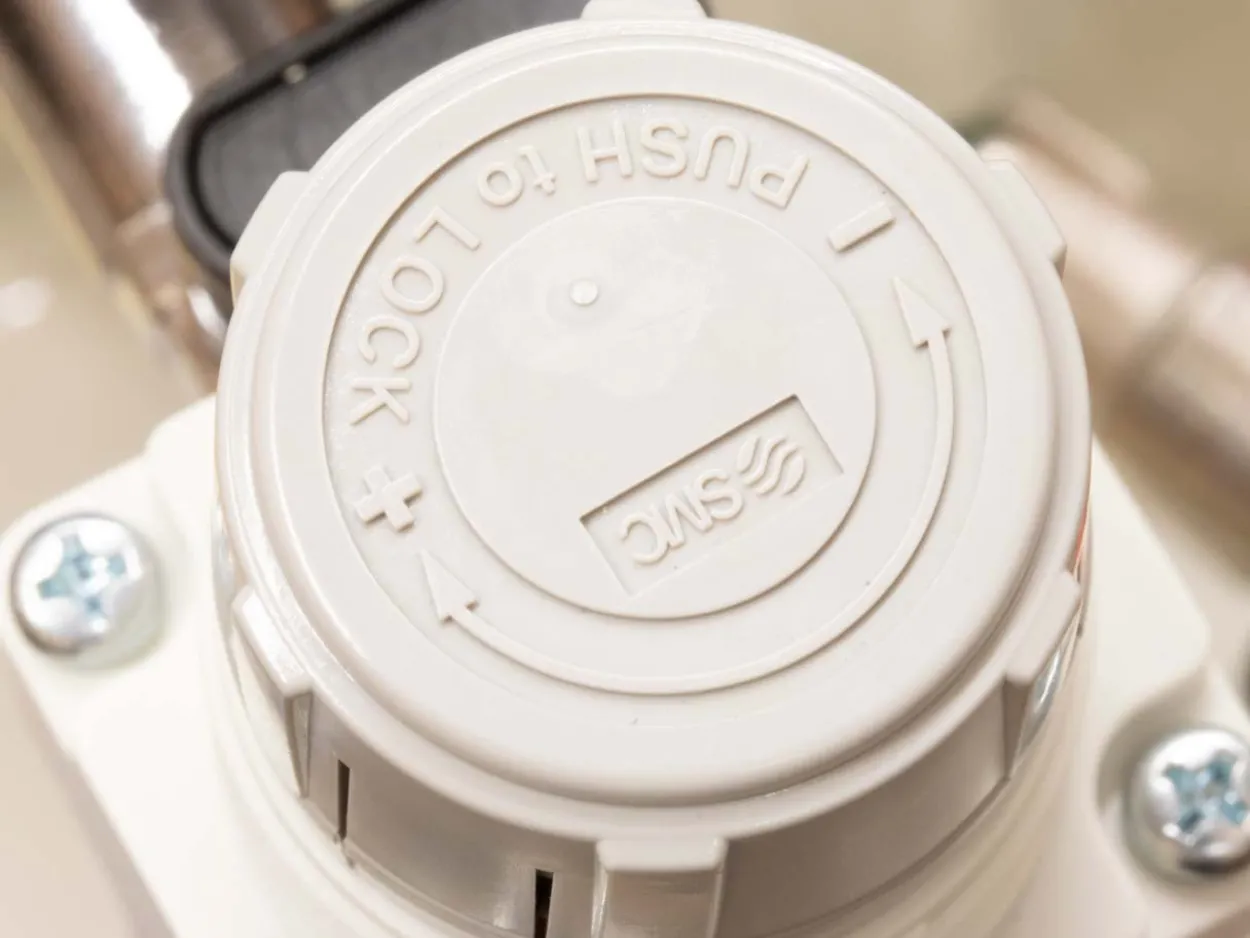

• Adjustable pressure regulator

The BB24D features:

• Maximum free air delivery (cfm): 2.3
• Maximum free air delivery (Litres/min): 100
• Maximum pressure (psi): 120
• Maximum 8 bar pressure
• Horse power: 1.0
• Air receiver (Litres): 24
• 1/4″ BSP female outlet
• 2 x bottles of synthetic oil ()
• 2 x pouring funnels

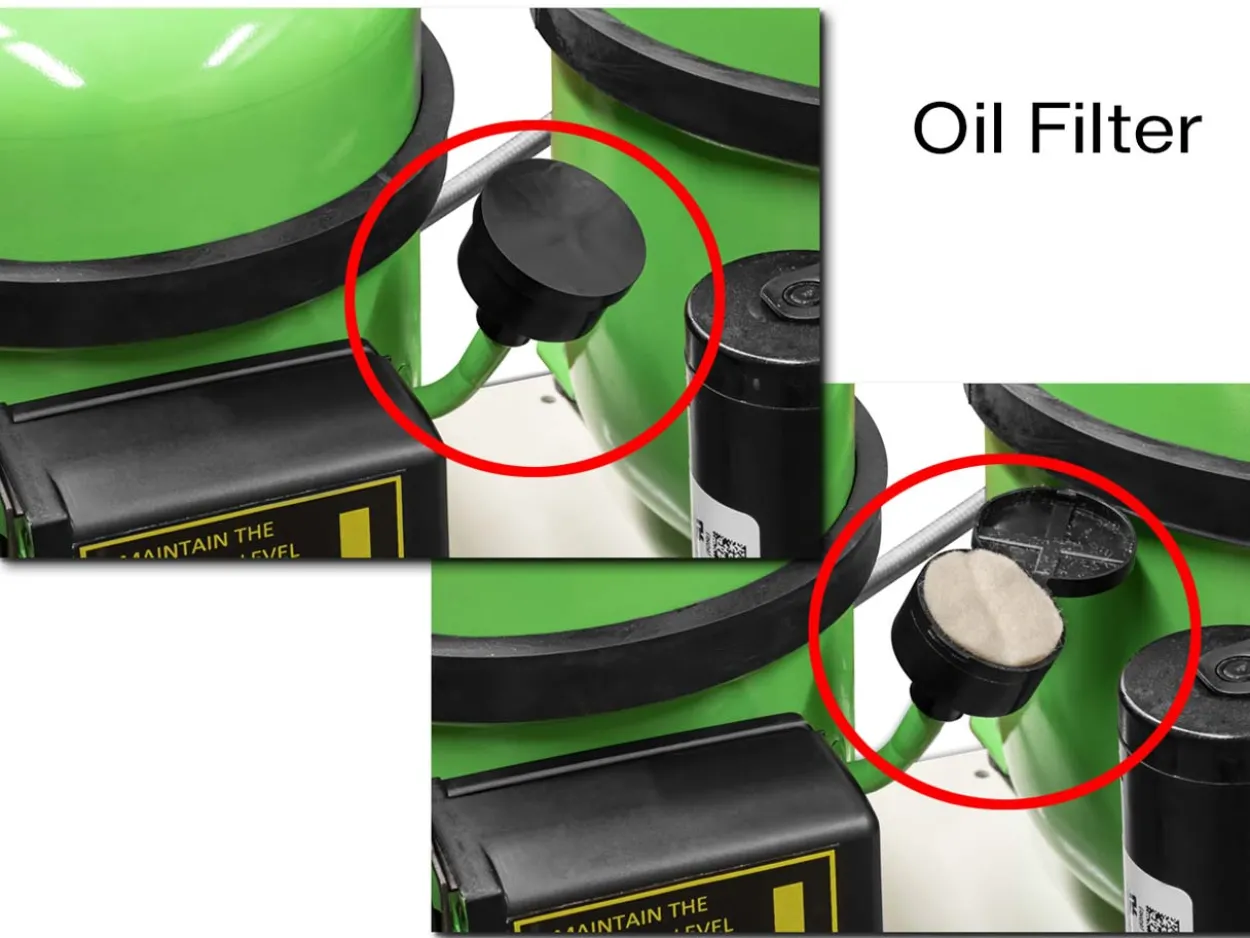

• 2 x Inlet filters ()

This product requires the use of the GRS Coalescing Air Filter and Oil Removal Kit () to ensure a well maintained and operational unit.

This product is provided with a 3 year guarantee on the tank and 1 year guarantee on the pump.

Supplied with a 3 pin plug and CE marked.

The oil does not contain any hazardous components.

This unit requires 2 metres of tubing () and a push fitting ()

---

Catalogue Page Number p726

---
