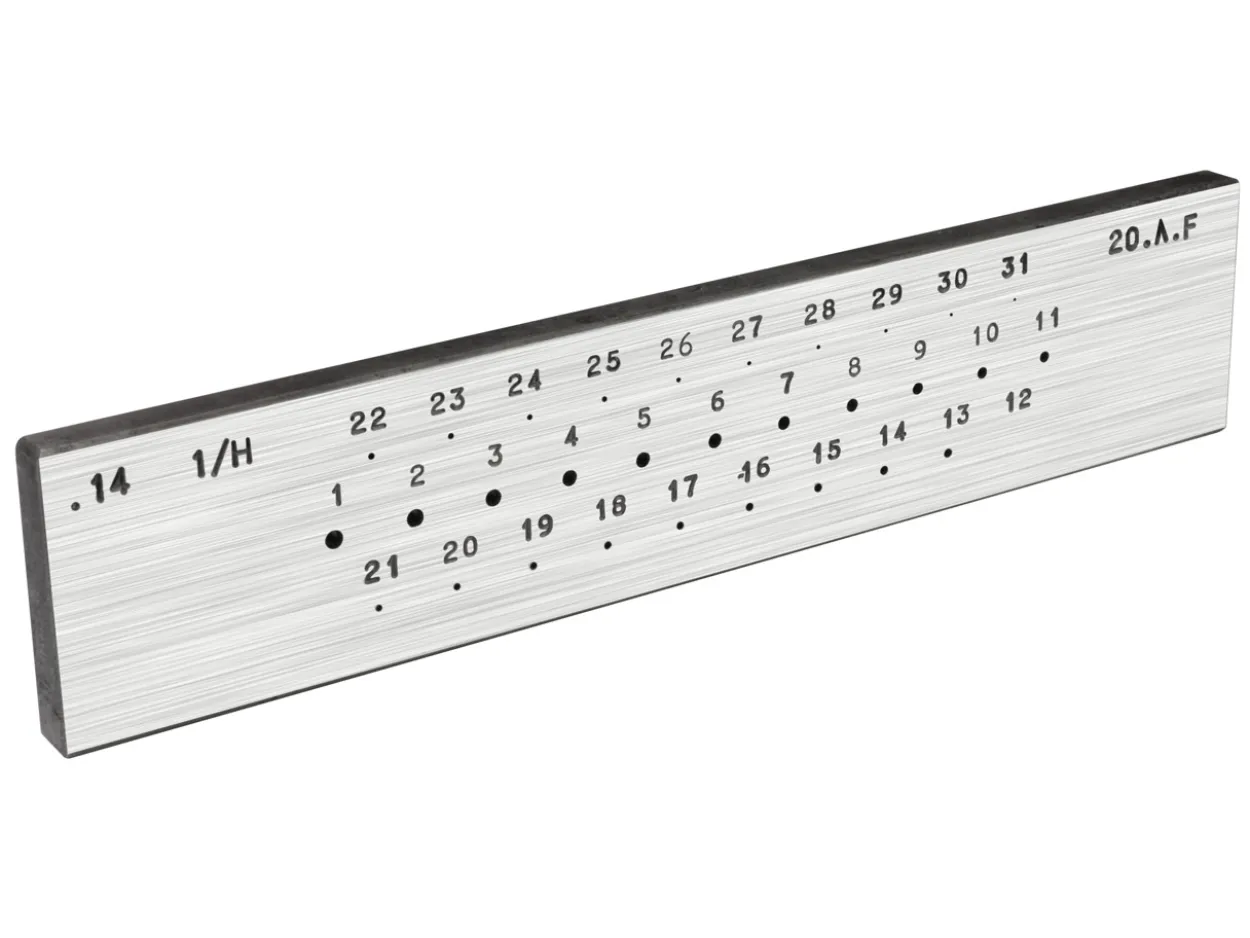

Steel Round Drawplate, 0.3mm – 2.0mm, 31 Hole

Description

This Drawplate is to be used in conjunction with a drawbench however can be secured in a vice, and is used for reducing or reshaping wire.

Made from steel, this plate features 31 round holes and has the ability to reduce wire from 0.30mm to 2.0mm diameter. Also suitable to be used for reshaping wire and creating tube or chenier from sheet metal.

It is important to ensure a sufficient point is created at the end of the wire or sheet so it can be pulled through the hole using drawtongs. After approximately every other draw, the metal should be annealed to regain malleability.

The holes included in this drawplate measure;

• 0.30mm, 0.32mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm, 0.55mm, 0.60mm, 0.65mm, 0.70mm, 0.75mm, 0.80mm, 0.85mm, 0.90mm, 0.95mm
• 1.0mm, 1.05mm, 1.10mm, 1.15mm, 1.20mm, 1.25mm, 1.30mm, 1.35mm, 1.40mm, 1.45mm, 1.50mm, 1.60mm, 1.70mm, 1.80mm, 1.90mm, 2.00mm

Other sizes of round drawplates are available;

• 20 hole; 0.2mm – 0.6mm ()
• 30 hole; 0.5mm – 3.0mm ()
• 40 hole; 0.5mm – 4.0mm ()
• 31 hole; 3.0mm – 6.0mm ()
• 30 hole; 5.0mm – 8.0mm ()
• 39 holes (tungsten); 0.26mm – 2.8mm (999 CJU)

Other shapes are available;

• Oval, 30 hole; 0.6mm – 2.0mm ()
• Square, 31 hole; 0.5mm – 3.0mm ()

Suitable to be used with the following machinery;

• Durston Drawbench 1400mm ()
• Durston Beginner Drawbench 1100mm ()
• Durston Table Top Draw Bench Entry Model ()
• Value Drawtongs (999 327)
• German Black Drawtongs (999 328)

It is advised to keep this product oiled to avoid rusting.

Catalogue Page Number p564
