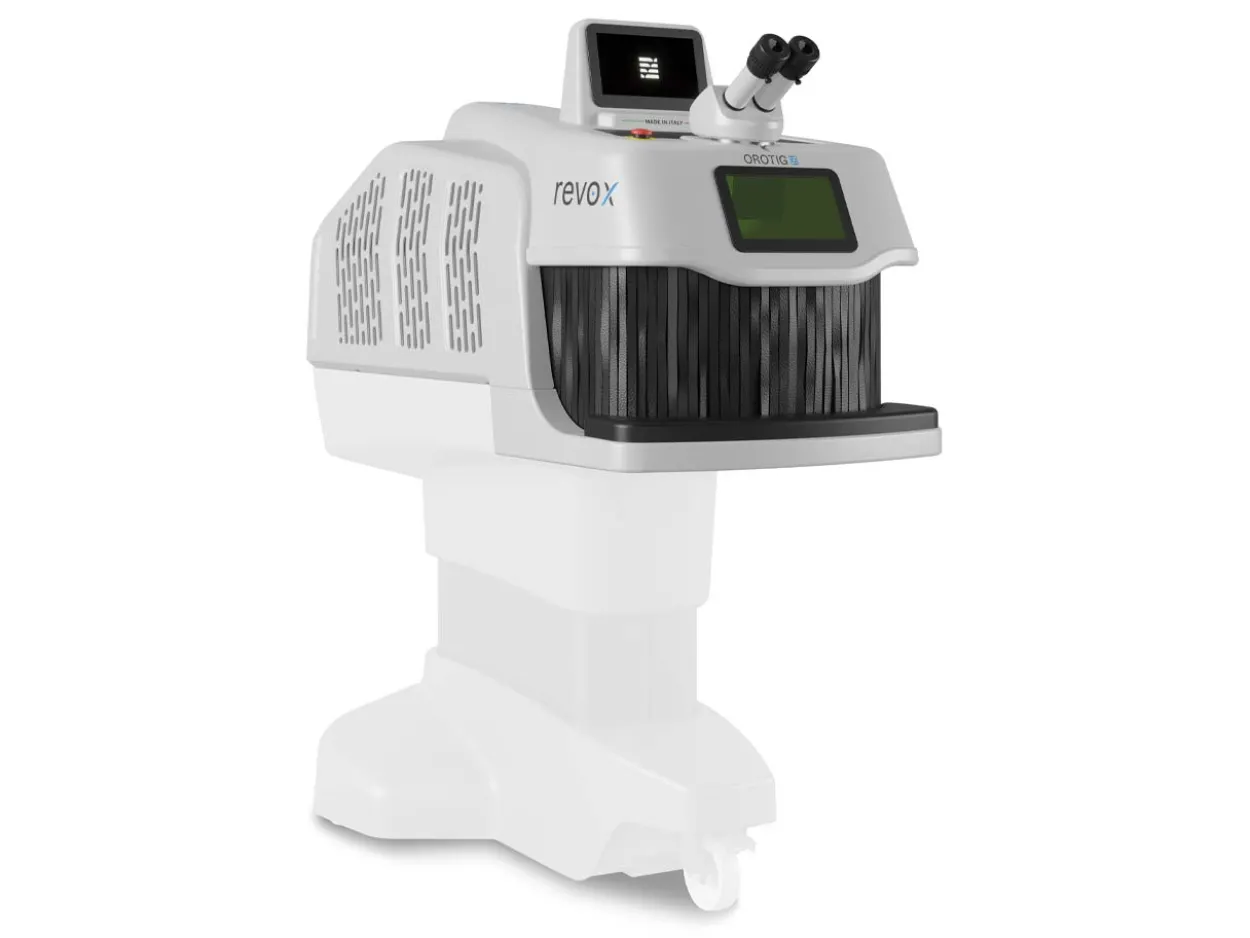

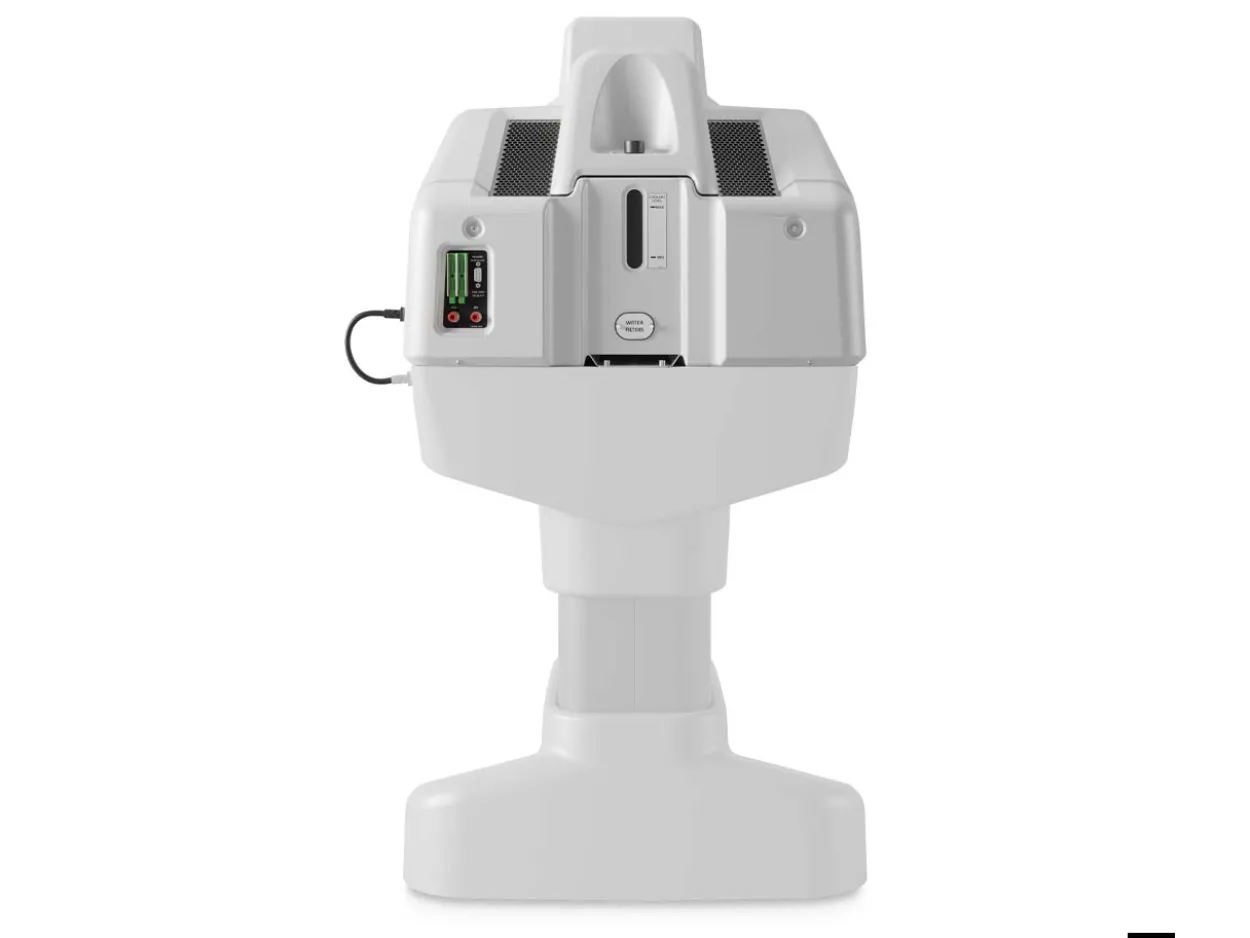

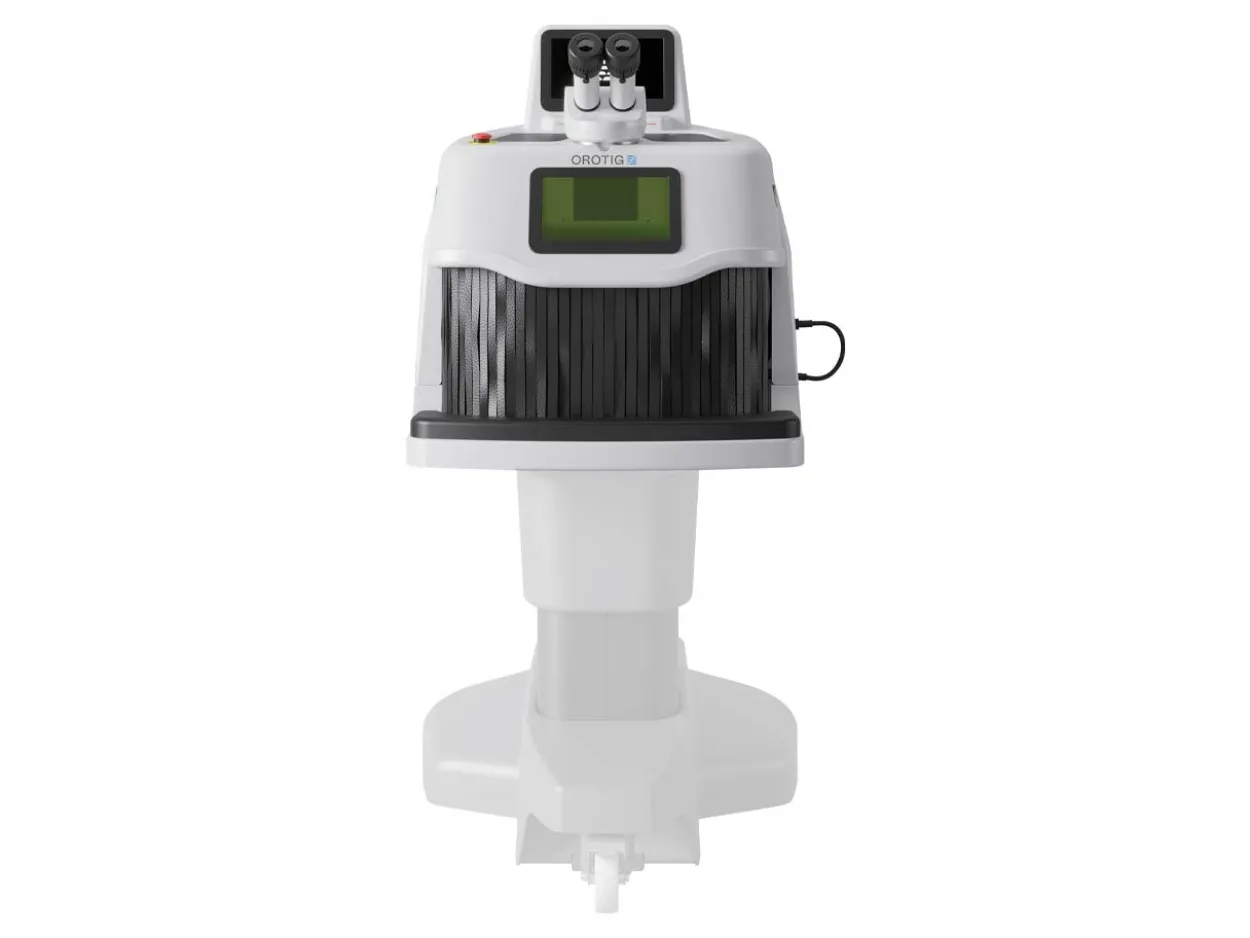

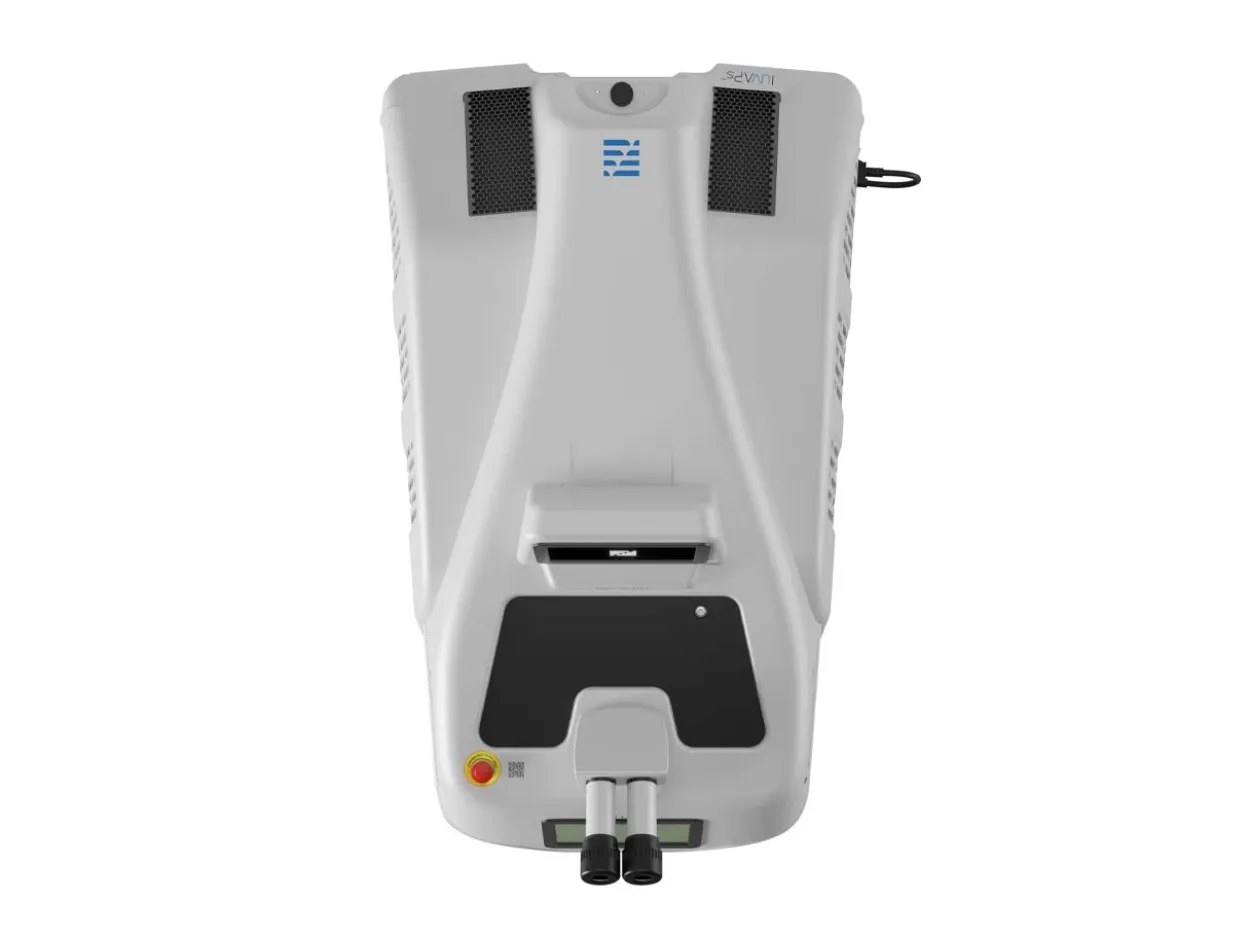

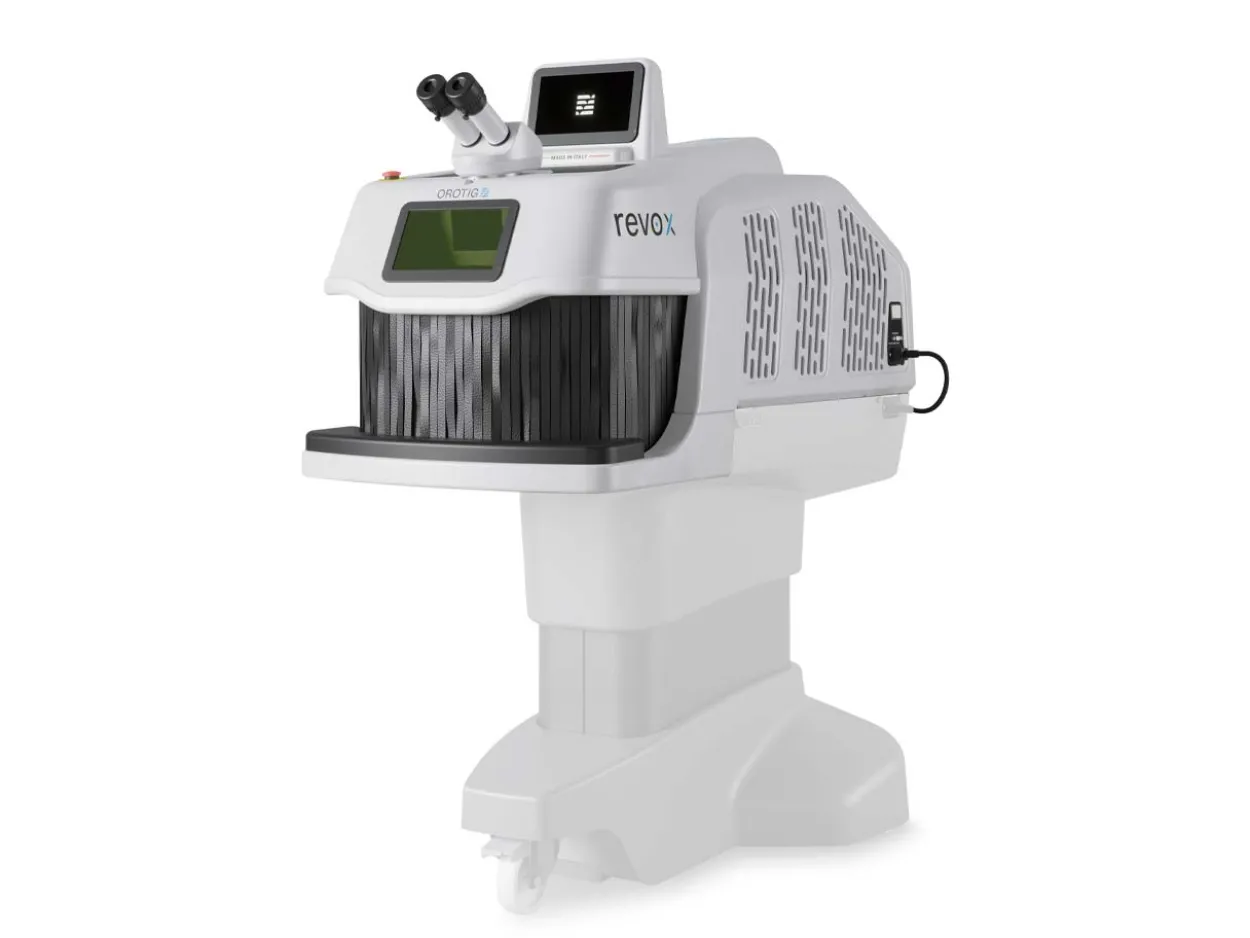

Orotig Revo X Plus

Description

For the past 30 years, Orotig have designed and created state-of-the-art technological products of exceptional quality. They have continued to evolve, introducing compact lasers for use in the jewellery industry.

The REVO X offers a range of advanced features designed for enhanced productivity and precision, including a large welding chamber with a spacious inspection window, maximum ergonomics, and an adjustable LED lighting system.

It provides separate management of argon and compressed air, an interactive touchscreen with a video player, and parameter control within the welding chamber.

Additionally, it is equipped with a coaxial camera for live viewing and recording, a Leica 10x microscope, and the built-in IUVAPST UV-C air purifier for constant sanitization. With connectivity for remote assistance and telemetry, a removable bottom for easy access to large workpieces, and a removable ergonomic armrest, this system supports up to 15 hours of continuous welding on demanding metals like silver and platinum.

The welding chamber has space for big pieces, such as plates and plaques. You can also remove the bottom of the welding chamber, leaving only the armrest, or remove the bottom and armrest, to move the machine over bigger pieces.

Welding chamber dimensions: Depth 241mm x Width 423mm x Height 125mm

The technical setup includes a Nd:YAG crystal, pulse power of 240J, and an 8-liter water cooling system with a double radiator for optimal cooling. Additionally, the kit includes a Leica 10x microscope, a USB pen drive, protective glasses, and various accessories to ensure seamless operation.

The REVO X Plus offers the following features:

• Large welding chamber
• Large inspection window
• Maximum ergonomics for higher productivity
• Adjustable LED lighting system
• Argon and compressed air managed separately
• Interactive touchscreen with video player
• Parameter control inside the welding chamber
• Coaxial camera for live view and recording function
• Leica 10x microscope
• IUVAPS system build-in UV-C air purifier
• Connectivity for remote assistance and telemetry
• Removable bottom part
• Removable ergonomic armrest
• Can be used on gold, silver, platinum, brass, stainless steel, titanium and white gold palladium.

The Leica 45x stereo microscope features 10x optical zoom and a right-eye crosshair for precise observation, while the IUVAPST sanitizing system ensures constant environmental sanitization by eliminating dust and pathogens.

Technical data:

• Crystal type – Nd:YAG @ 1064
• Pulse power – 240J
• Pulse duration – 25 ms
• Peak pulse power – 10.0 kW
• Average power – 120W
• Pulse frequency – 0-40 Hz
• Electrical – 230 VAC 10%, 1P + N + PE, 50/60 Hz, 2.2 kW
• Focal diameter – 0.1-2mm
• Command access – External with 7″ capacitive touch screen display, internal with rotary switch
• Cooling system – Forced air with double circuit, 8 l liquid and double radiator
• Weight – 75kg

Included in the kit:

• Replacement protective glasses
• Allen screws
• Air/Gas adapter pipe
• Black cone shaped pipe to delivery gas
• Gas conveyor terminal
• Stainless steel plate 40mm (L) x 30mm (W) with a thickness of 1.5 mm
• Protective glass slide
• LTS 2.5 and 3.0 hex wrenches
• Leica 10x Microscope
• Double-distilled water
• Funnel
• RL 3/8 – 4 FOX adapter/s for air and argon
• Focusing support plate
• USB pen drive
• Blue Rilsan pipe
• Power cable with a 3-pin plug
• Control pedal
• Protection glass slide and glass slide-holder flange spacer
• Conical flange (normally already mounted in the machine) and 4 1/8 cylindrical male straight fitting
• Water drain quick coupling with pipe
• Aisi 302 stainless steel wire
• Interlock display key wiring

The dimensions are as follow : Weight -75kg, H x 590mm, L x 974mm, and W x 600mm.

Please note : Stand is not included ().

Please note : This product comes with 2 year warranty.
