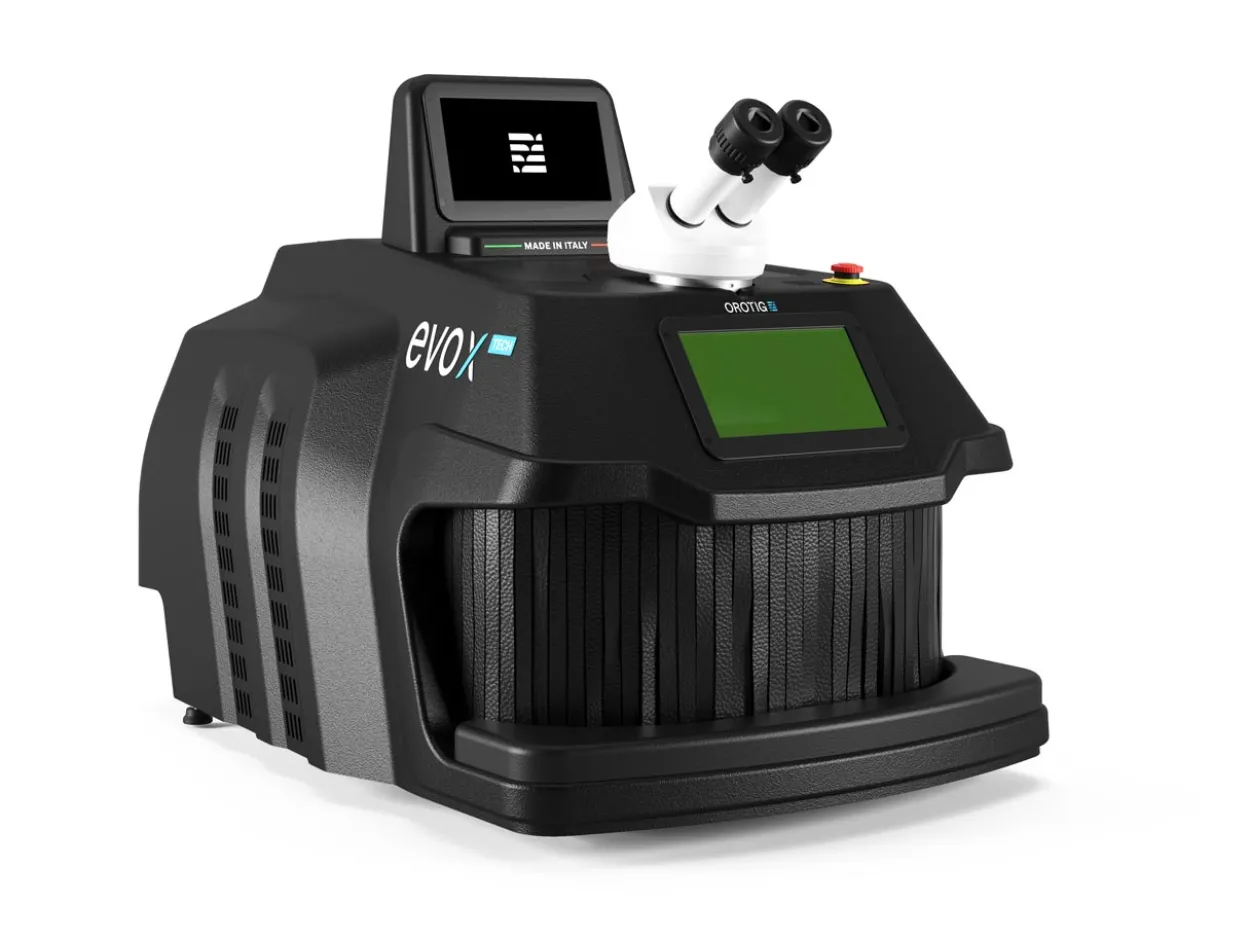

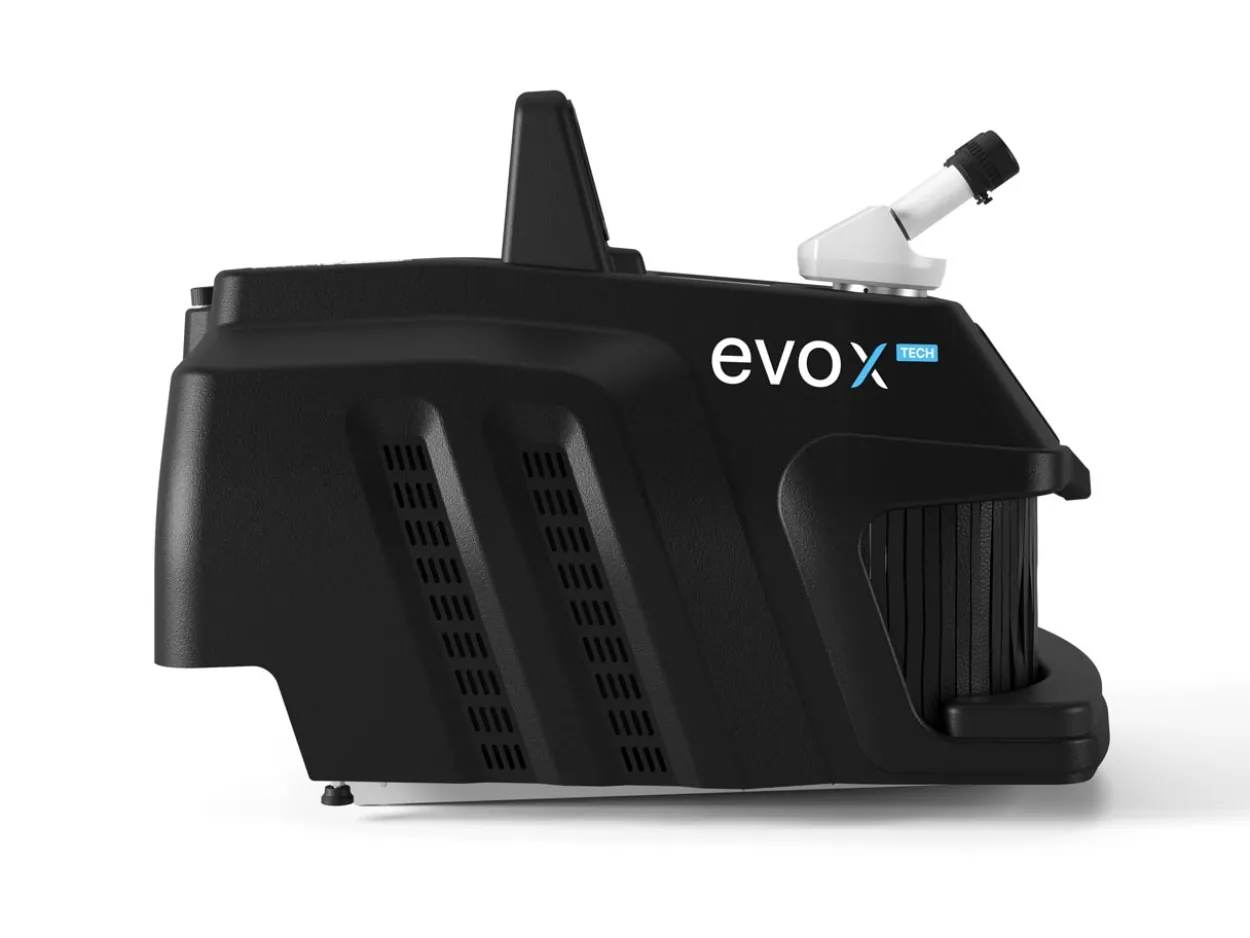

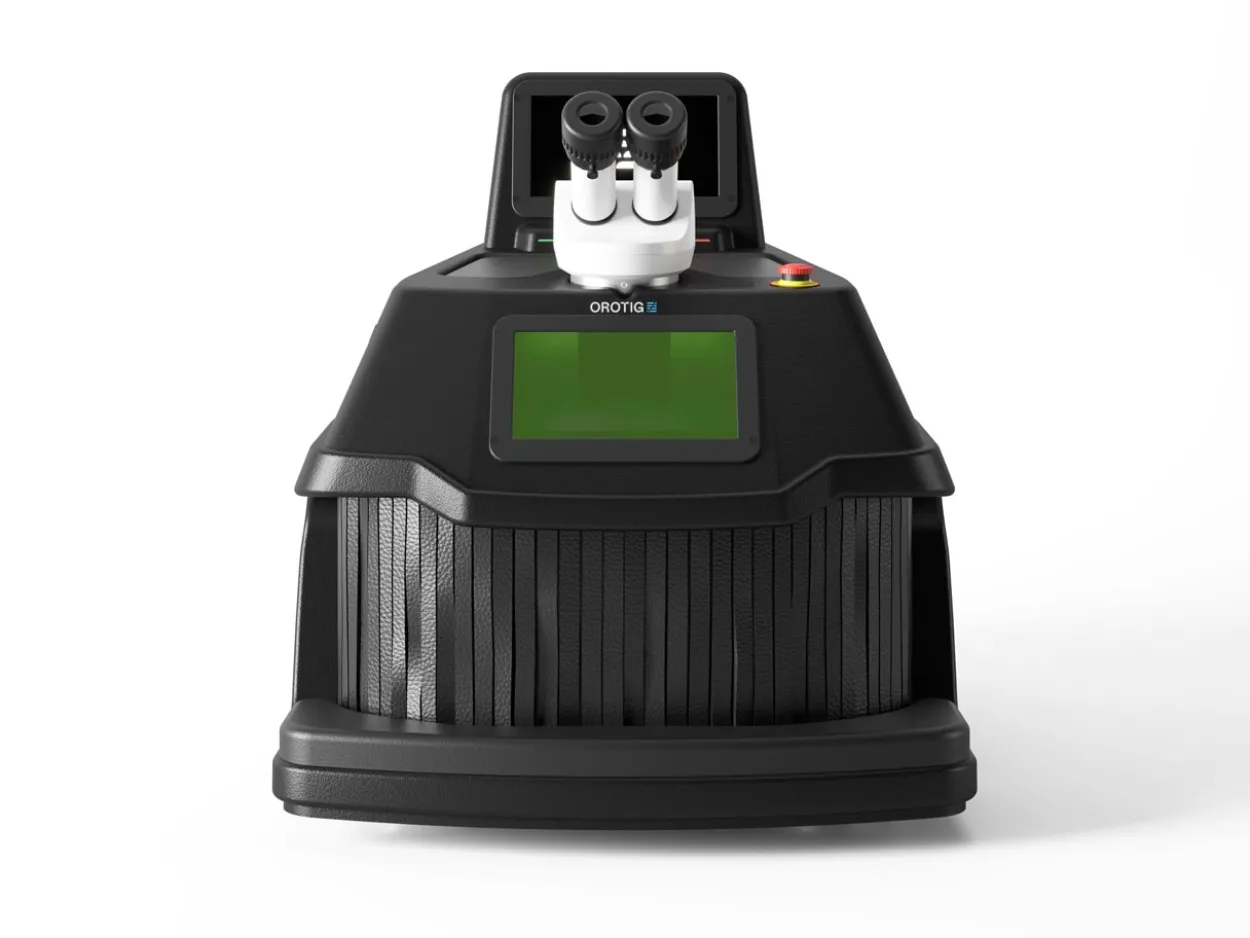

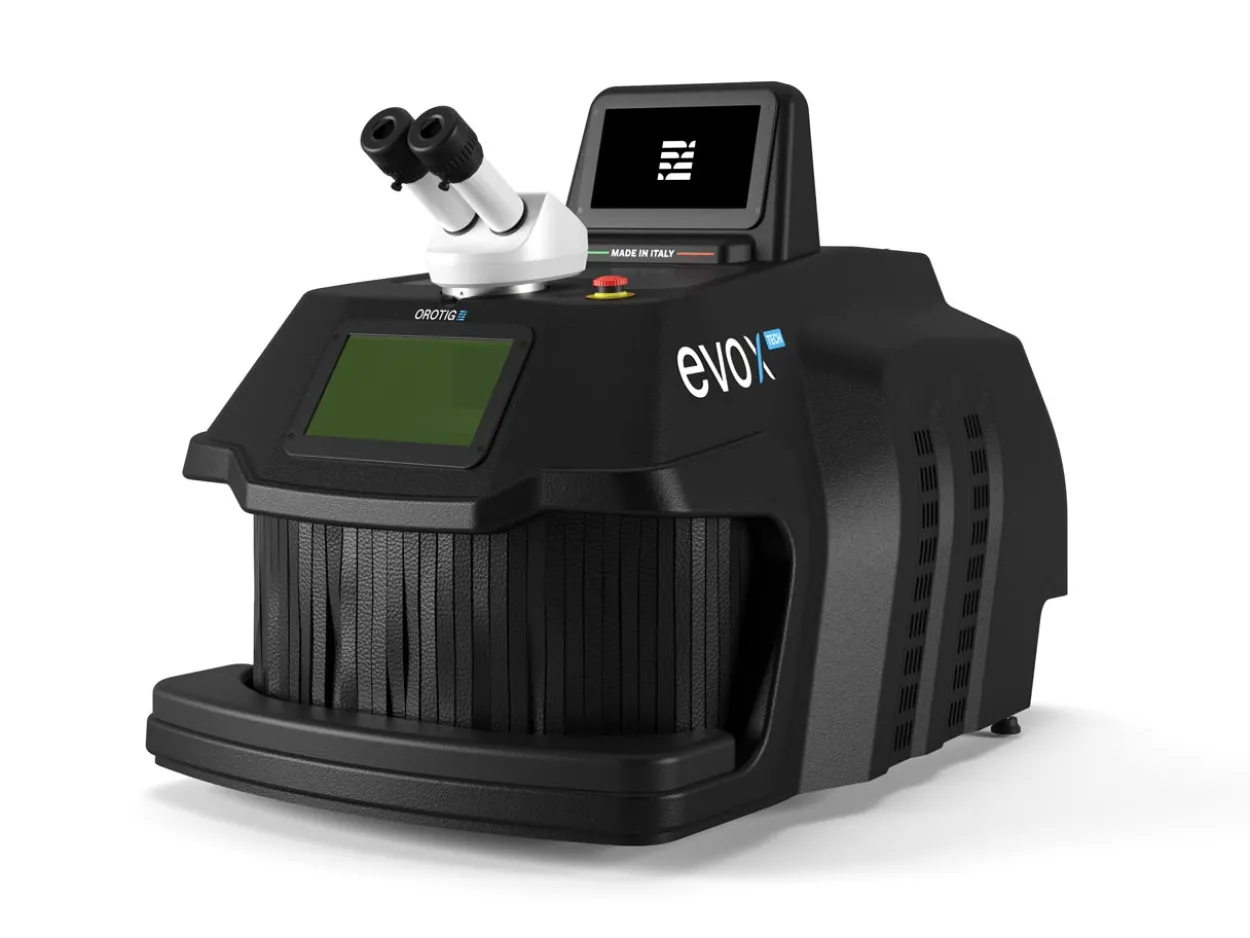

Orotig Evo X Tech Laser Welder

Description

For the past 30 years, Orotig have designed and created state-of-the-art technological products of exceptional quality. They have continued to evolve, introducing compact lasers for use in the jewellery industry.

The Soft Spot Technology in the Evo X Tech laser welder ensures smooth, clean, and high-quality welds, particularly on highly reflective materials like rose gold, silver, and platinum. Compared to traditional laser welding, which can result in rough and uneven surfaces, Soft Spot technology optimizes the laser beam’s frequency and distribution, guaranteeing uniform material application.

Designed with Orotig’s Smart Foot switch which is an alternative to the traditional footswitch It offers all the functions of a standard footswitch, plus the ability to adjust parameters by varying pressure, without interrupting the welding process.

This enables quick parameter changes while welding, allowing better control over the laser’s effect on metal and improving the weld quality.

The foot switch is plug-and-play, and its icon appears on the machine’s home screen for easy use. It controls three parameters: Power (0.1-0.5 kW), Time (0.1-0.5 ms), and Frequency (1-3 Hz). The integrated Power Factor Controller (PFC) enhances energy efficiency by reducing the load on the electrical grid, lowering electricity costs, and ensuring stable and safe performance throughout all welding operations.

The EVO X TECH offers the following features:

• Advanced cooling system for continuous operation which maintains high welding quality. Soft Spot technology for clean, spatter-free welds which works well on reflective materials with soft, adjustable, and uniform shots.
• Ensures high-quality welding on reflective metals like platinum, white gold, and silver.
• It is recommended for 24/7 use, highlighting its durability and efficiency.
• Maximum power: 250 J and Peak power: 10 kW.
• Operates in Eco Mode, ensuring efficient energy use.
• Optimized energy absorption results in reduced power consumption.
• A redesigned ventilation system enhances cooling efficiency, allowing for longer continuous operation at maximum power.

Technical data:

• Crystal type – Nd:YAG @ 1064
• Pulse power : 250J
• Peak pulse power : 10.0 kW
• Average power : 90W
• Pulse frequency : 0-40 Hz
• Pulse duration – 25 ms
• Focal diameter : 0.1-2mm
• User interface : External with 177.8mm/7? capacitive touch screen display, internal with rotary switch
• Cooling system : Liquid cooled (4 L) with forced ventilation
• Power supply : 230 VAC 10%, 1P +N + PE, 50/60 Hz, 1.8 kW
• Weight – 41kg

Included in the kit:

• Replacement protective glasses
• Allen screws
• Air/Gas adapter pipe
• Black cone shaped pipe to delivery gas
• Gas conveyor terminal
• Stainless steel plate 40mm (L) x 30mm (W) with a thickness of 1.5 mm
• Protective glass slide
• LTS 2.5 and 3.0 hex wrenches
• Leica 10x Microscope
• Double-distilled water
• Funnel
• RL 3/8 – 4 FOX adapter/s for air and argon
• Focusing support plate
• USB pen drive
• Blue Rilsan pipe
• Power cable with a 3-pin plug
• Control pedal
• Protection glass slide and glass slide-holder flange spacer
• Conical flange (normally already mounted in the machine) and 4 1/8 cylindrical male straight fitting
• Water drain quick coupling with pipe
• Aisi 302 stainless steel wire
• Interlock display key wiring

The dimensions are as follow : Weight – 41kg, H x 553mm, L x 793mm, and W x 450mm.

Please note : This product comes with 2 year warranty.
