Orotig Evo White Laser Welder

Description

For the past 30 years, Orotig have designed and created state-of-the-art technological products of exceptional quality. They have continued to evolve; introducing compact lasers for use in the jewellery industry.

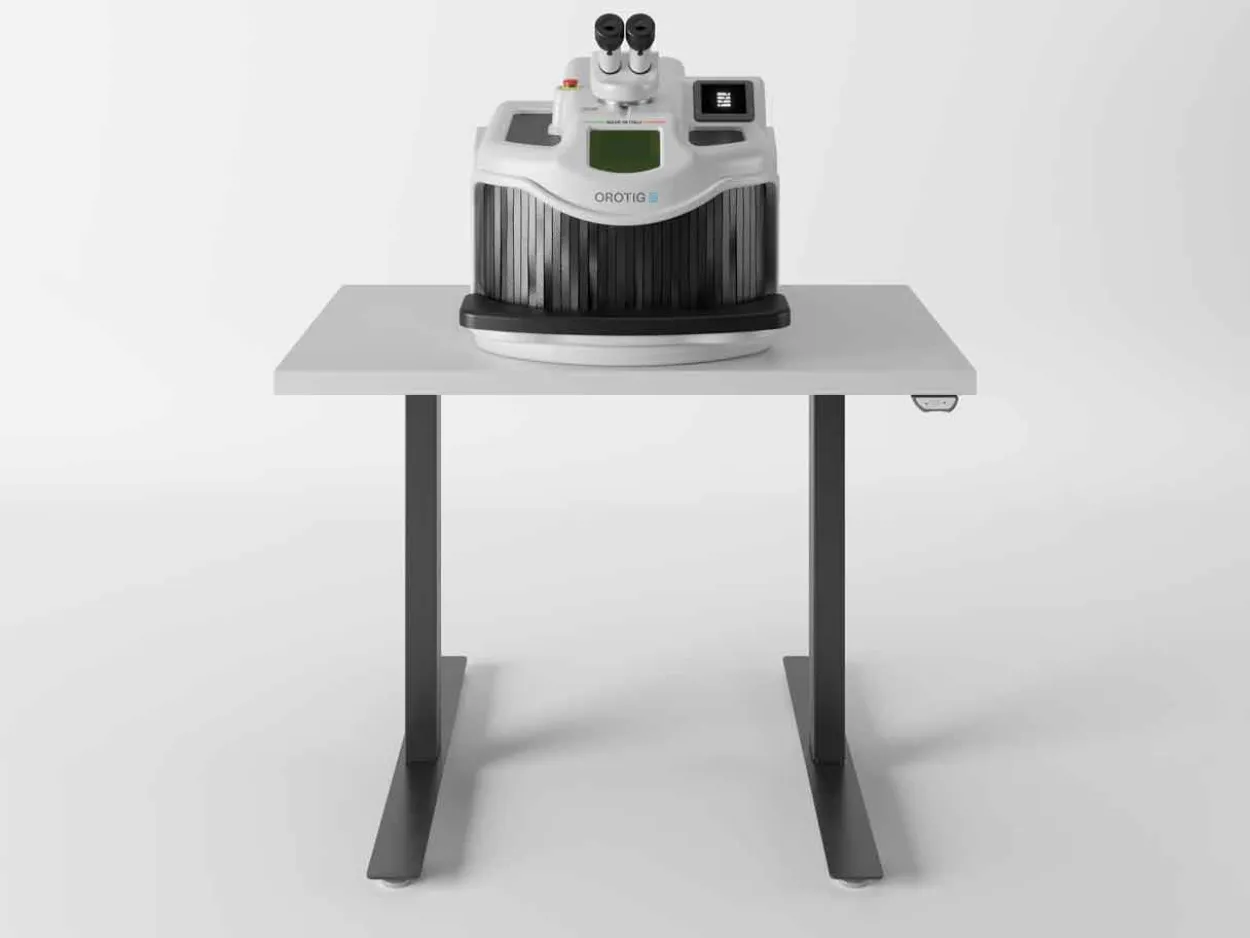

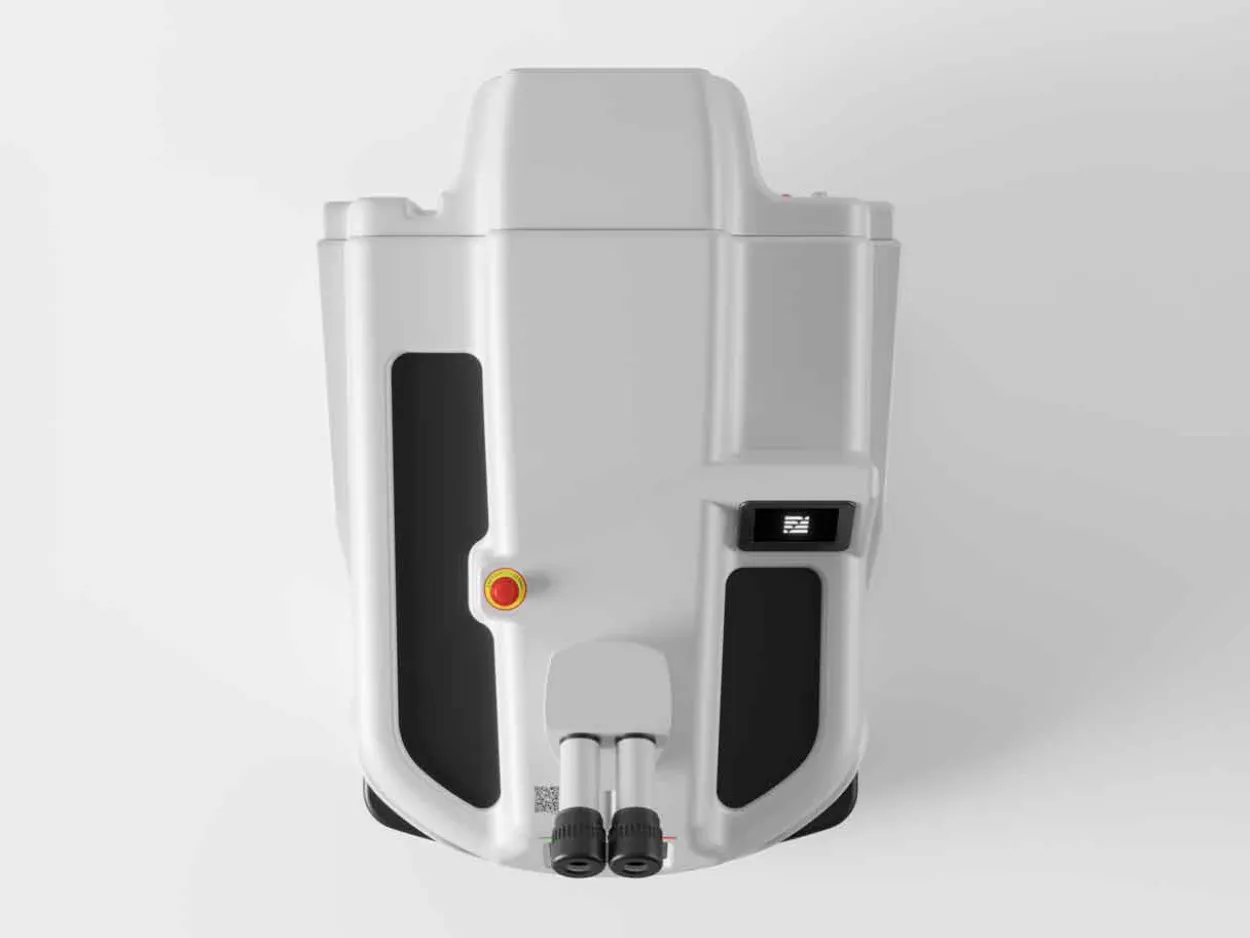

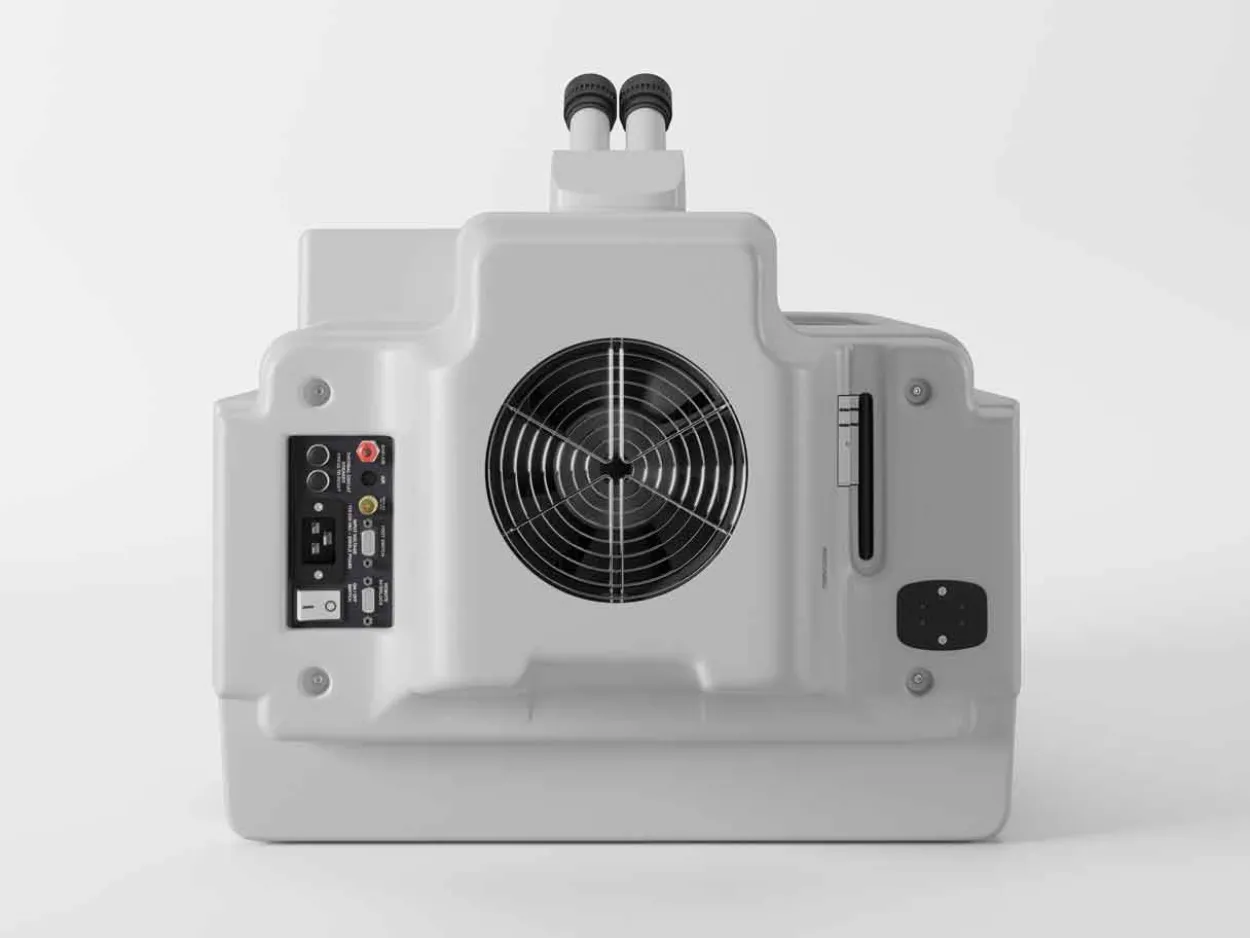

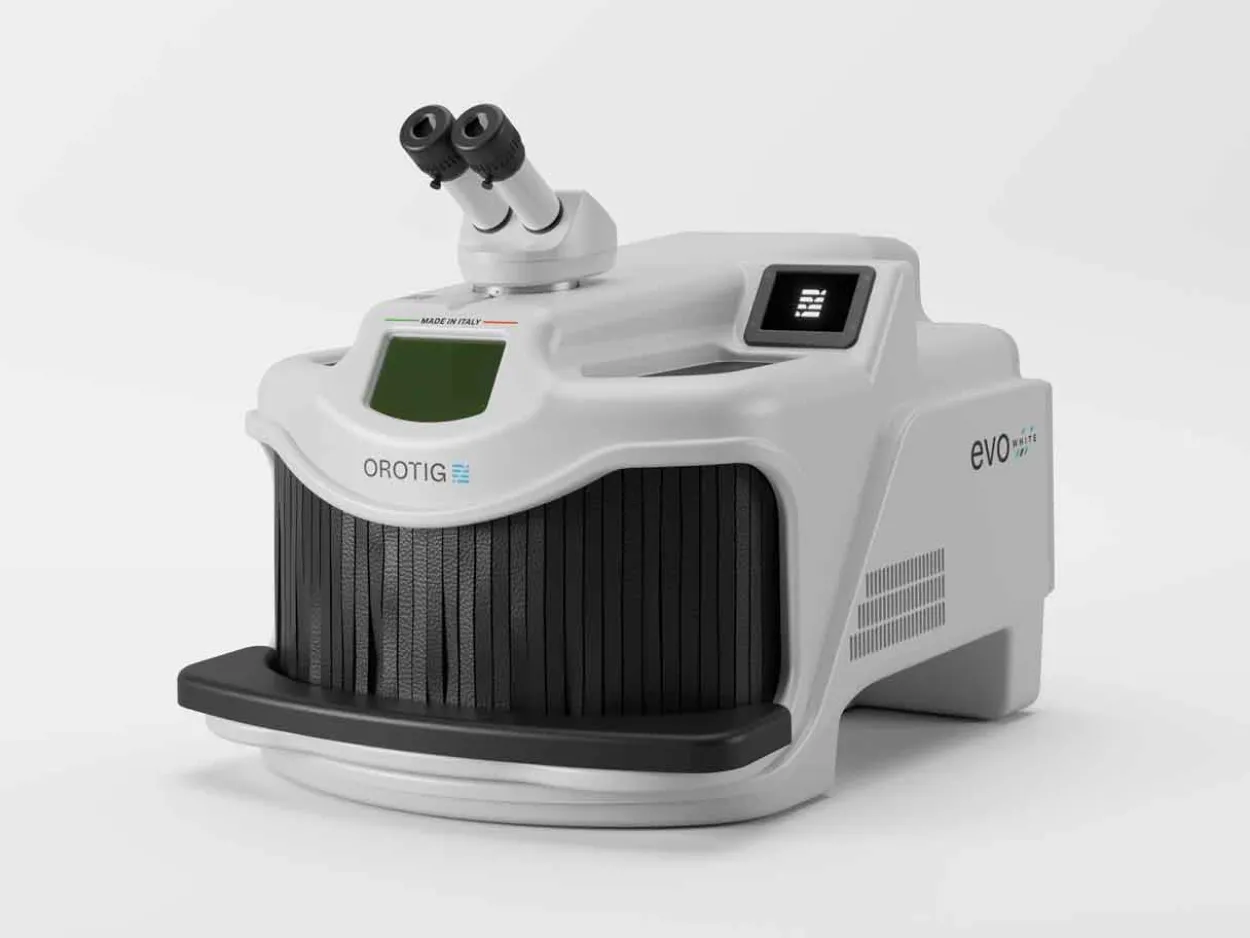

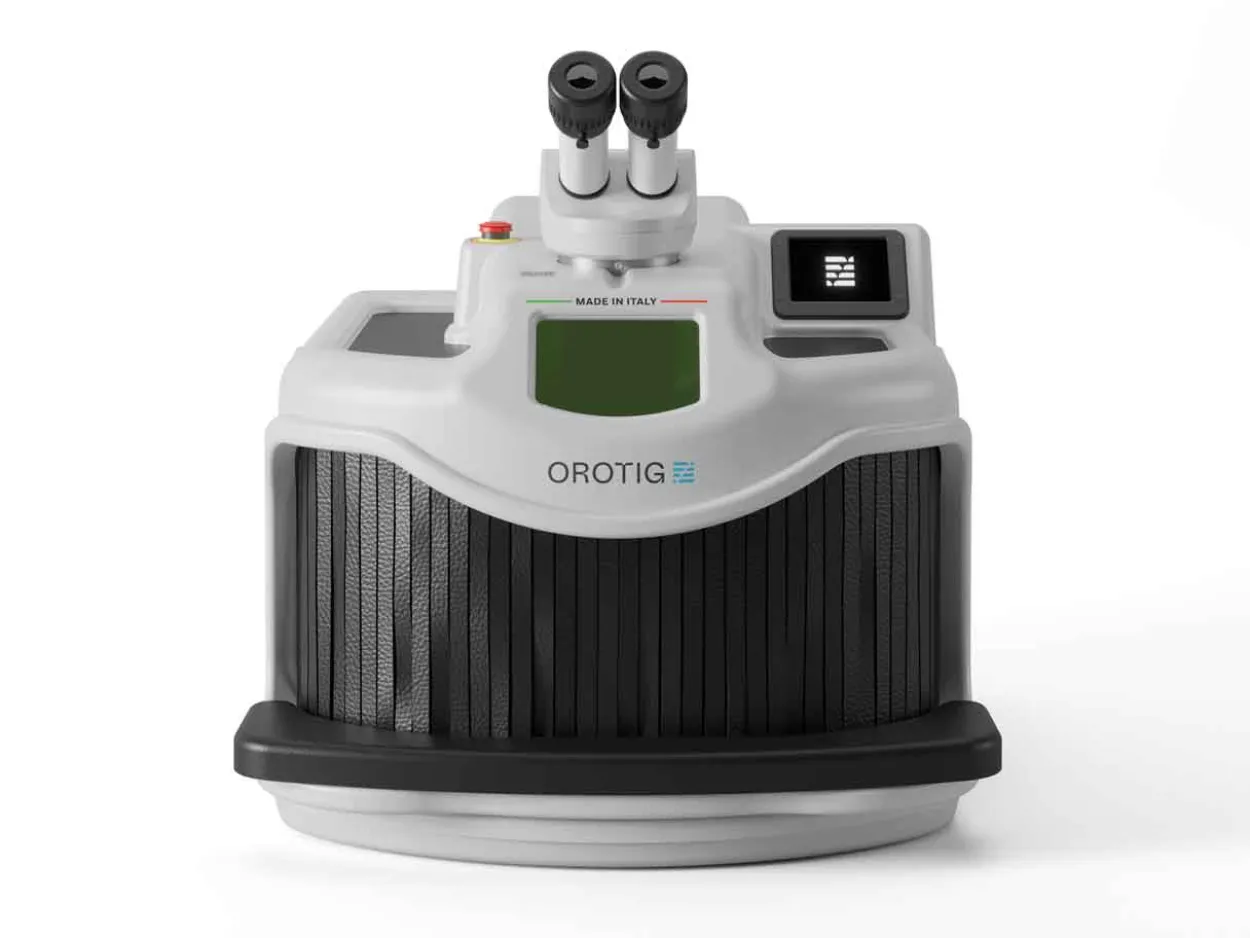

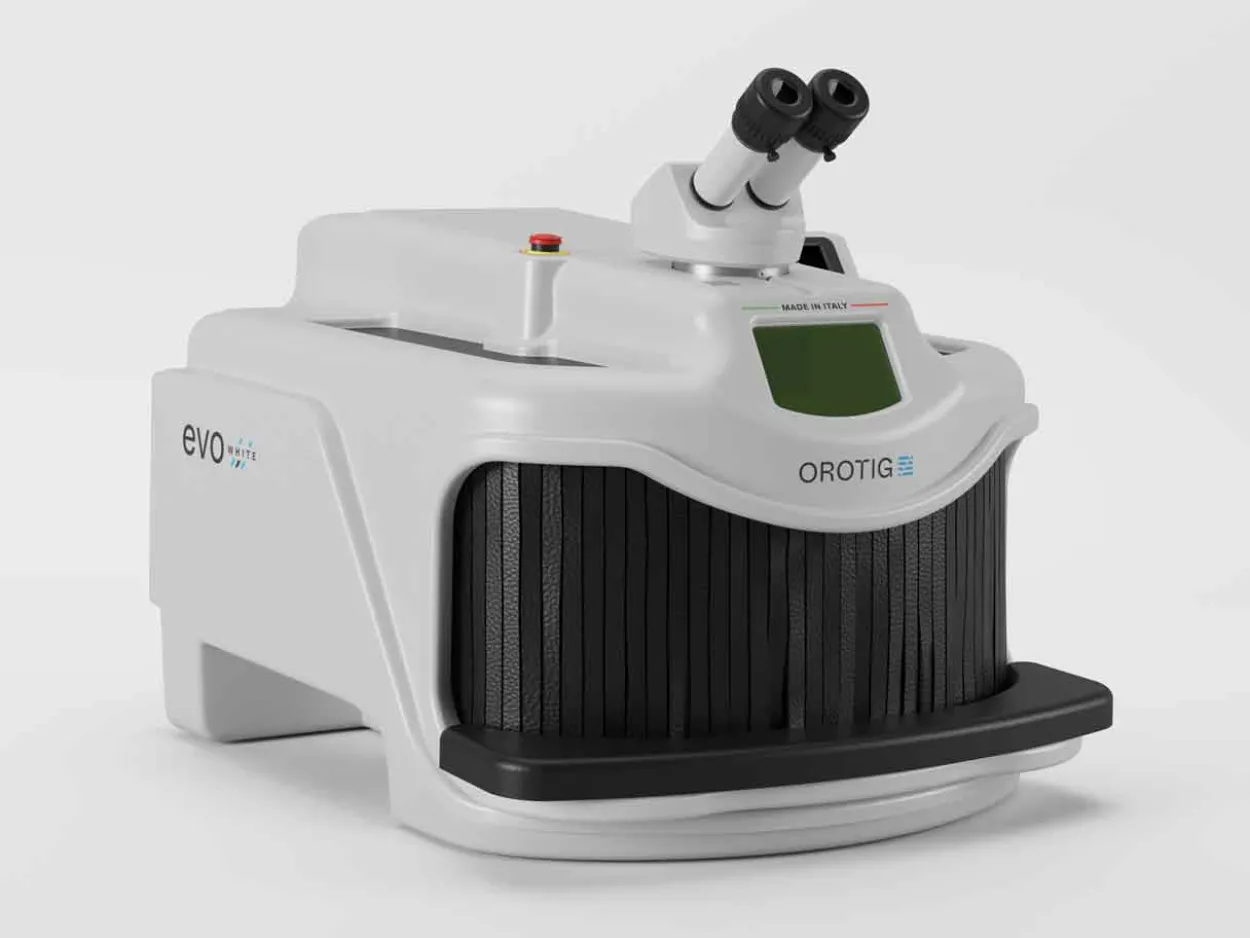

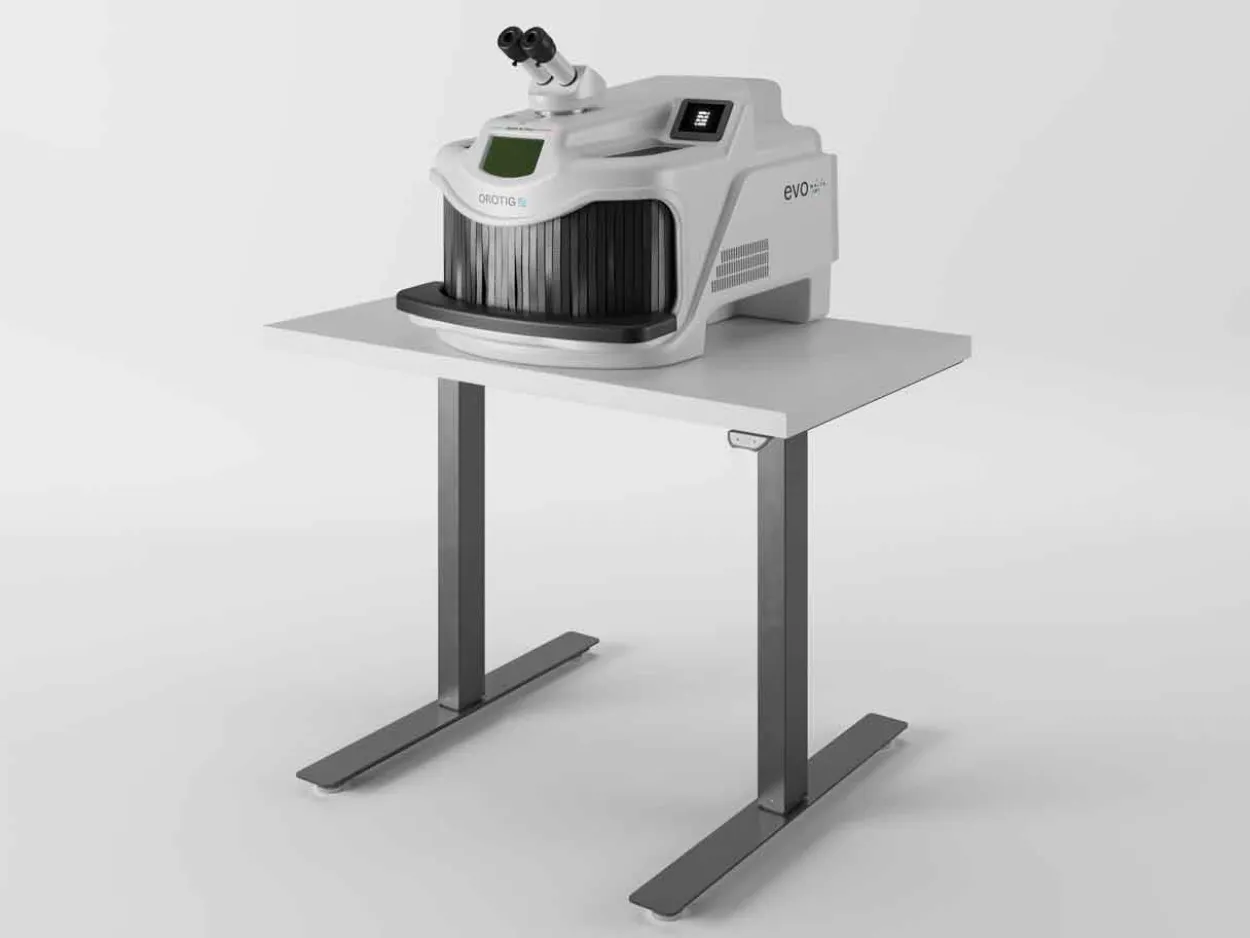

The Orotig Evo White is a powerful, compact desktop laser welding machine that uses a focused beam of laser light to join two or more pieces of metal together. Laser welders are used in a wide range of industries, from aerospace to jewellery making.

The laser welding process involves melting and fusing the edges of the metal to be joined together using a high-energy laser beam. The beam is directed onto the workpiece using a mirror or fibre-optic cable.

The Orotig Evo White laser welder has several advantages over traditional welding or soldering methods, laser welders offer faster processing times, greater precision, and the ability to weld thin and delicate metals without damaging or warping the piece.

Because the laser is contained to a small weld spot, there is no need to remove stones near to the weld area. Many jobs can also be completed without a further polishing stage being needed, saving the user time and money.

Laser welding offers the advantage of only needing to focus on the area being worked upon, even hard to reach areas can be welded with ease.

Equipped with an array of cutting edge components to make the laser welding process simple and efficient, the Evo White offers the following features:

• Power Input: 160 J
• Peak Power: 7 kW
• Mean Power: 75 W
• Shots per Second: 0 to 15
• Spot Dimention: 0.3mm to 1.5mm
• Ergonomic armrest for maximum comfort whilst working
• Ideal for small to medium production
• USB for firmware updates and diagnostics
• Dimmable LED lighting system to help prevent glare whilst working
• One connection for gas or air
• Inside chamber encoder to set parameters, avoiding disruption to the work process
• Chamber lever to adjust spot size
• Built in dust filter
• Built in cooling system, using double-distilled water

Thanks to the powerful Leica 10x microscope, intricate details of the object being worked on can be viewed in crystal-clear detail. An optic configuration with mirrors on both the front and back of the laser crystal is designed to generate a powerful welding shot.

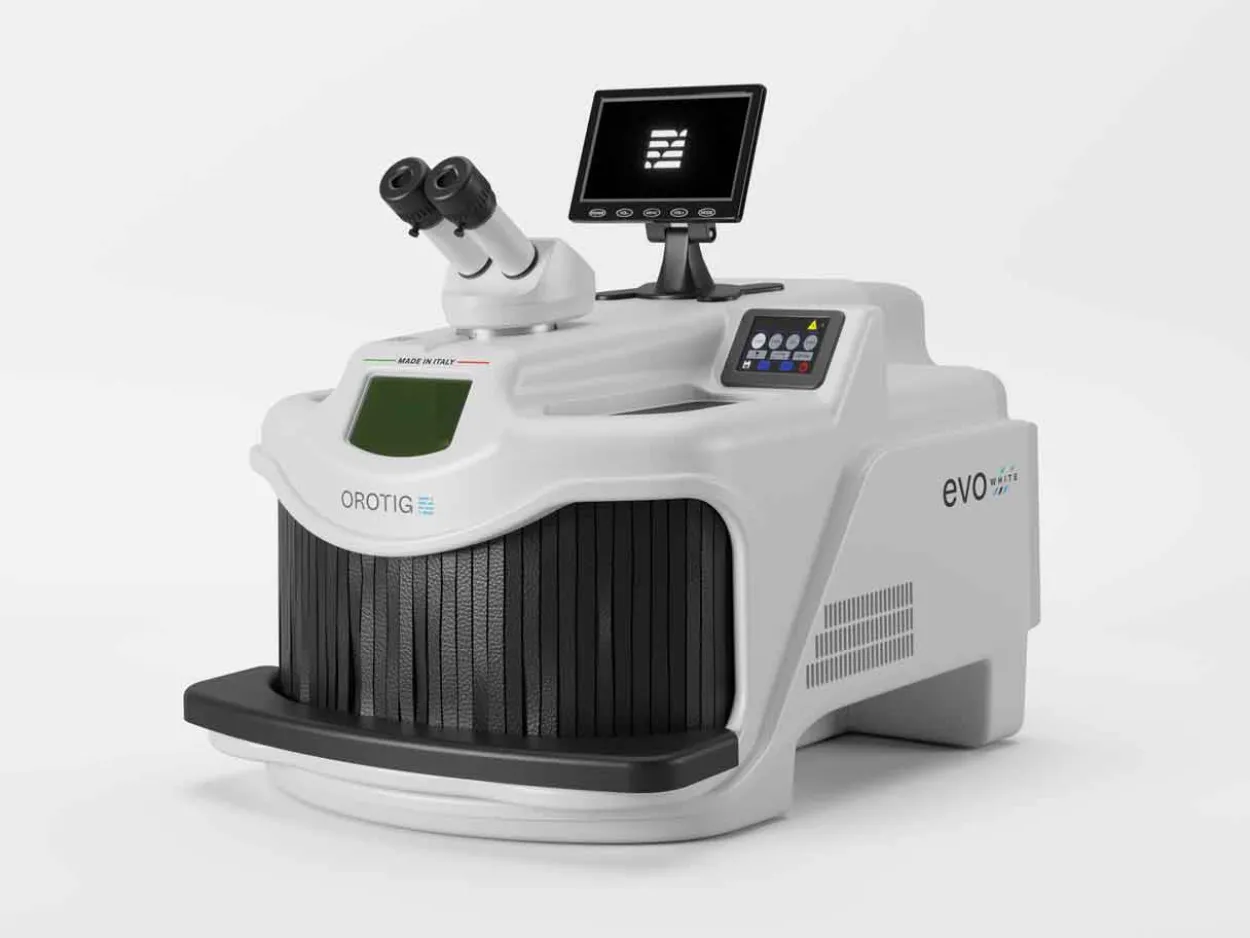

The 89mm (3.5″) touch screen display offers a user-friendly interface, with the ability to add and store additional presets, alowing the user to customise the mashince to their own working parameters.

There is a connector for Argon, Nitrogen or Air. Adding Argon gas is only needed when welding Titanium, as Argon shields against oxygen which prevents it from oxidising and breaking down.

Air and Nitrogen both work to cool down the piece being worked on, preventing the need to stop working to let the metal cool. This is extremely useful when working with platinum, red gold and silver.

Can be used on gold (7-18ct), silver, platinum, titanium, palladium, chrome cobalt, brass and copper bronze.

The Evo White laser machine is supplied with:

• Stainless steel plate 40mm (L) x 30mm (W) with a thickness of 1.5mm
• Protective glass slide LTS 2.5 and 3.0 hex wrenches
• Leica 10x Microscope
• Double-distilled water
• Sterile syringe
• RL 3/8 – 4 FOX adapter/s for air and argon
• Focusing support plate
• USB pen drive
• Blue Rilsan pipe

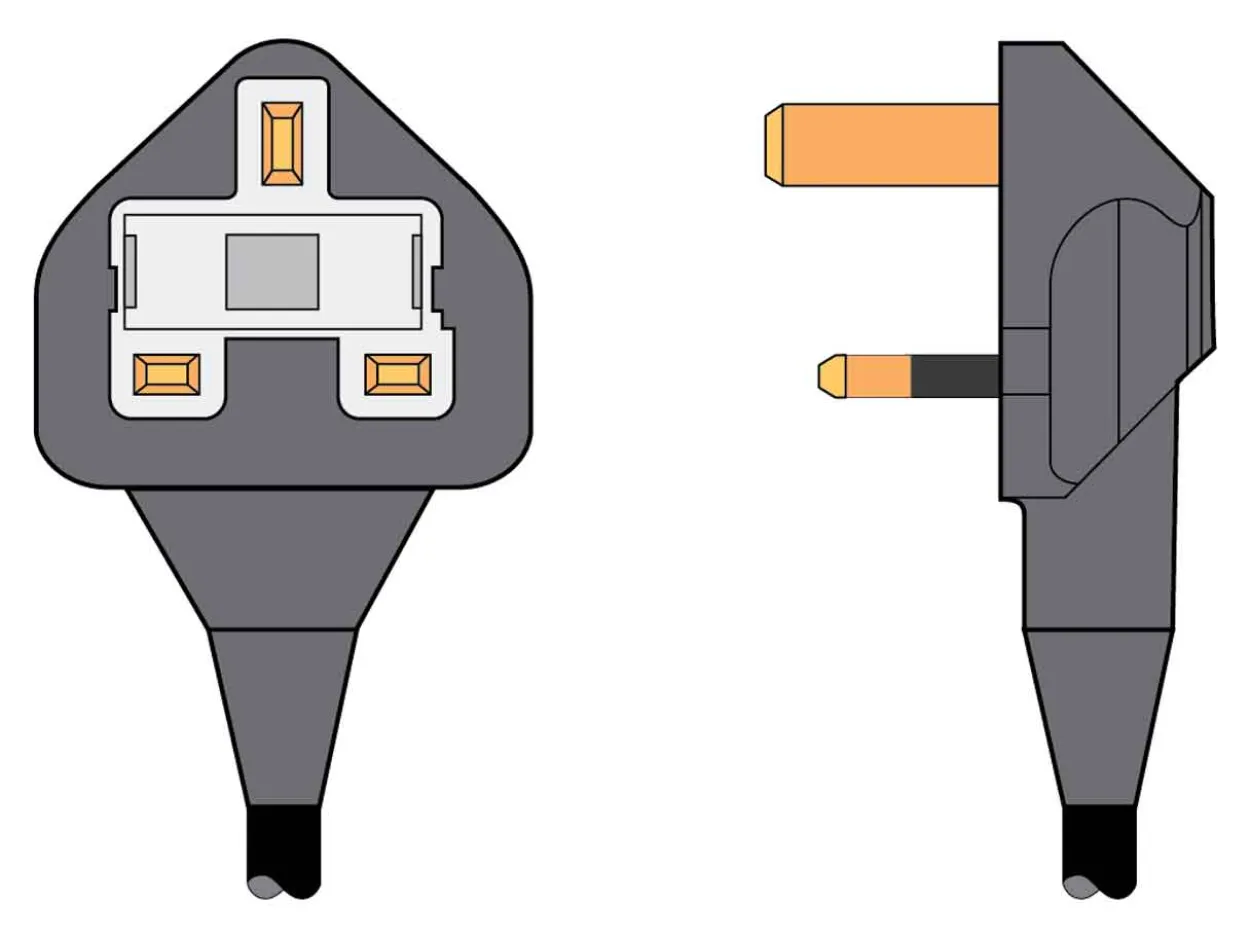

• Power cable with a 3-pin plug
• Control pedal
• Protection glass slide and glass slide-holder flange spacer
• Interlock display key wiring
• Aisi 302 stainless steel wire

The machine is supplied with a 2 year manufacturer warranty.

Demonstrations of this product can be performed in-store, or virtually on request.

Technical information and after-sales support are both available.

For more information on technical support or to request a demonstration, please call 0345 100 1122.
