Metric Tap And Die Set

Description

Taps and dies are invaluable workshop tools for cutting internal and external screw threads.

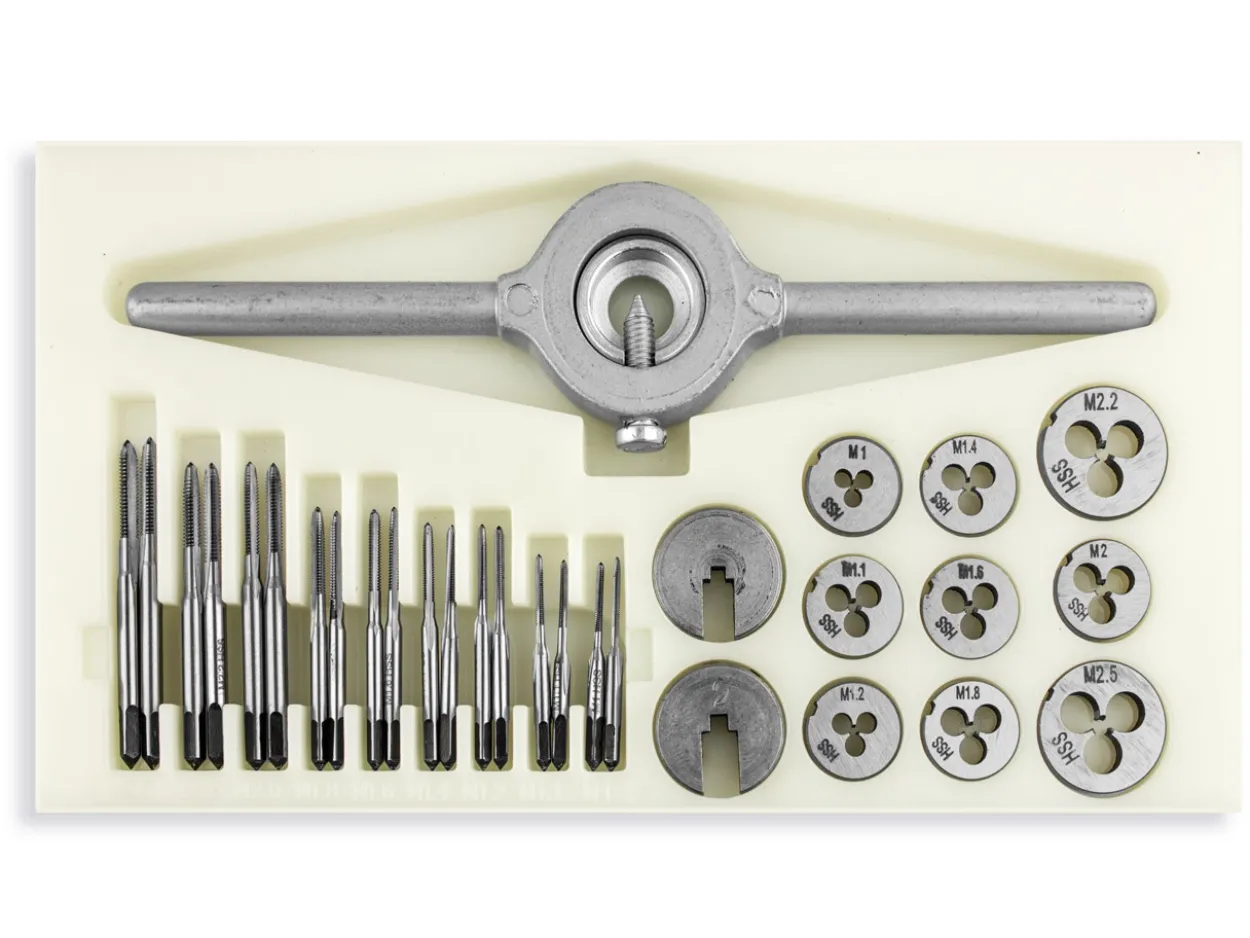

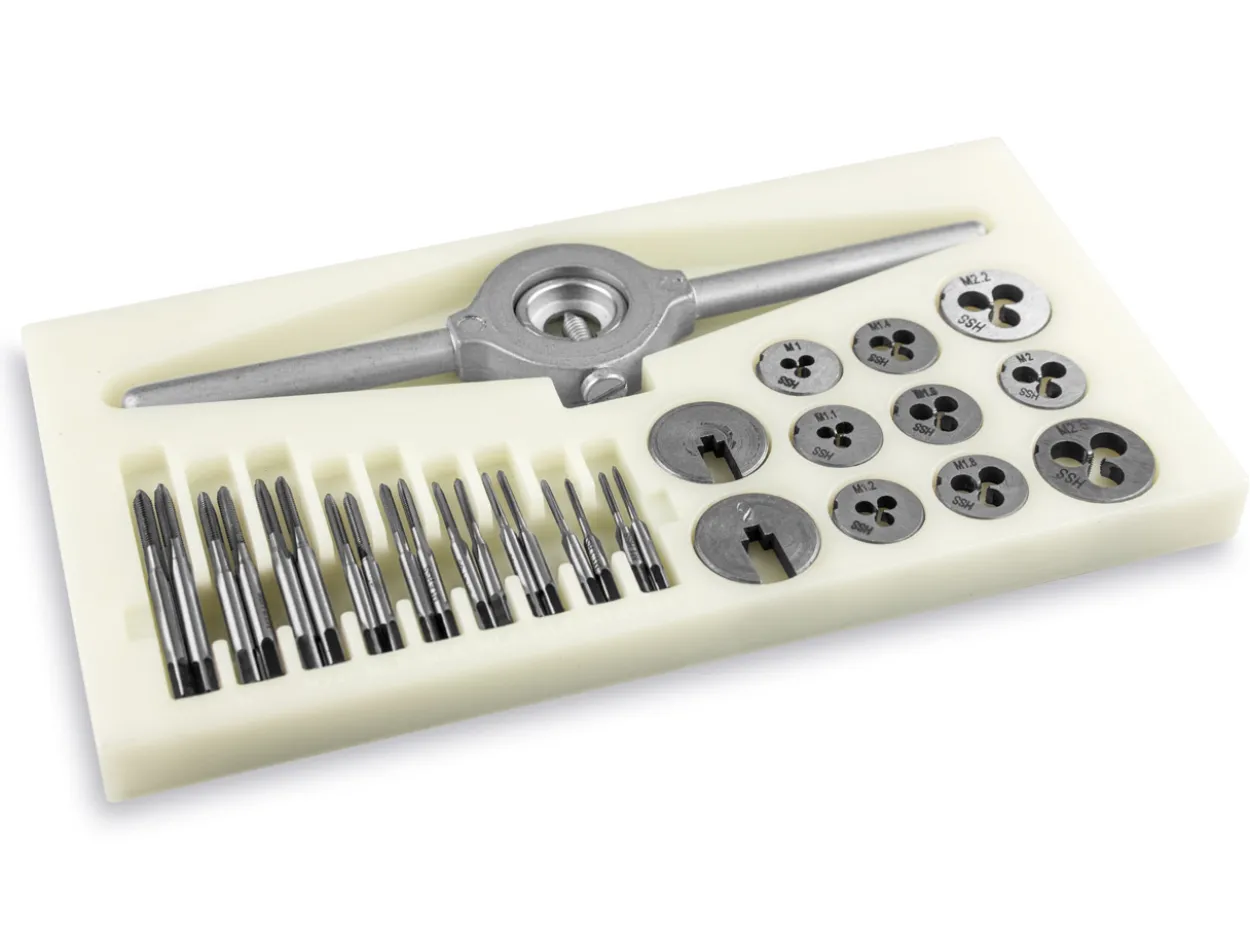

This metric tap and die set contains a tap wrench, 9 dies of varying sizes, 9 tapered taps and 9 ‘plug’ style taps, along with two circular jigs for fitting taps into the tap wrench.

A tap (for cutting internal screw threads) is fitted into the tap wrench by using one of the circular jigs provided and then slowly turned into a pre-drilled hole just smaller than the diameter of the tap.

The object or bolt containing the hole should be secured in a vice. This will start the threading process.

It is recommended to use a cutting lubricant such as Burr Life to aid the threading process.

Please note the metric taps are;

• 1.0mm pitch 0.25
• 1.2mm pitch 0.25
• 1.4mm pitch 0.30
• 1.7mm pitch 0.30
• 2.0mm pitch 0.40
• 2.3mm pitch 0.40
• 2.6mm pitch 0.45
• 3.0mm pitch 0.50

The metric die threads included in this set are;

• 1.0mm
• 1.1mm
• 1.2mm
• 1.4mm
• 1.6mm
• 1.8mm
• 2.0mm
• 2.2mm
• 2.5mm
