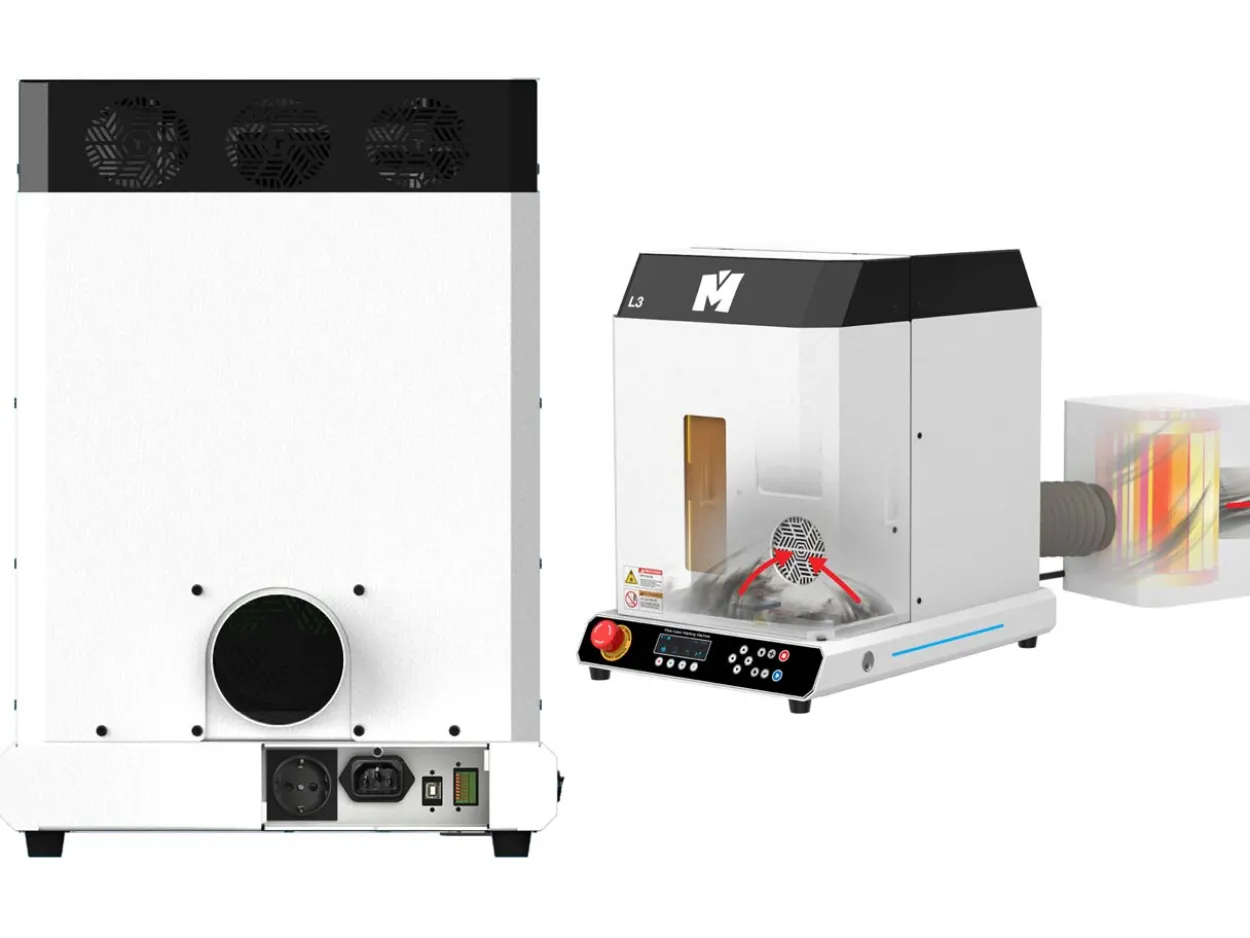

Magic L3 Fiber Laser Marking And Cutting Machine 60w

Description

The MAGIC L3 Fiber Laser Marking Machine 60W is a powerful multi-functional laser engraving and cutting machine developed specifically for the jewellery industry. Equipped with a high-performance 60W laser source, it delivers fast, accurate, and reliable engraving and cutting on a wide range of materials including gold, silver, brass, copper, aluminium, stainless steel, polymers, and ceramics.

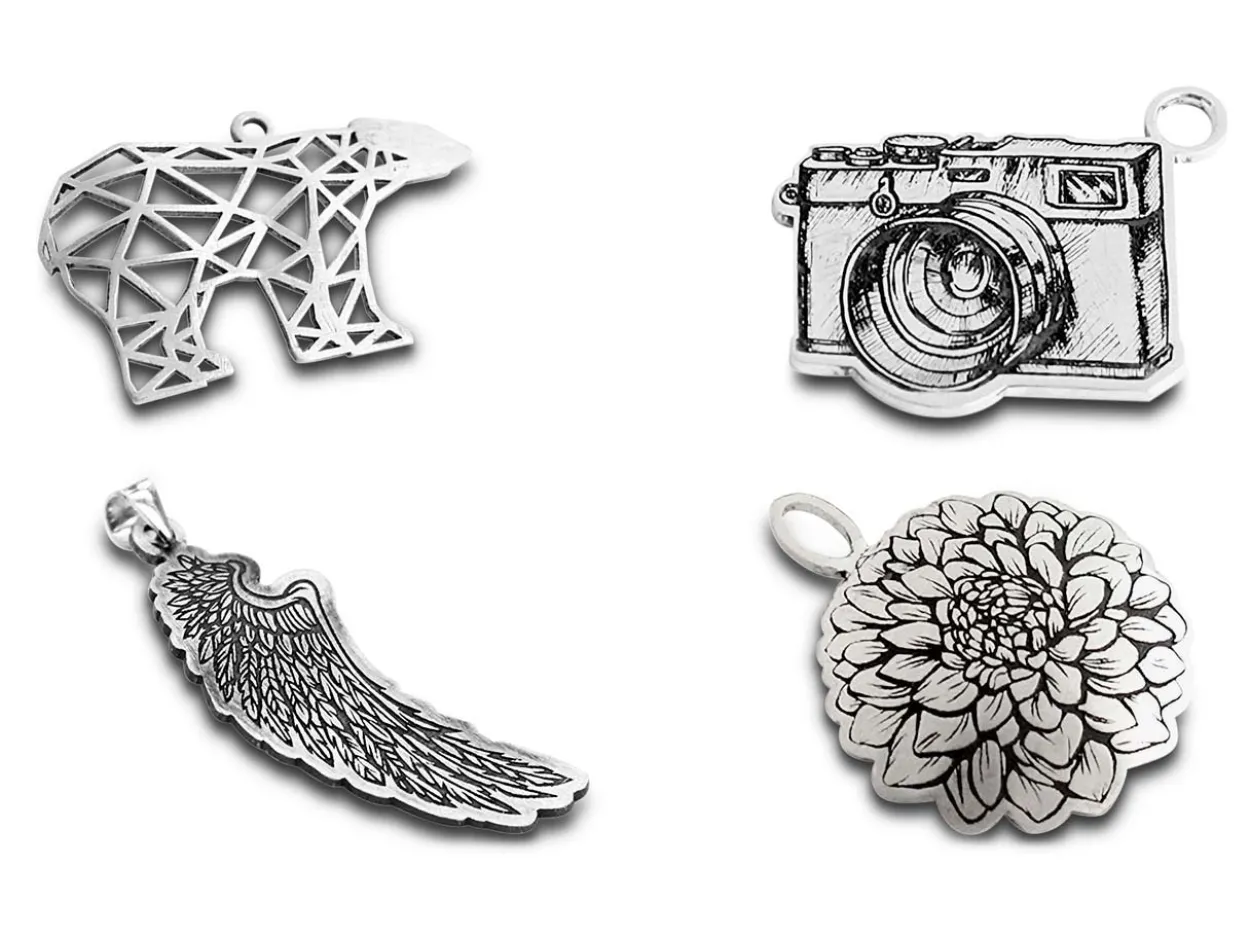

Designed for professional jewellery personalisation, the L3 can create deep engravings, textured surfaces, detailed images, black and white marking, and precision cutting on both flat and curved surfaces. Its advanced laser control system allows users to achieve highly detailed and polished results with ease.

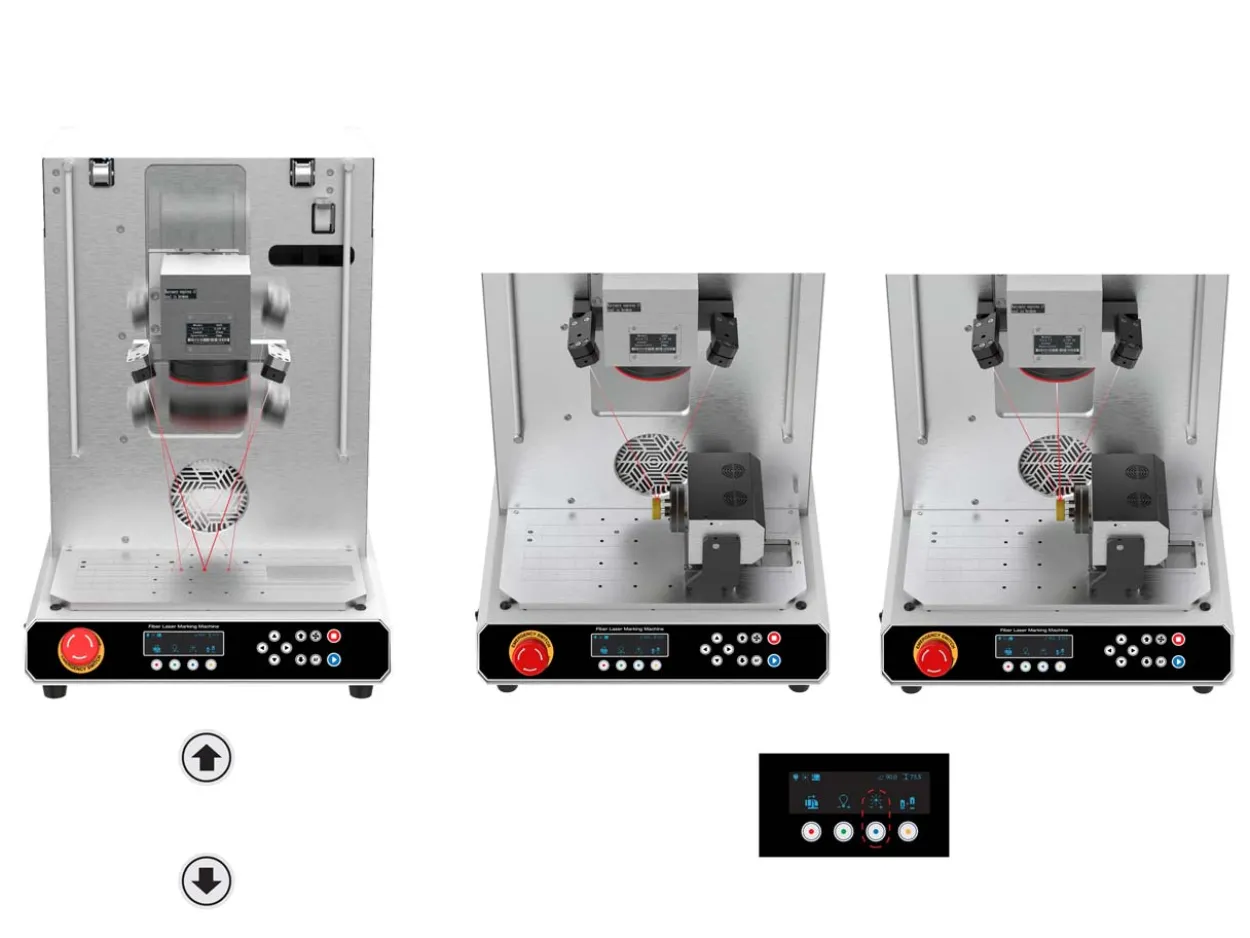

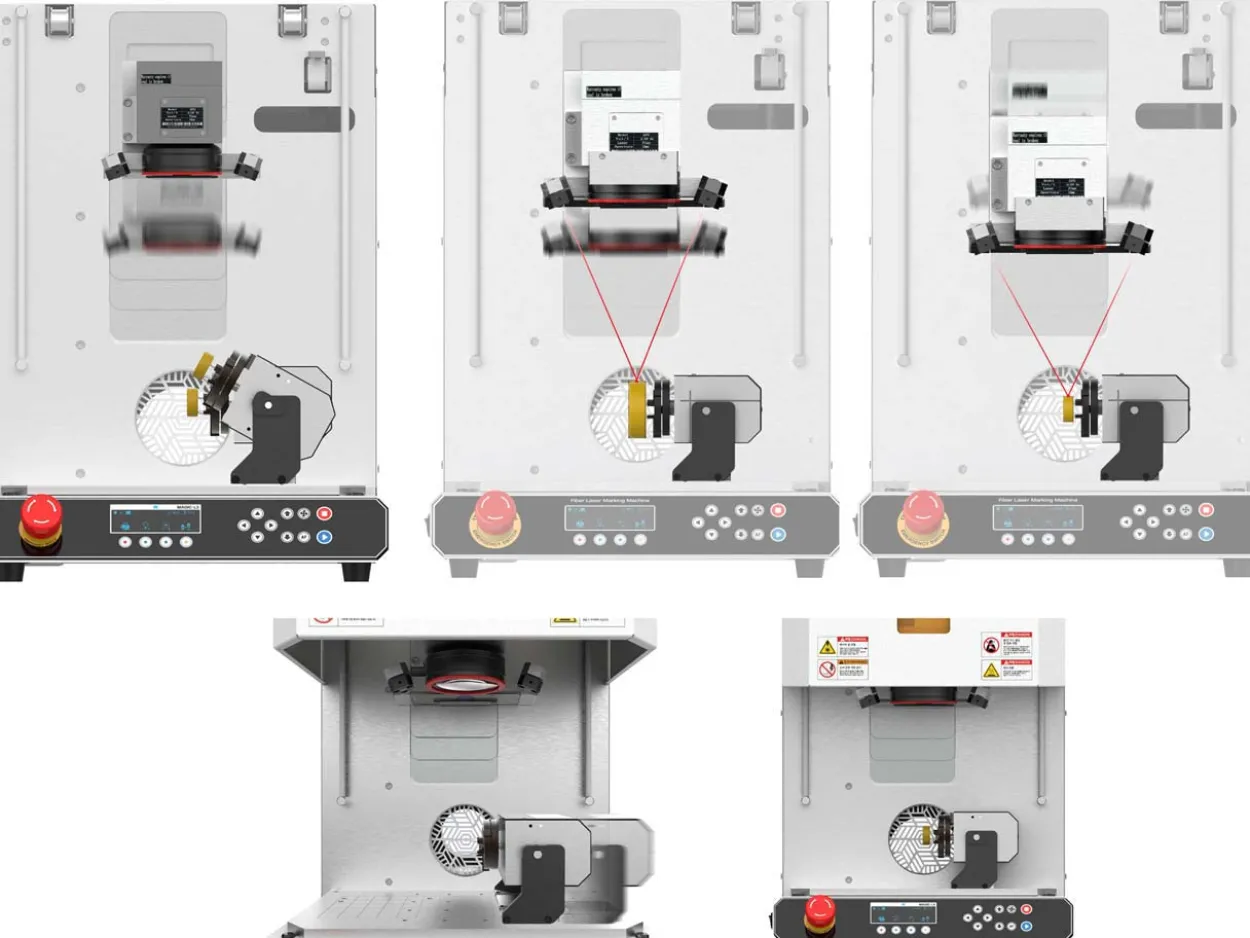

The machine features a cable-free Load-N-Go docking station that automatically positions and adjusts the rotary clamp for rings and cylindrical items, allowing users to switch effortlessly between pendant and ring engraving modes. Automated focusing and camera positioning systems ensure fast setup, accurate alignment, and error-free engraving results every time.

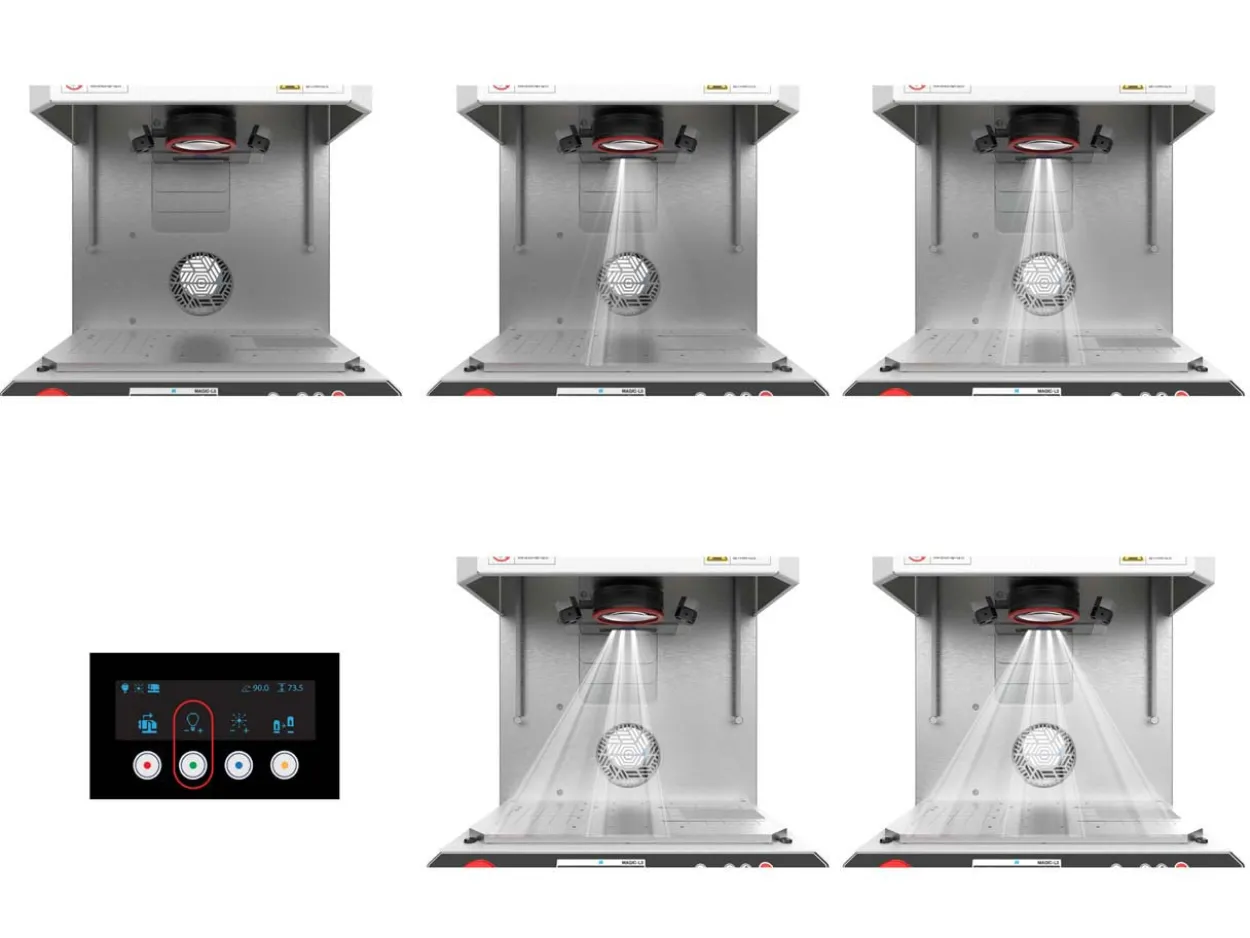

Built with ease of use in mind, the L3 includes intelligent automation features that make it suitable for both experienced engravers and beginners. The integrated camera, laser pointer, and auto-focus system provide precise positioning and simplified operation, while the MagicEngrave software offers flexible design control with compatibility for Microsoft Office and USB file imports.

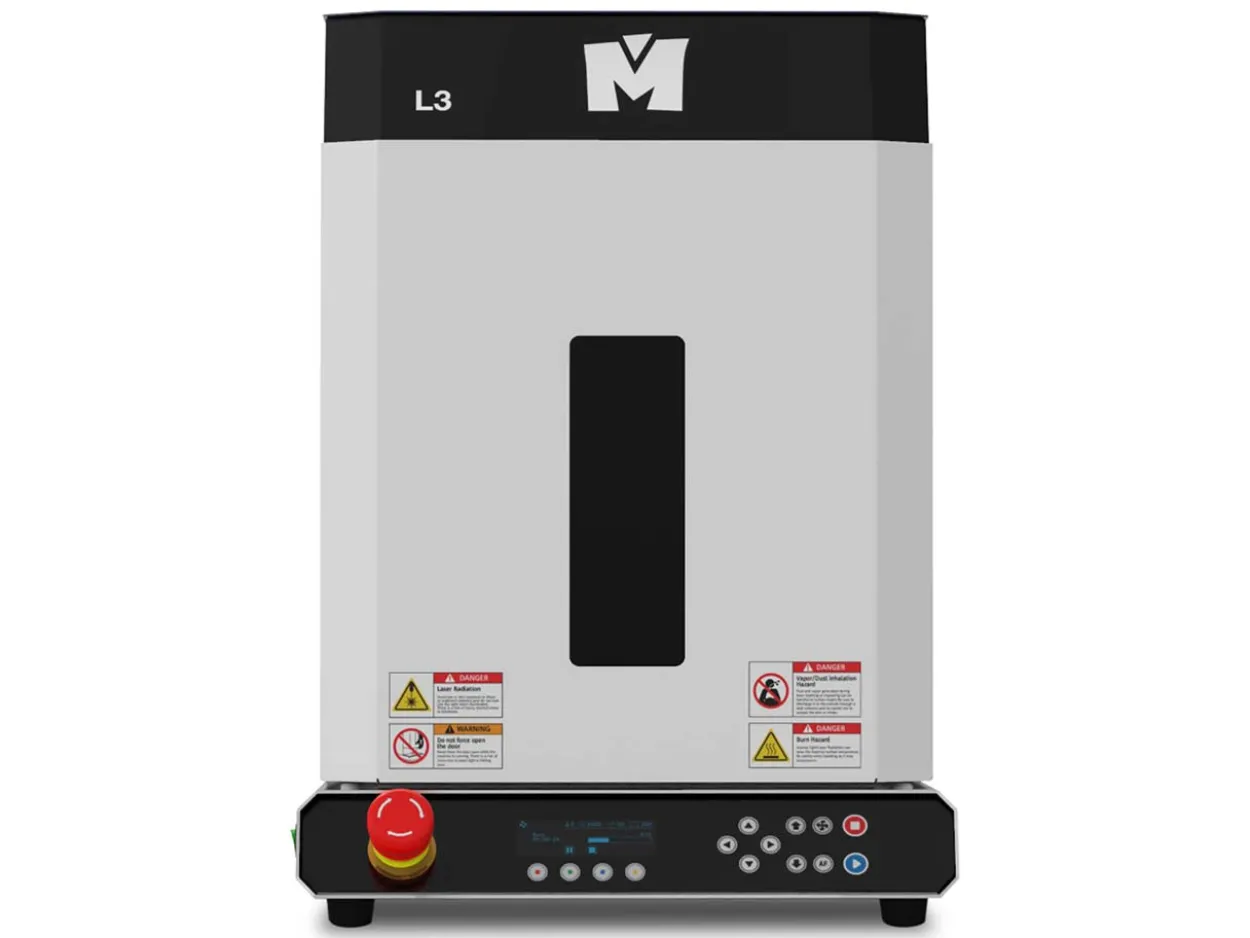

Compact, quiet, and modern in design, the L3 is perfect for retail shops, jewellery workshops, and studio environments. An automated safety door protects users from laser exposure, dust, and fumes during operation, while the built-in LCD display shows machine progress and remaining operation time.

Available accessories for easy marking or cutting of complicated jewellery products:

• Magic L3 Medal/Pendent clamp Centre Fixing Type () – Holds unique shape materials in place
• Magic L3 Medal/Pendent clamp () – Holds unique shape materials in place
• Magic L3 Auto Tilt Rotary clamp () – Holds rings in place
• Magic L3 Honeycomb table () – Holds a thin plate in place for the cutting process
• Magic L3 L-type clamp () – Holds a material with slanted surface
• Magic L3 Anti-curling clamp () – Holds a thin plate in place for the cutting process

Additional features include batch engraving functions, curved surface engraving, multi-level height engraving, repeat operation controls, and letter-by-letter engraving for improved productivity and efficiency.

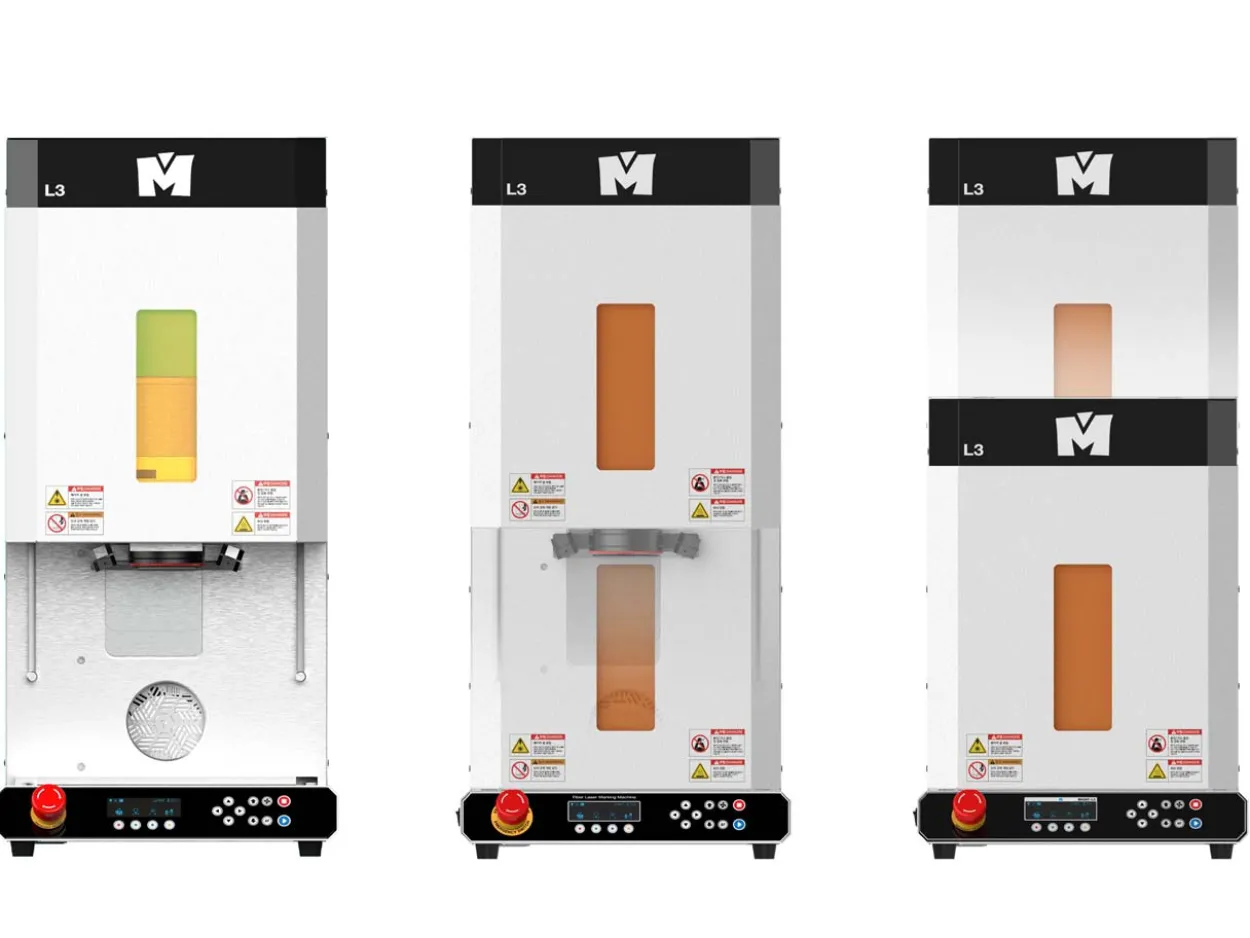

The door has a maximum opening height of 266mm (10.4″).

An LCD screen shows the machines progress and displays the remaining time.

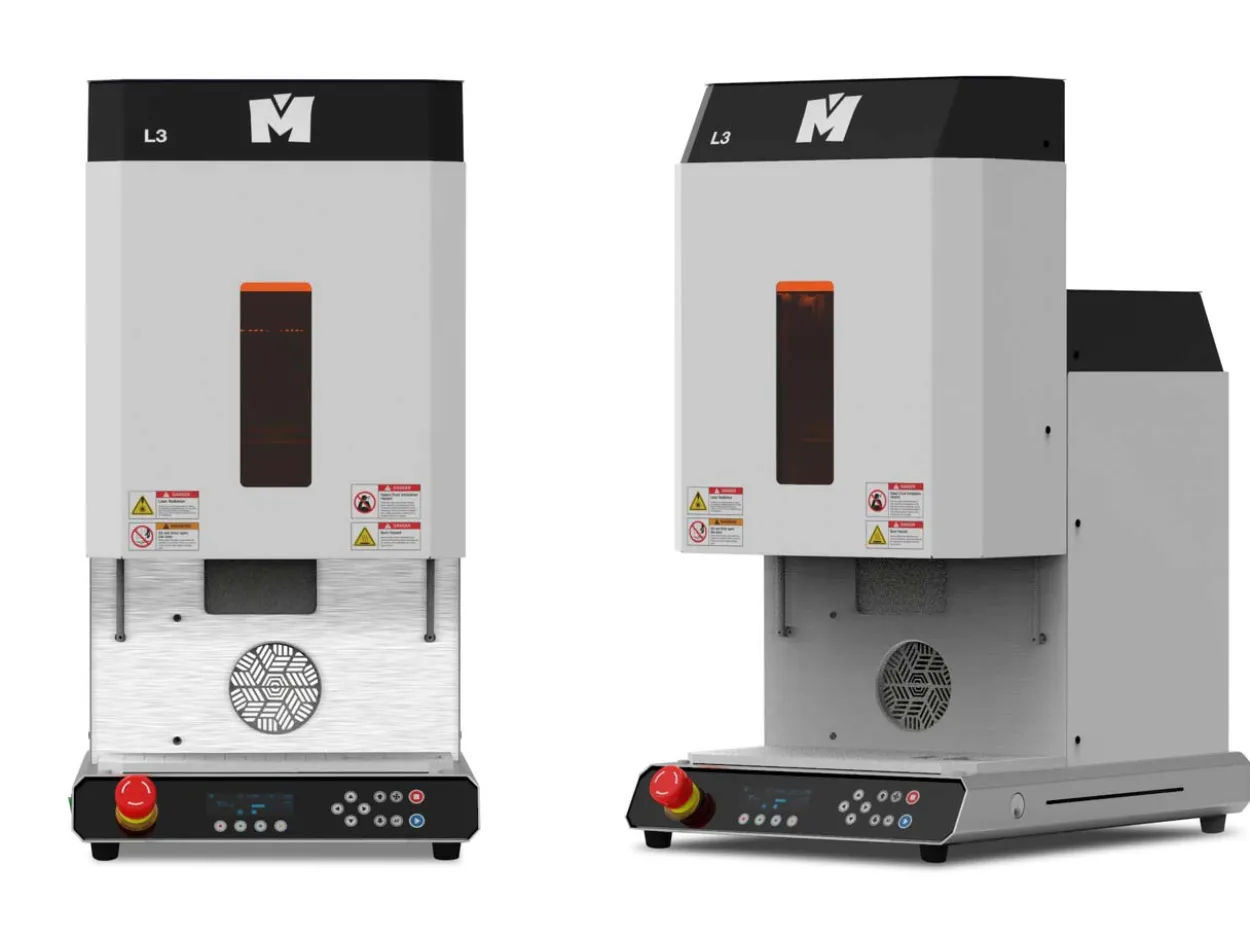

The machine is noiseless and compact, allowing it to be used anywhere, making it perfect for a desktop or work surface within a shop or studio.

The L3 laser marking machine can engrave on a maximum working area of 112mm W x 112mm L x 100mm H and cut up to 2mm thick material.

The output beam diameter measures 7mm. The chamber of the unit measures 350 mm W x 100 mm H x 170 mm D.

Additional features:

• Batch operation with various marking and cutting options

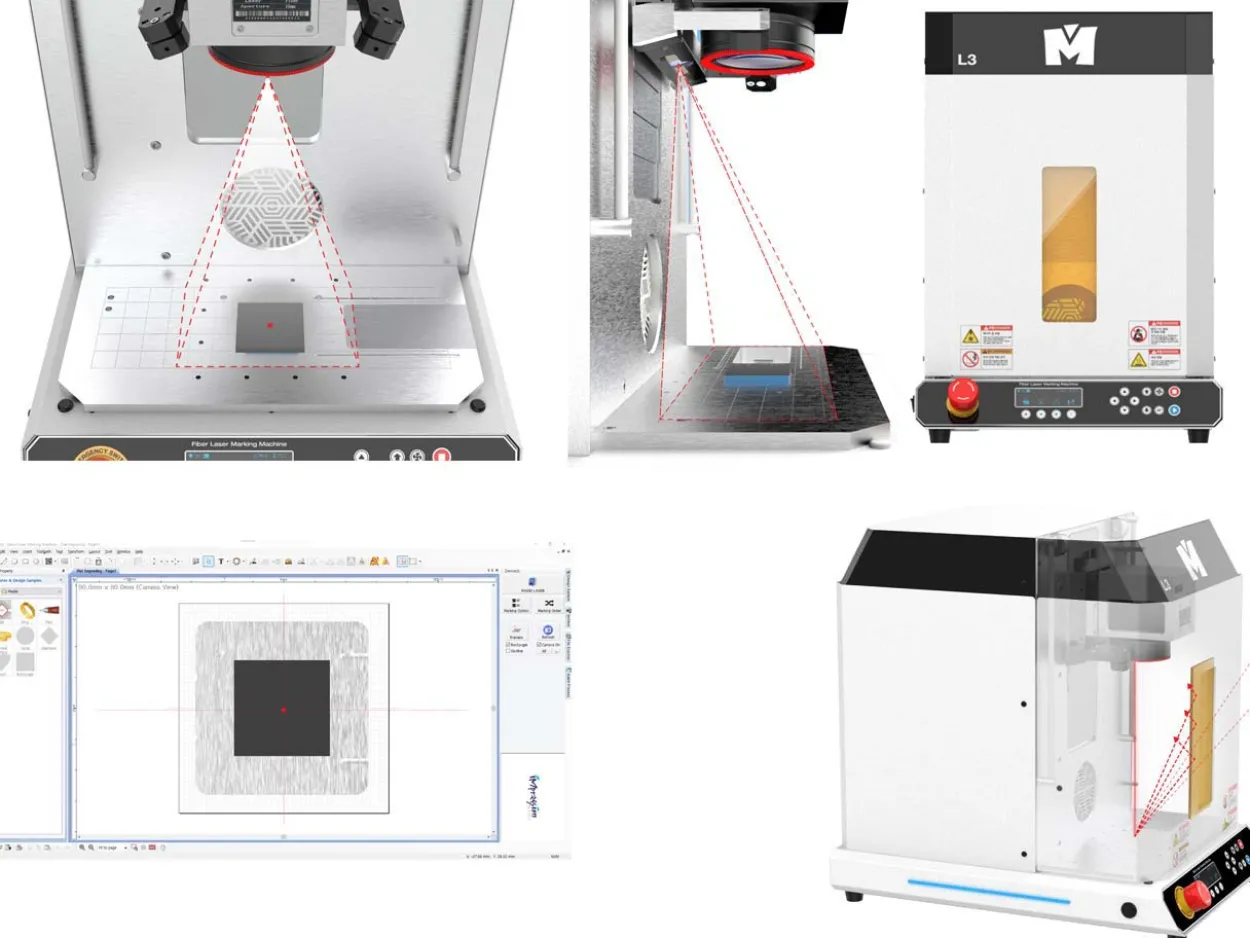

• Positioning of the engraving via an integrated camera with auto-focus with a maximum area of 80 x 80 mm
• Batch engraving on materials with multi-level heights
• Engraving on curved materials
• Letter-by-letter engraving for faster performance
• Easily accessed repeat button to trigger the same operation conveniently

Software is supplied with the Magic L3 Machine, allowing you to engrave text in various fonts and characters, patterns, symbols, shapes, logos and even photographs. It is also fully compatible with Microsoft Office and designs can be easily loaded from a USB drive.

Please note – dust blower is not supplied with the unit and should be purchased separately; please see Magic L3 Blower Set – () which will help pushing the dust out of the extension hose and will help you cover a larger area.

An extraction unit is advised when using the L3 machines. It is the customers responsibility to carry out risk assessments to ensure a safe working environment. For an extraction unit suitable for normal usage please see 998 AX10. For high usage an extraction unit designed for laser machines should be sourced.

The L3 laser machine is supplied with:

• MagicEngrave software
• Power cable
• USB cable

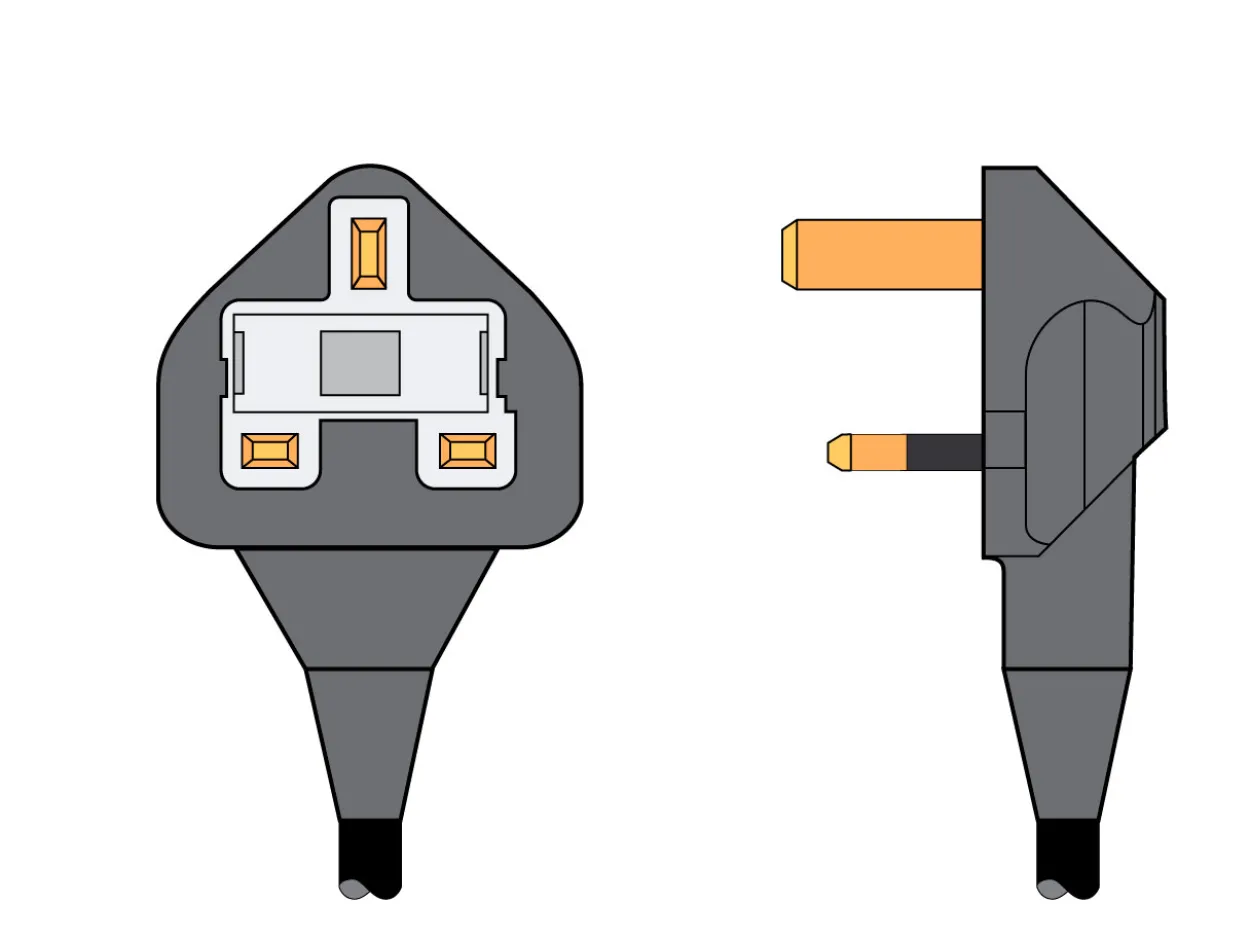

• 3 pin UK plug
• Instruction manual

To ensure the long life of the camera and prevent burnout, please avoid prolonged and excessive use. Wipe lens periodically with a clean micro fibre cloth, metal debris build up could heat and crack the lens.

The machine is supplied with 2 year warranty and only 1 year warranty for the laser.

Demonstrations of this product can be performed in-store, or virtually on request.?

Technical information and after-sales support are both available.?

For more information on technical support or to request a demonstration, please call 0345 100 1122.
