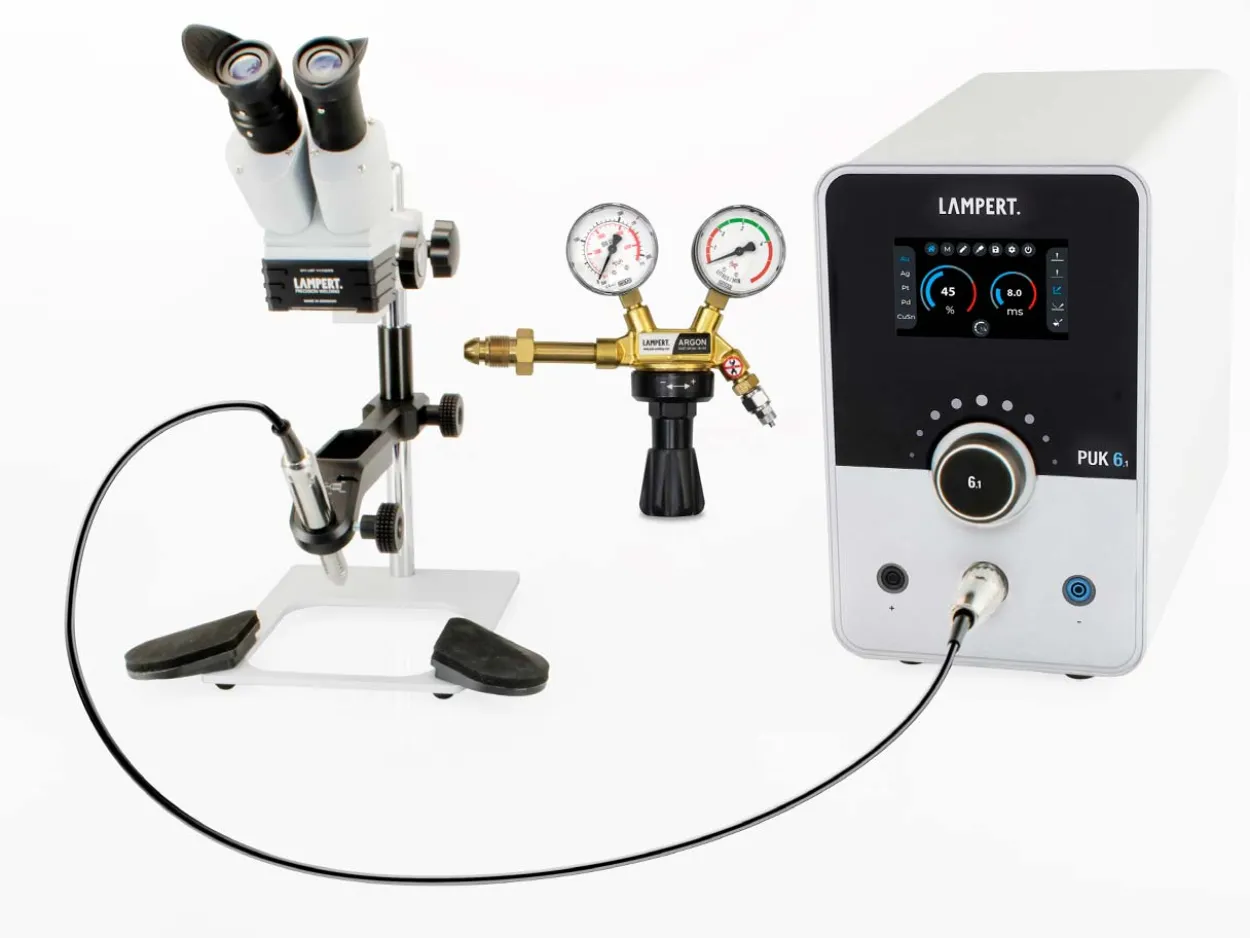

Lampert PUK 6.1 TIG Welder With Sm6 X10 Magnification Microscope And Argon Regulator

Description

The Lampert PUK 6.1 TIG Welder Set with SM6 10 x Microscope and Argon Regulator delivers exceptional precision, control, and reliability for professional fine metal welding. Engineered for goldsmiths, silversmiths, jewellers, and watchmakers, this advanced system enables ultra-clean, consistent welds on materials as thin as 0.2 mm.

What’s included:

• LAMPERT PUK 6.1 tig welder
• LAMPERT welding microscope Sm 6
• LAMPERT PUK flow regulator UK

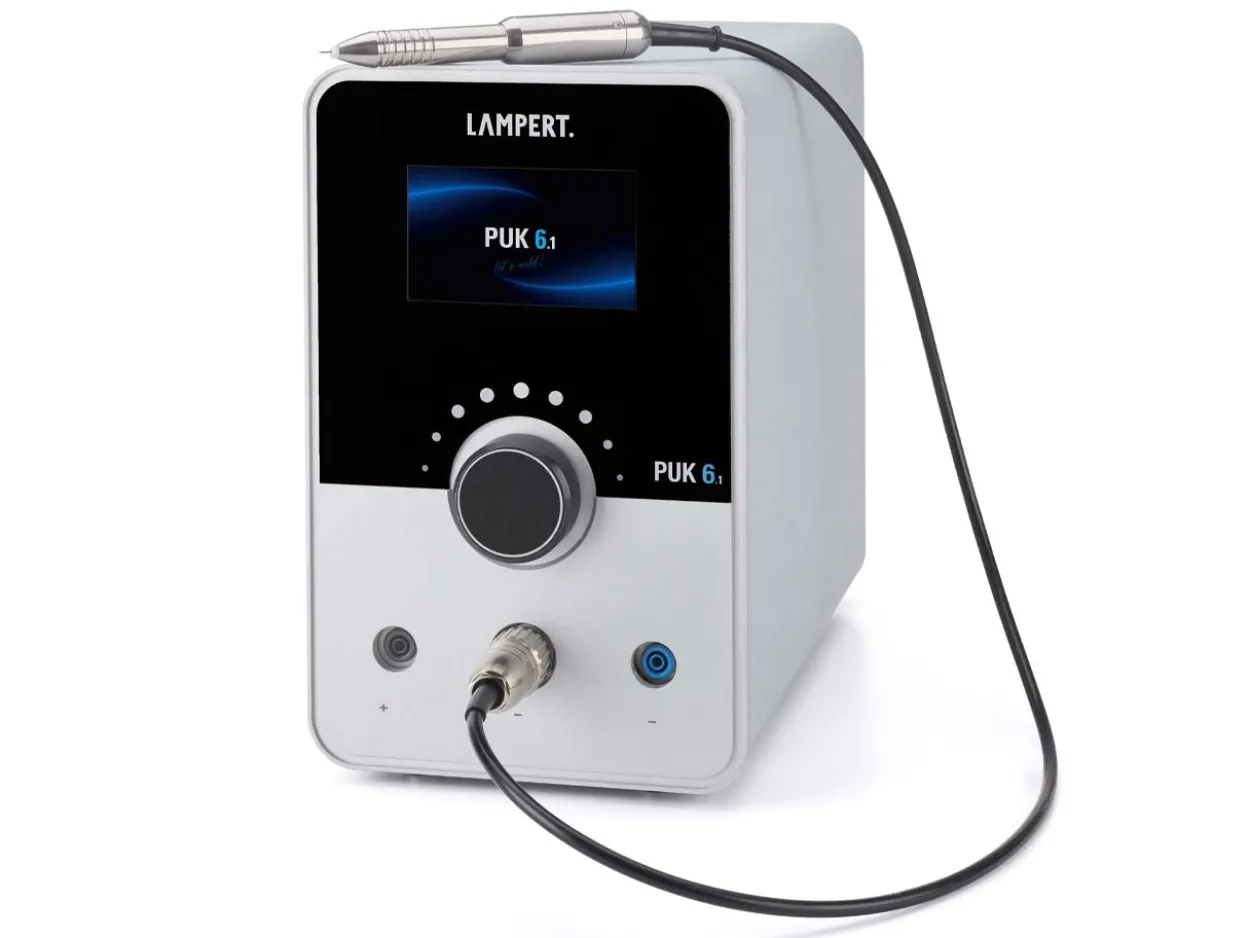

The PUK 6.1 represents the next step forward in precision welding technology, building on decades of hands-on experience in developing welding solutions for jewellery professionals. Designed for use by goldsmiths, silversmiths, jewellers, watchmakers, and related trades, it refines and expands the capabilities that made earlier models widely trusted across the industry.

This model introduces a faster and fully adjustable spot-welding sequence, allowing users to fine-tune speed continuously for greater control. It can store up to five custom programs, which remain saved even when the unit is powered down. When reactivated from standby, the machine automatically resumes using the most recent settings. A newly added PIN mode also simplifies the welding of pins and ear studs.

Through advanced computer simulations and extensive real-world testing, the welding performance has been further enhanced. Compared to previous generations, weld points are more consistent, visually cleaner, and more precise, raising fine welding accuracy to a new standard. Even extremely thin materials below 0.2 mm can be processed reliably, while a wide range of precious metal alloys can be welded for components such as rings, chains, fittings, eyelets, and studs.

Technical Specifications:

• Amperage (TIG): 9 – 630 A
• Pulse duration (TIG): 0.1 – 34 ms
• Current (fixation welding): 80 – 700 A
• Pulse duration (fixation welding): 1.5 ms
• Welding speed: Up to 3.5 Hz
• Maximum loading time: 0.8 s
• Number of metal programs: 11
• Range display with recommended settings: Yes
• Warning for excessive settings: Yes
• High-frequency welding: Yes
• Automatic gas pre-flow: Yes
• Gas consumption: Approx. 2 l/min
• Inert gas: Argon > 99.9% (e.g. Argon 4.6)
• Power consumption: 300 W
• Standby power consumption: 8 – 10 W
• Weight: 9.5 kg

The PUK 6.1 delivers up to 3.5 welds per second with smooth, stepless adjustment of the welding rhythm. Newly developed welding curves support demanding applications, while high-frequency overlay technology ensures stable results even with difficult materials.

Weld diameter and penetration depth can be precisely controlled, and a micro mode allows pulse durations as short as 0.1 milliseconds. The dedicated PIN mode makes attaching ear studs and pins especially straightforward.

The PUK 6 is capable of welding all types of metals, including gold, silver, platinum, and stainless steel with precision and accuracy. It can also be used on titanium, nickel, and tin alloys.

An optional PIN welding adapter set is available, including adapters for common pin diameters, and can be paired with a foot switch for added convenience. The device features a clean, modern design suited for both workshop environments and customer- facing retail spaces. High-quality materials, a sharp, easy-to-read display, and a durable electrode stroke mechanism contribute to both performance and longevity.

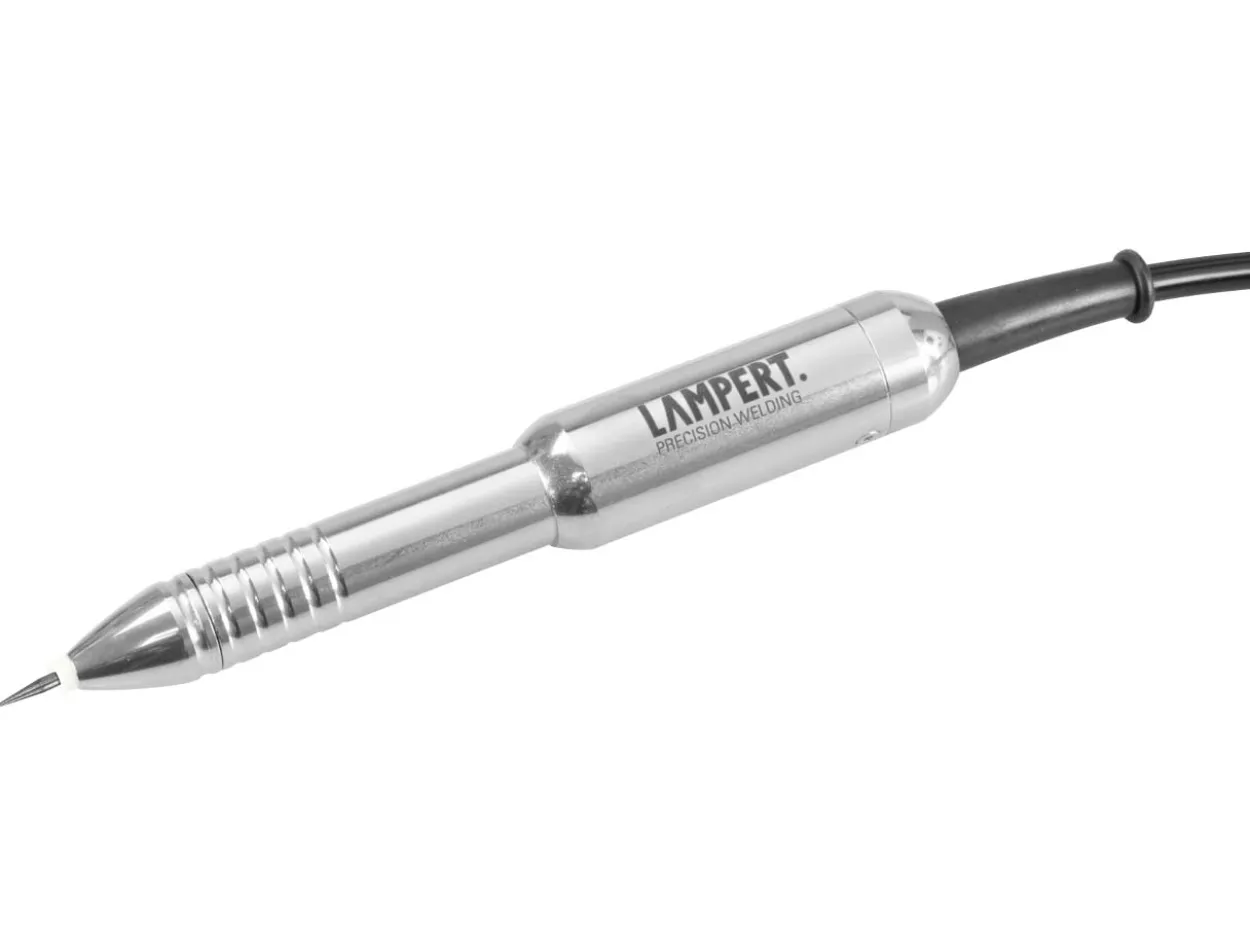

Operation is intuitive, with one-handed control via a joystick that supports turning, pushing, and tilting motions. The electrode system supports diameters from 0.6 to 1.3 mm and offers significantly extended service life compared to earlier models. Continuous adjustment allows for extremely precise energy delivery, while an integrated control system helps prevent faulty welds.

Overall, the PUK 6.1 combines advanced welding performance, user-friendly operation, and refined design into a compact, powerful unit, making it a dependable choice for professionals who require accuracy, consistency, and efficiency in fine metal welding.

Please note – this product is supplied with 3 year guarantee

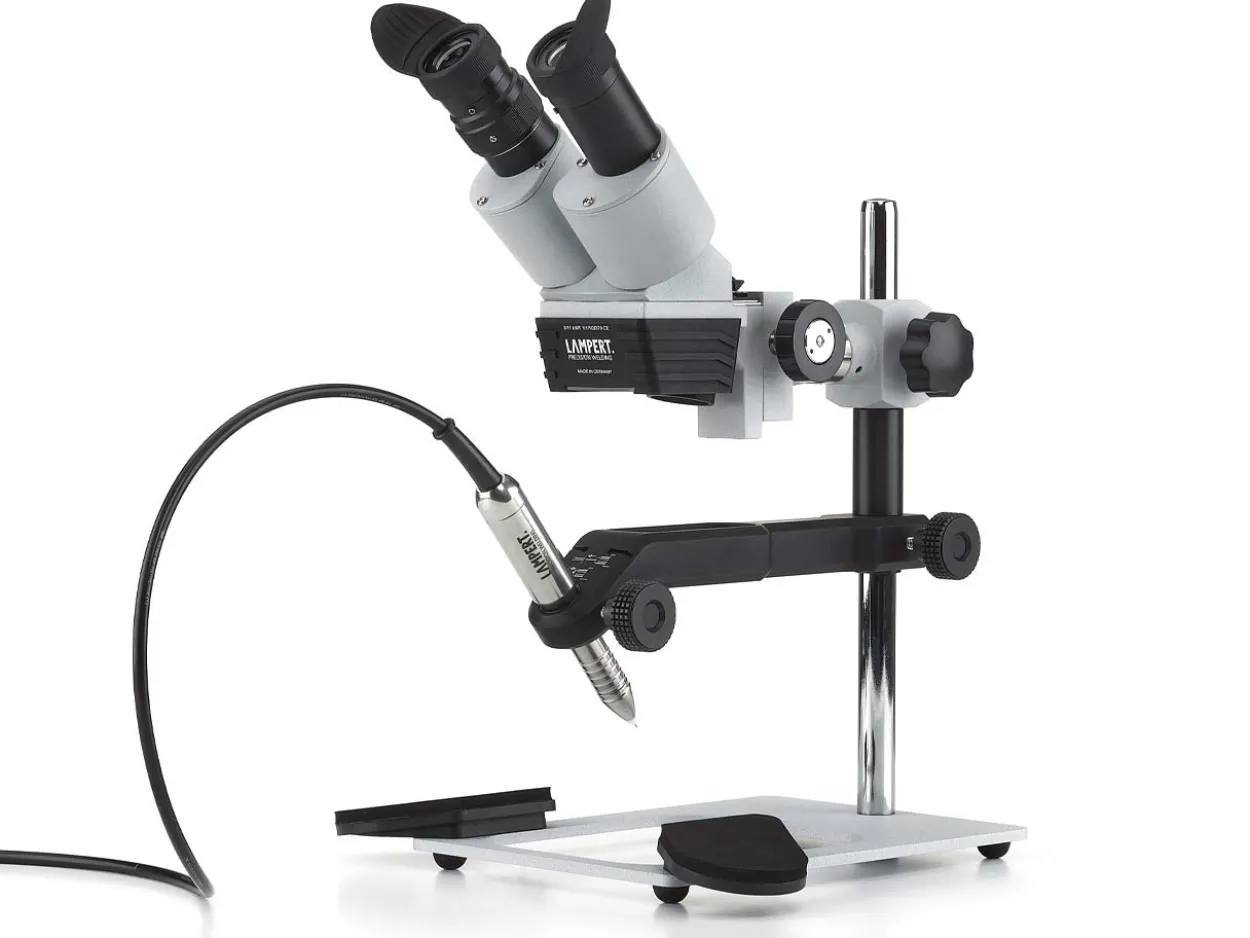

The SM6 Microscope features a high-precision lens with 10x magnification, 20mm diameter field of view, and an LCD eye protection system. This protects against UV and IR radiation generated when welding. It also comes with height and tilt adjustment, as well as hand rests to minimise fatigue, ensuring optimal comfort and ease whilst working.

Other features of the SM6 Microscope include:

• Powerful LED lighting in the head of the microscope
• 4 adjustable brightness levels to provide optimal illumination of the area being worked upon
• Suitable for use as an observation microscope

Technical Data – Microscope

• Magnification: 10x
• Field of view diameter: 20mm
• Working distance: 145mm
• Lighting: LED 3w/800 mA

Technical Data – Eye Protection System

• LCD brightness level: DIN 3
• LCD darkness level: DIN 11
• Switching time: < 50ms
• UV protection: > UV11
• IR protection: > IR11

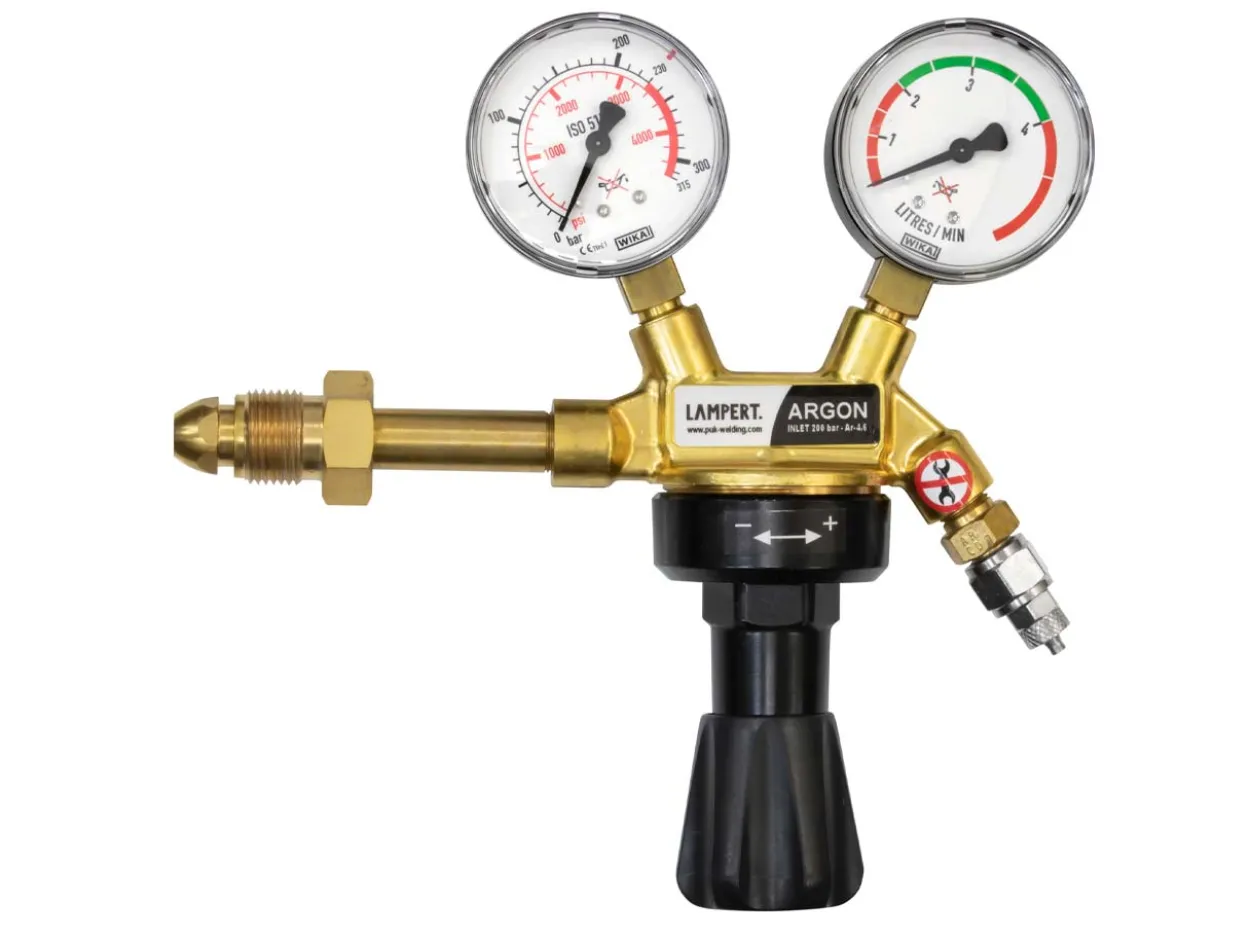

This PUK flow regulator is used to control the flow of argon gas from a compressed gas cylinder to the PUK 6 pulse arc welding machine.

Argon is commonly used as a shielding gas during welding to protect the weld area from contamination and oxidation by the surrounding air.

Featuring a dual gauge display, the PUK flow regulator ensures a dependable weld as it enables precise control of the argon gas flow rate, which should be set at 2 litres per minute.

Technical Data :

• Gas: Argon 4.6
• Maximum inlet pressure: 230 bar
• Adjustment range: 0- 6l/m
