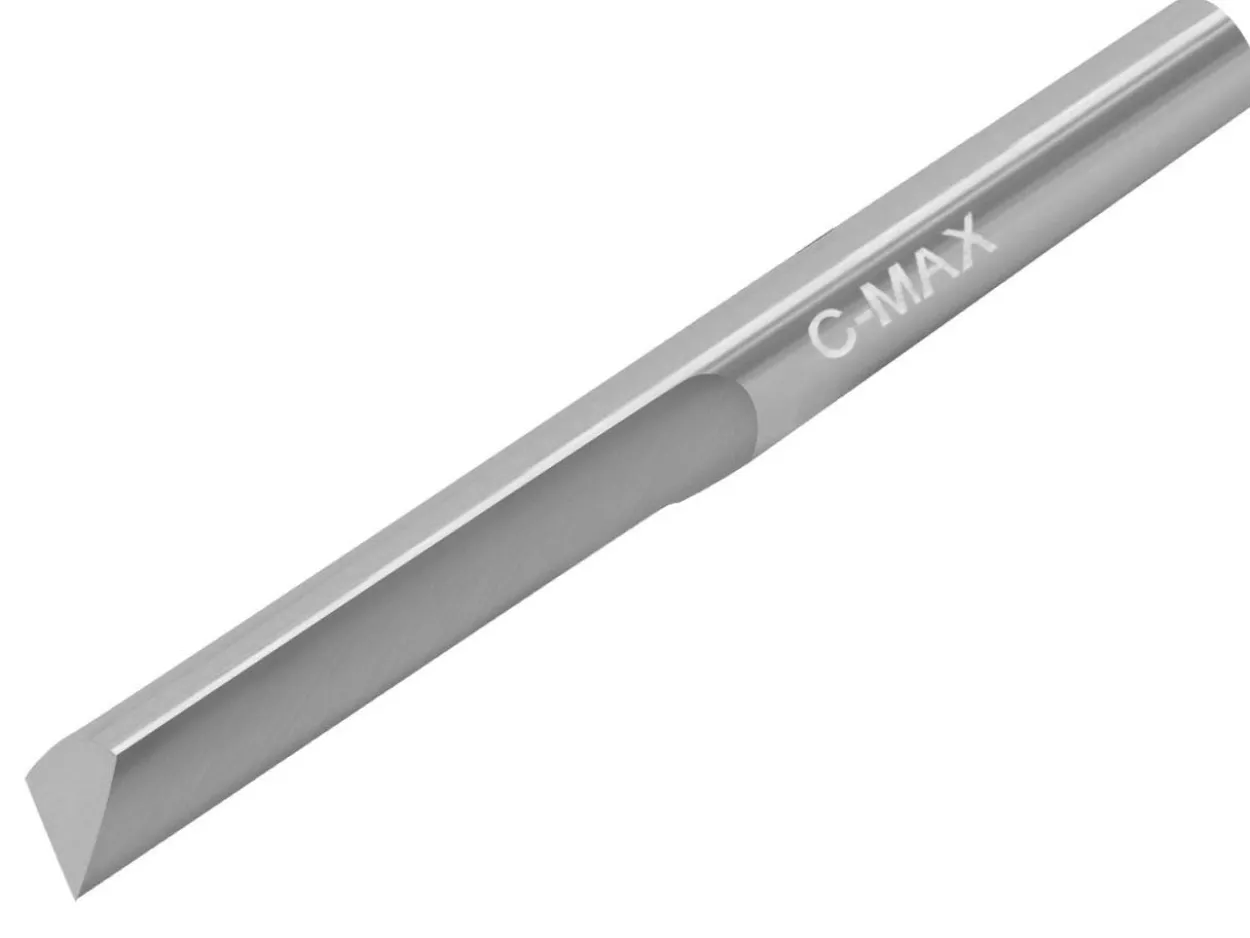

GRS® C-Max Carbide Onglette Graver 2.23mm Tool Point Width

Description

C-Max carbide gravers from GRS provide a hard wearing, superior cutting edge when compared to other metal gravers.

Onglette gravers are mainly used for jewellery engraving and stone setting applications, due to its narrow profile, and was once the standard graver used throughout the industry.

It creates a perfect high gloss, mirror finish when used on metal and because of its special tungsten carbide alloy it is even suitable to use on harder metals such as steel and titanium.

This graver has a 2.23mm (#3) tool point and features two flat alignment areas on the shank for quick orientation in a QC tool holder.

Please note – for grinding C-Max gravers we would advise to use a Diamond Wheel (Coarse: 998 G246, Medium: 998 G247, Fine: 998 G248)

Suitable to be used with 3.17mm QC Tool Holders

Measures 45.72mm long. 3.175mm shank.

All GRS products come with an extended 3 year guarantee with Cooksongold.

GRS part number: 022-628

Catalogue Page Number p749
