Foredom Double Motor Hanger With Base Mount For Workbench System

Description

The Foredom Hanging Workbench Stand System is an expertly designed modular system for organising bench tools and accessories.

This device keeps all your tools close to hand however off your workbench and stored away when not in use. The ideal system for your Jewellers workbench.

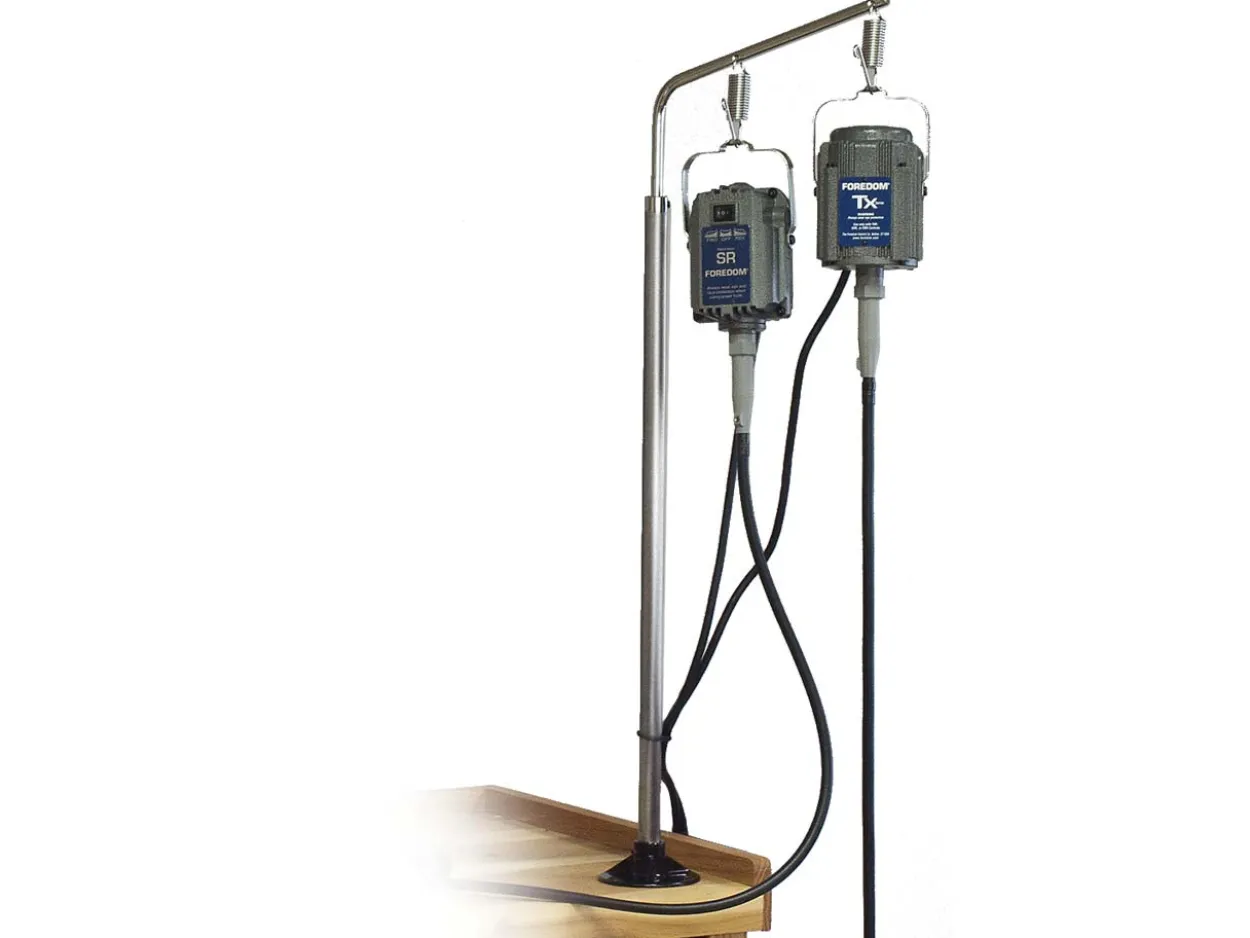

The Pendant motor hanger stand and base includes an adjustable upright post, angled at the top with two spring hooks for your motors, a base that mounts to your bench or work surface and a Allen wrench.

Use the Allen wrench to alter the height of the upright from 65cm (26″) to 124cm (49″).

Add accessory components (not included) to create an incredibly tidy, efficient and convenient work space.

The system features a 25-3/4″ long x 0.875″ diameter. Upright Shaft and Angled Extension Shaft with two spring safety clips for holding one or two motors. It comes with a Base Mounting Plate and wood screws for attaching to a hardwood bench top which opens up to a maximum capacity of 5.715cm (21/4″).

The angled extension shaft height can be adjusted so that motors hangs between 80cm (33″) to 95cm (38″) above the work area, and measured from the top of the motor 50cm (20″) to 71cm (28″) off to the right or left side of your work piece.

These are the recommended measurements for maintaining a relaxed curve to the flexible shaft.

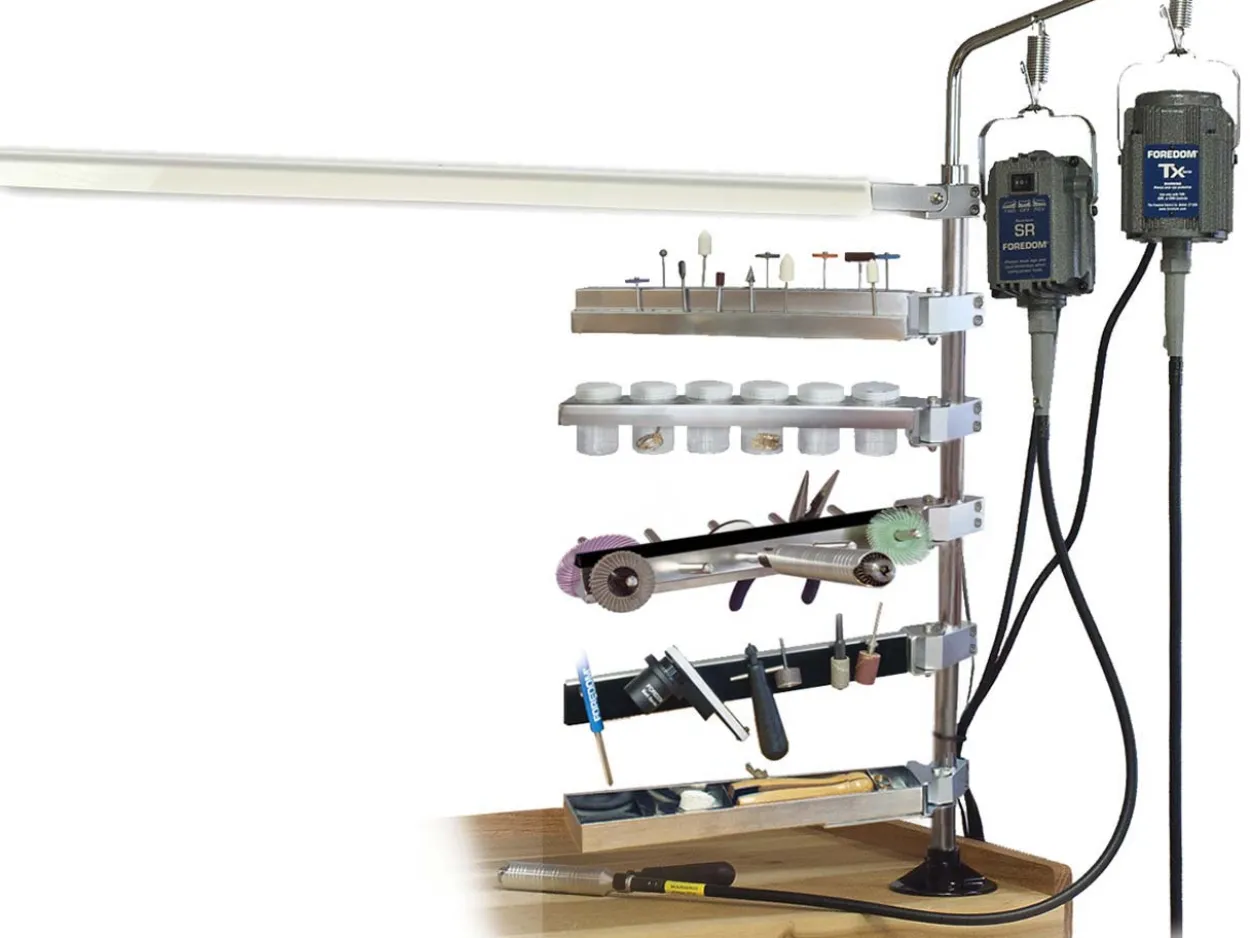

Customise the Foredom workbench system selecting from the following modular components :

• Support Rod –
• Tray Arm –
• Magnetic Arm –
• Jar Arm –
• Pegs Arm –
• Burr Holder Arm –
• Shelf Arm – 999 FD48
• Dual Handpiece Arm –
• LED Light Bar –

This product comes with a 2 year guarantee, exclusive to Cooksongold.

Foredom part number MAMH-13

Catalogue Page Number p650
