Badeco Mx-1 Carbon Micromotor Kit

Description

Badeco offers Swiss precision with superior quality, providing unmatched power and torque, ideal for detailed work on hard metals.

This Badeco MX-1 Carbon Micromotor Kit is the ideal kit for any jeweller or horologist due to its versatility.

It is the ideal tool for all your polishing, drilling or texturing needs.

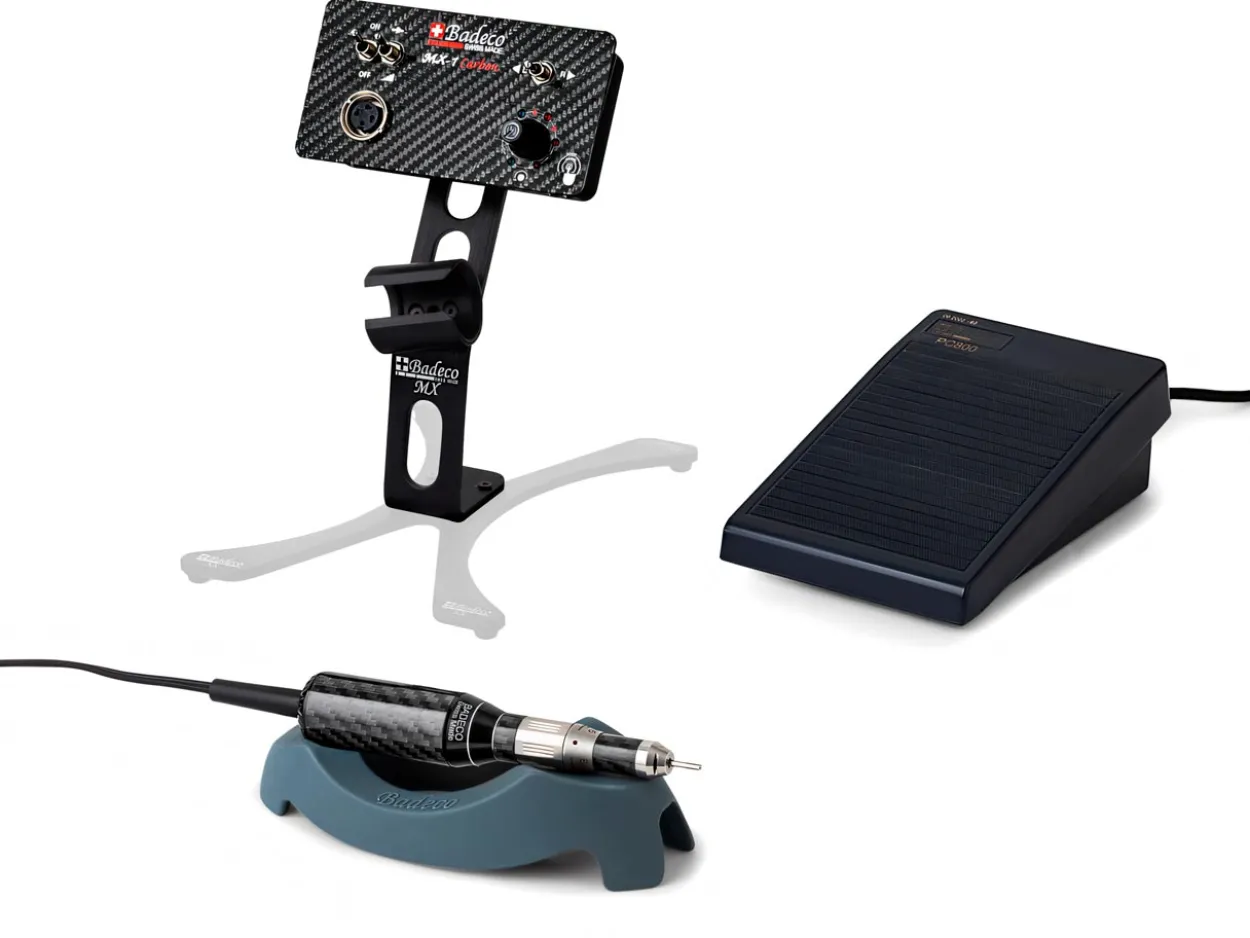

The set includes:

• MX-1 Unit
• Strong micro motor and lead- RS2000
• Rotary Handpiece 465
• Foot pedal PC800

Please note the MX Foot support for screw on foot () is not included but is an optional addition.

This reliable and powerful carbon kit is lightweight, compact and precise and has excellent thermal conductivity.

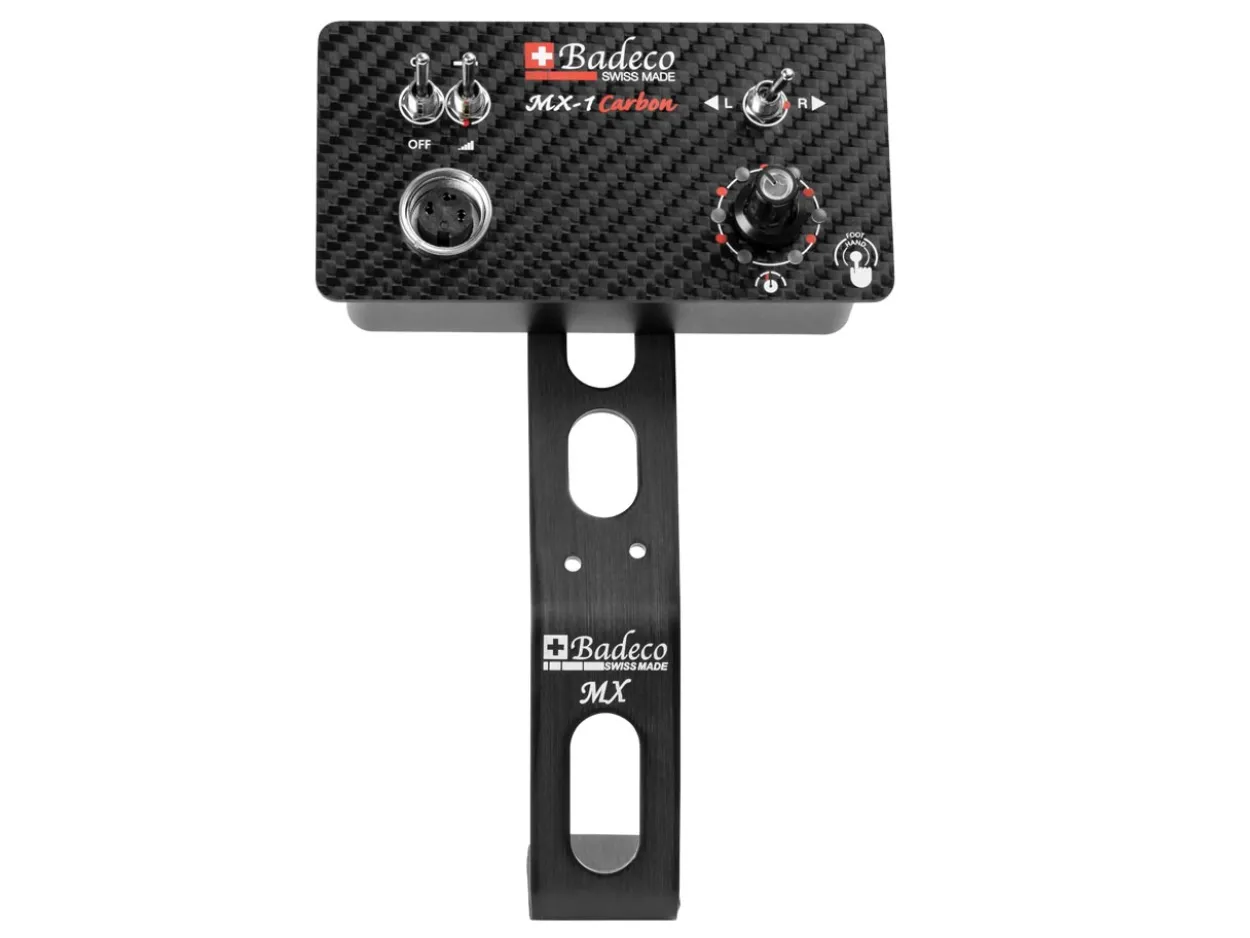

The MX1 electronic control box has 1 output, which controls the micromotor or nanomotor, the handpiece and the pedal.

All of the connections are situated on the front panel for easier mobility.

The MX1 unit itself can reach 30,000rpm and uses 24v-34a and 180w, it has a torque of 24.7cNm (newton centre meters) although different handpieces will determine what speed the tool will rotate at.

The strong micromotor supplied runs at 2,000 up to 20,000rpm.

Engineered for minimal noise and a compact footprint, perfect for any jeweller’s workspace.

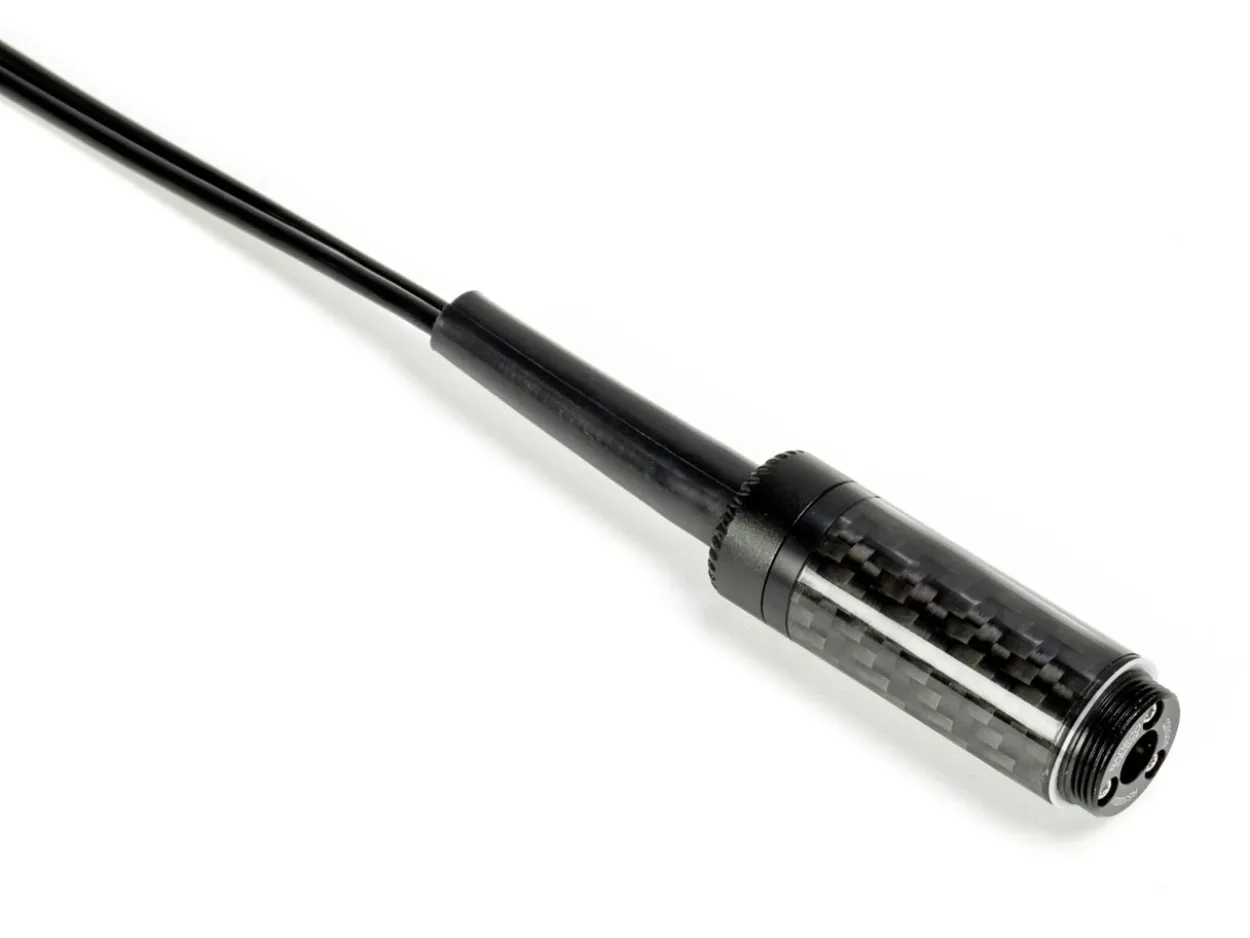

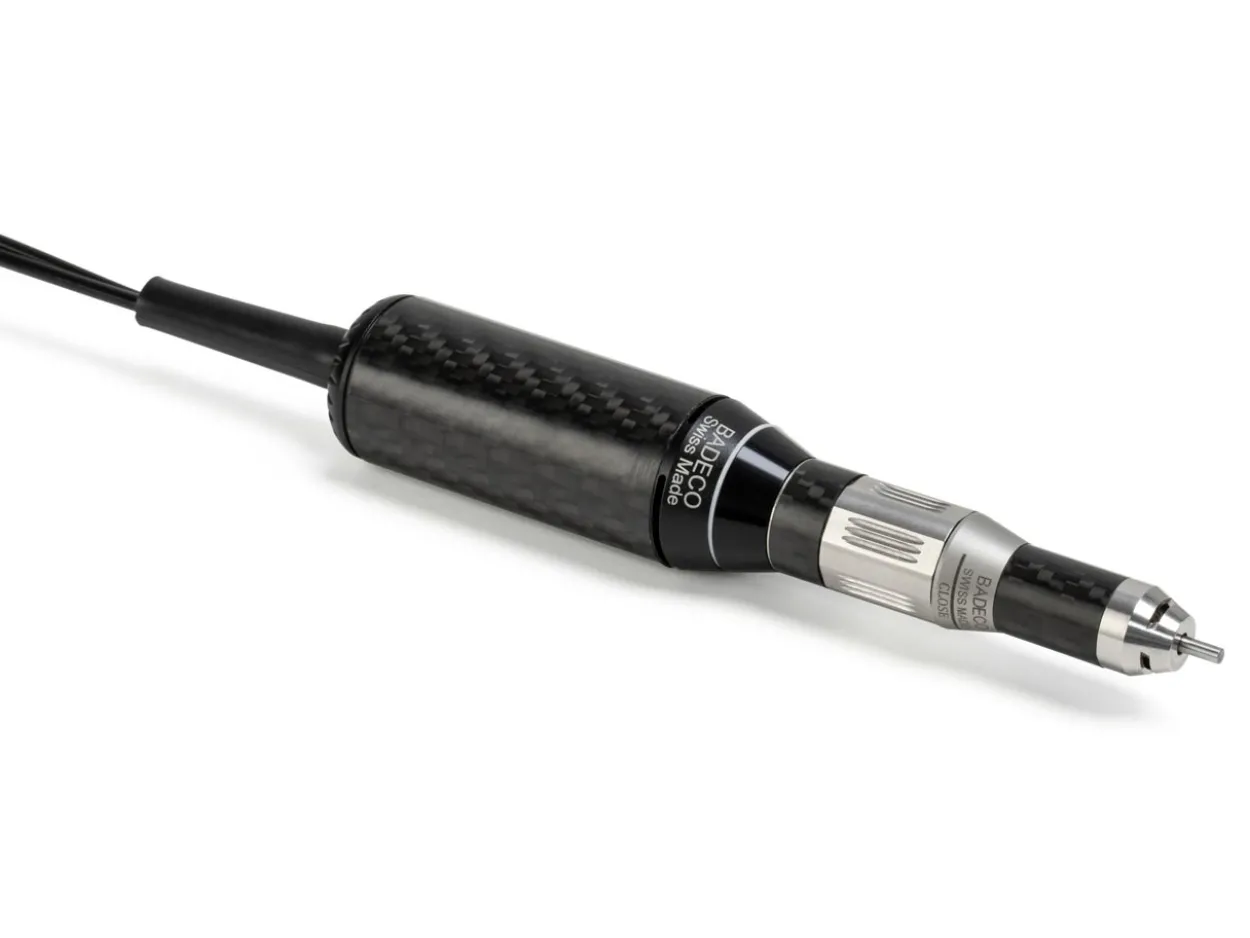

This kit is supplied with the strong micromotor (RS20000) which has a wide body, a high torque of 24.7 cNm (centre meters newton) and speed up to 20,000rpm, and is particularly useful for applying pressure to work when drilling or for heavy duty tasks such as polishing and reshaping, where substantial power and torque are required.

However it can also be used with the lighter nanomotor which has a thinner body and supplies lower torque (15.5 cNm) and higher speed (up to 12,500rpm), the RS3000SP (999 BA90) is ideal for more delicate jewellery.

Taking it one step further, for watchmaking you would require the RS3000V () with higher speed but less torque (11.3cNm), this motor is the smallest motor and is perfect for very intricate work as it doesn?t remove as much metal.

All of the motors have a soft and flexible cord that will easily attach to the control box.

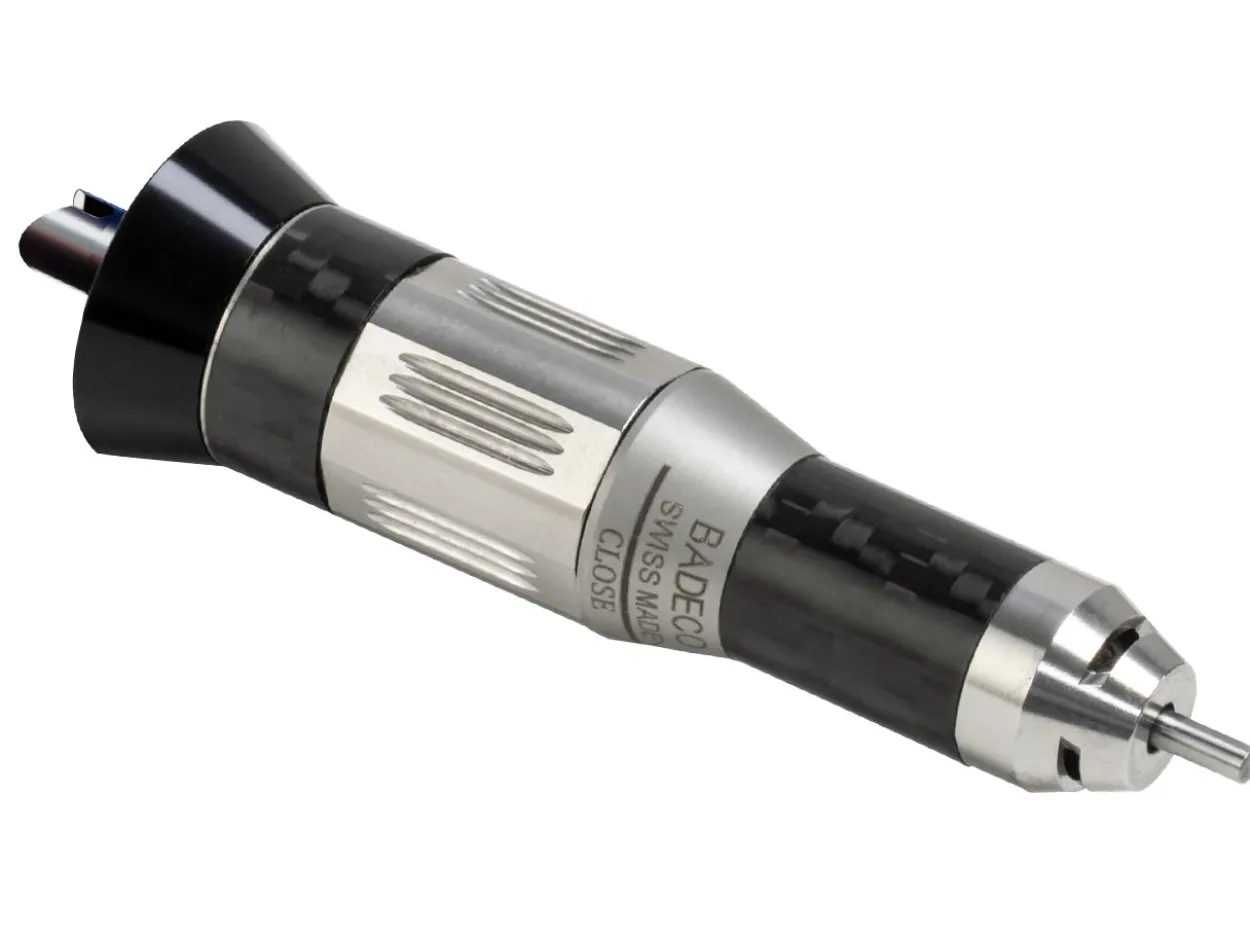

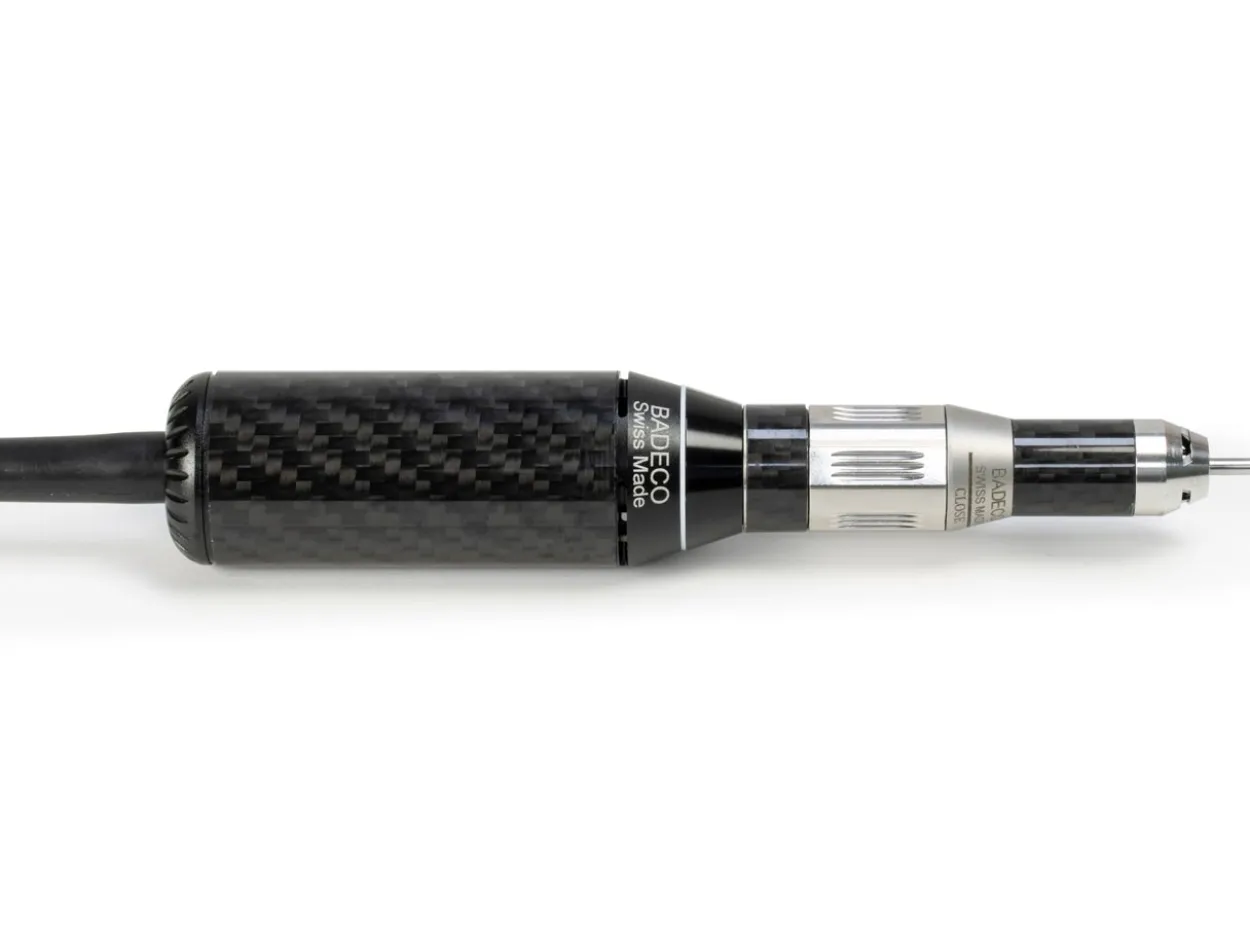

This versatile kit also comes with the 465 rotary handpiece (20,000rpm and 24.7cNm) but the multitasking motor itself can be used with a wide range of hammer handpieces, rotary handpieces or filers.

Easy to use, only: Twist the silver part of the handpiece to release the drill bit or burr you are using Unscrew the tool and replace it with your new tool (these would need to be 3/32″ or 2.35mm) Twist the silver

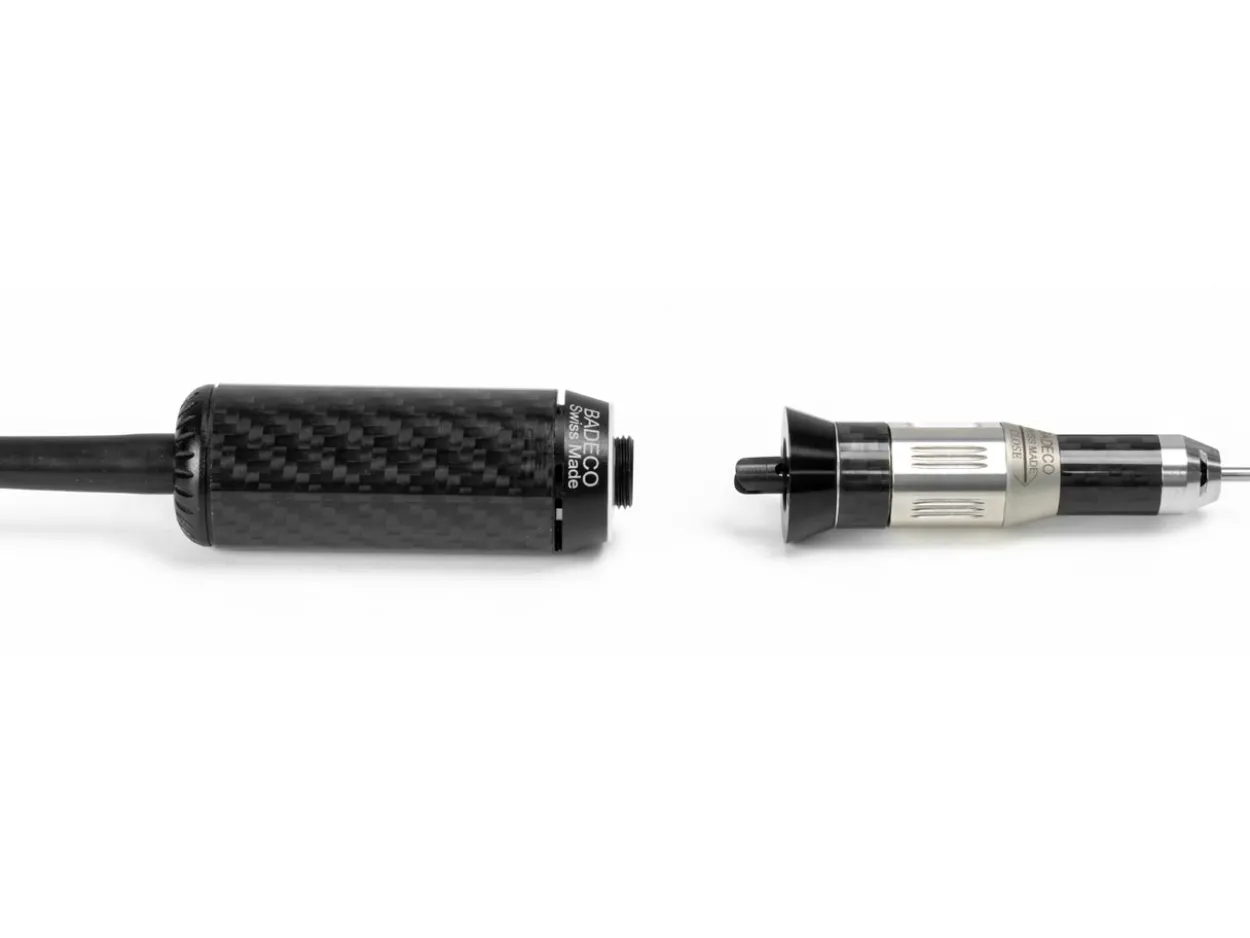

When unscrewed, you will observe that this 465 handpiece has a widened skirt, allowing it to attach to a strong micromotor. In contrast, the Nano handpieces do not have this feature, clearly indicating which handpieces are compatible with each motor. These handpieces are not interchangeable.

The collar of each handpiece also has its name engraved to make it easier to identify which tool you are using.

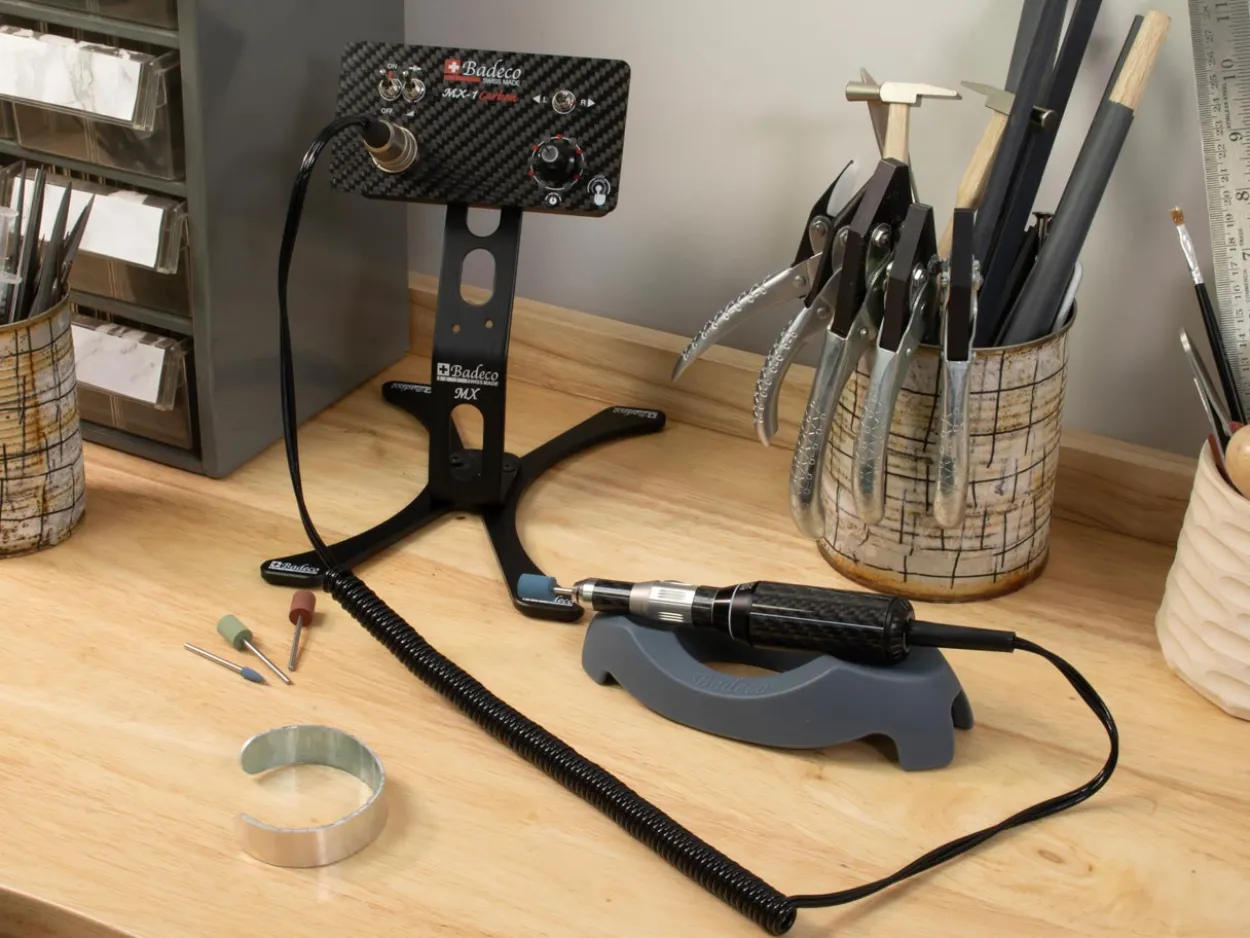

The unit can either be screwed onto the MX Foot provided (which is shaped in an X shape to provide stability) an then the unit can then be fixed to a bench or it can be inserted into the bench directly.

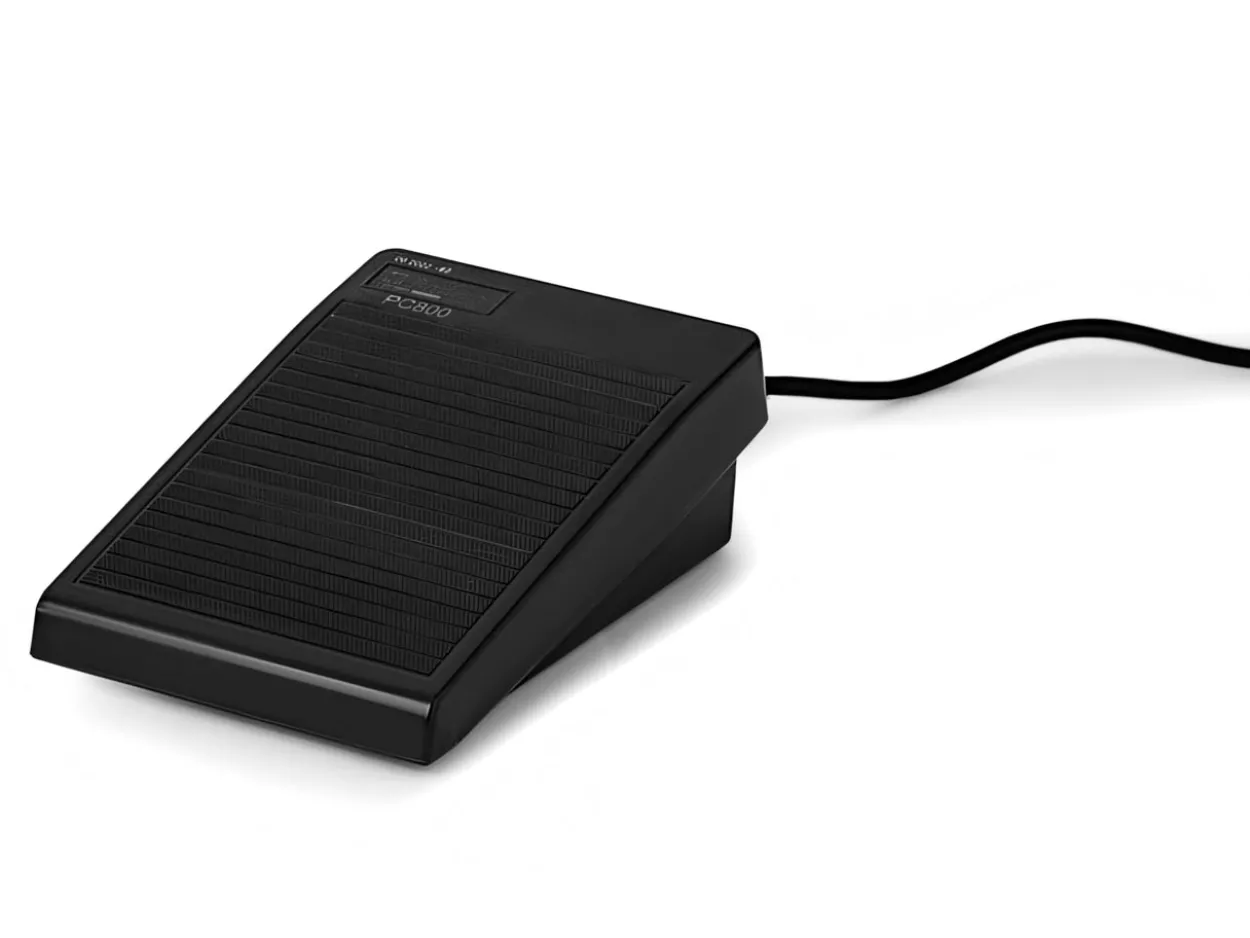

The final item in the kit is the foot pedal, PC800, this provides variable speed control and allows for hands-free operation.

This set has bought together in a kit all that you will need to get going however other handpieces and accessories are available.
