Orotig Midi Tech

Description

For the past 30 years, Orotig have designed and created state-of-the-art technological products of exceptional quality. They have continued to evolve, introducing compact lasers for use in the jewellery industry.

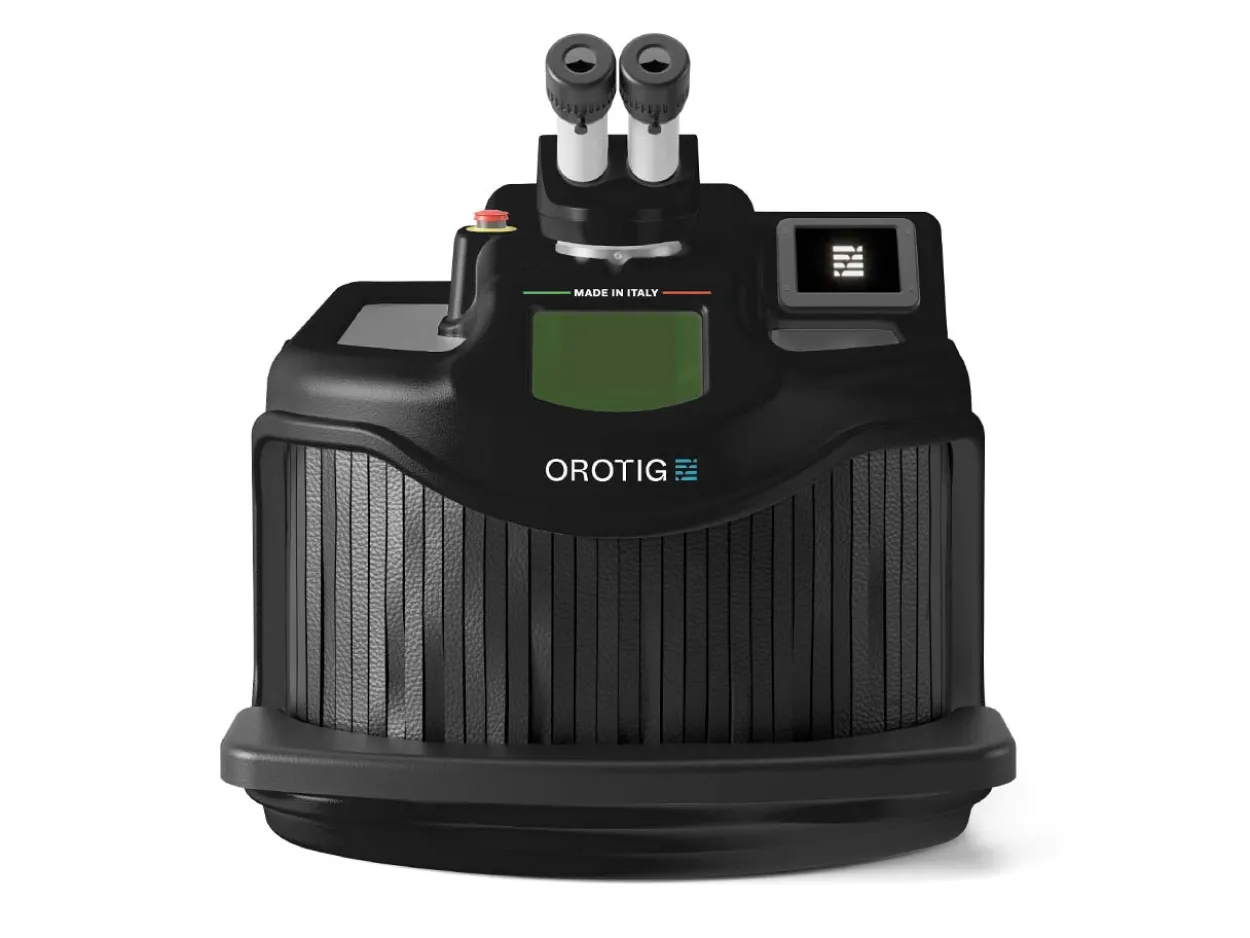

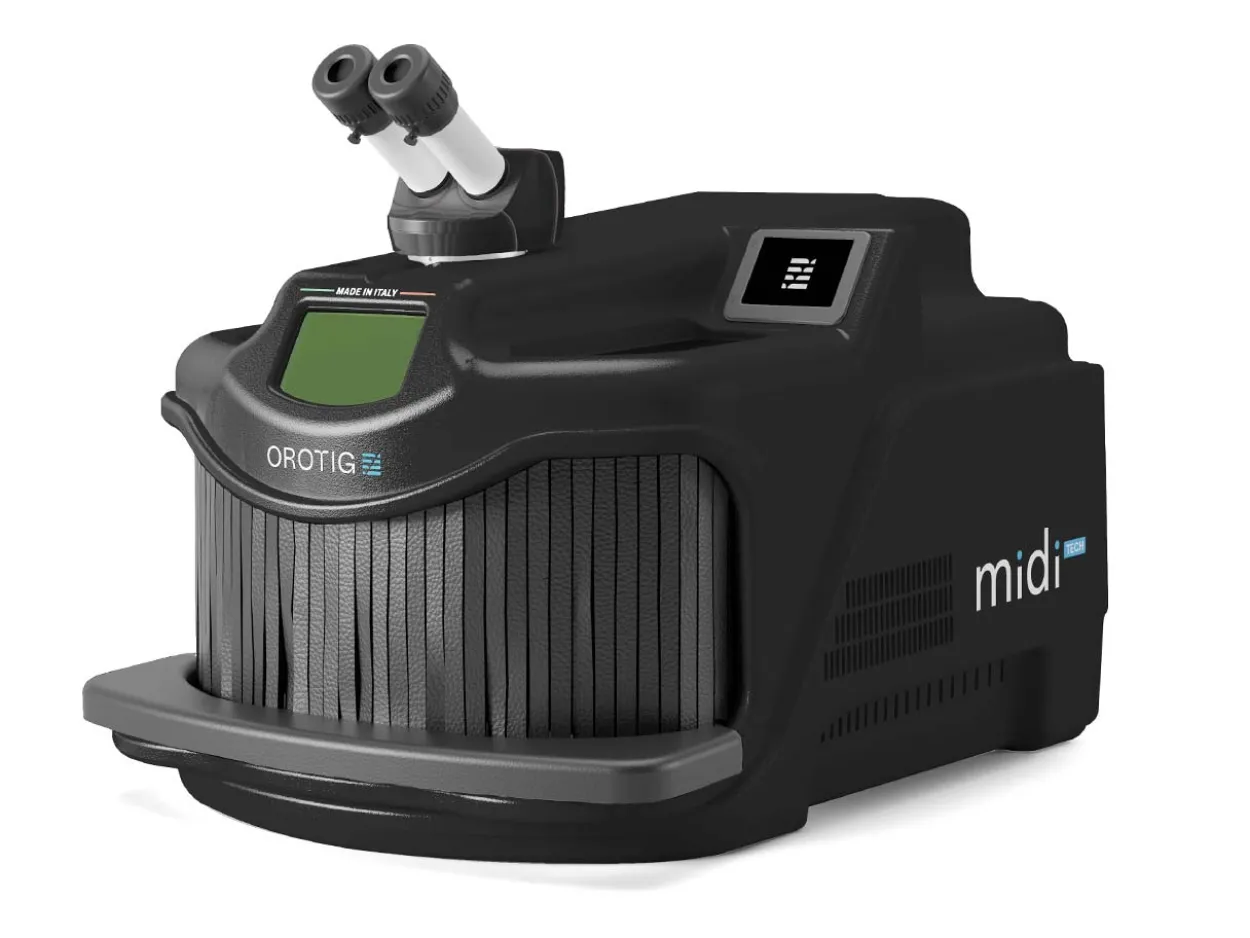

The Orotig Midi Tech is a reliable, user-friendly entry-level laser welder, specifically designed for precision work in jewellery and dental applications.

This compact and ergonomic unit is perfect for workshops that require a space-saving solution without compromising on performance.

Key Features:

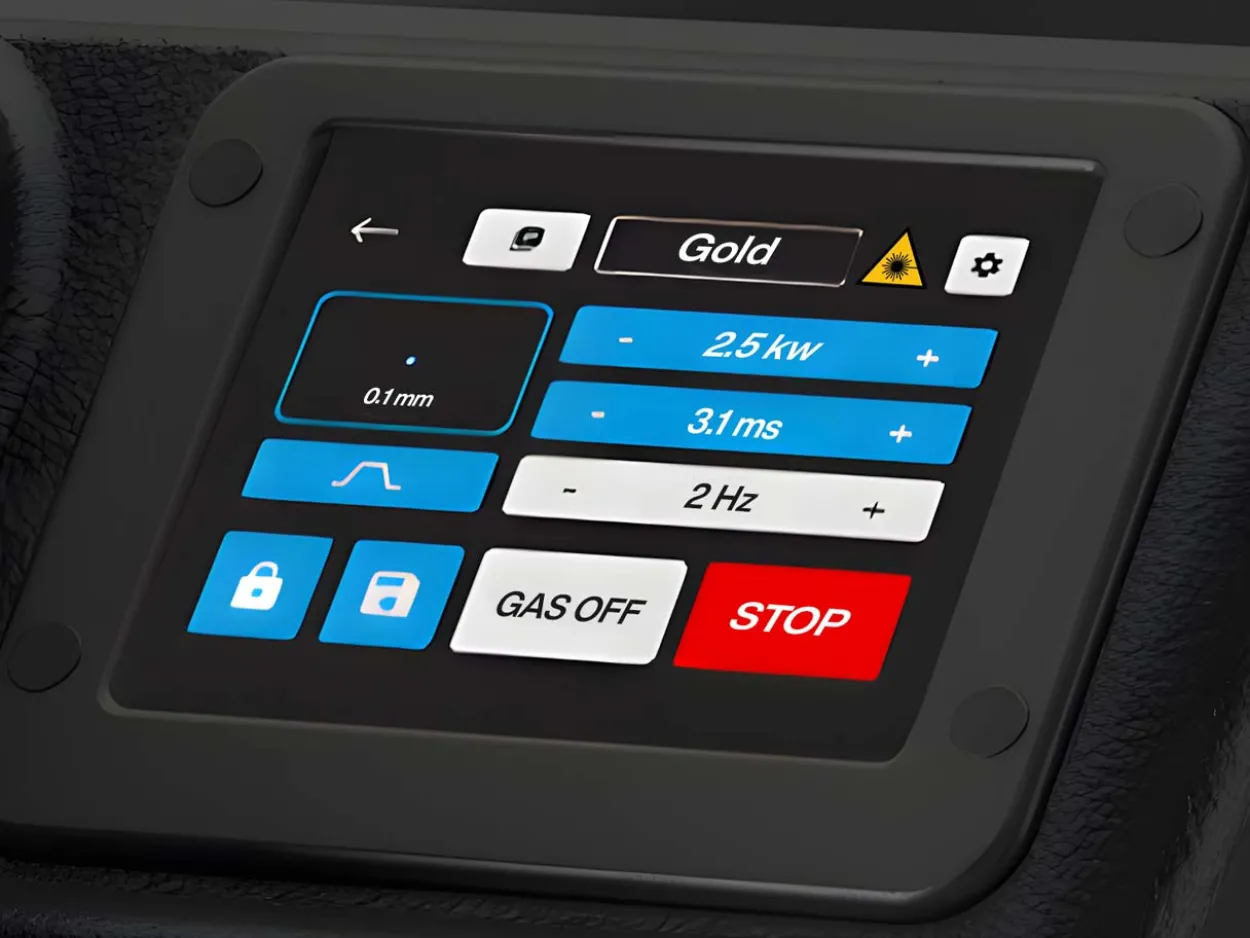

• Enhanced Interface: The welder comes equipped with EnergyTune, a smart feature that automatically adjusts power and pulse duration according to the spot diameter and type of metal being worked on. This ensures consistently accurate welds and minimizes user guesswork.
• Compact Design: With its portable and space-efficient build, the Midi Tech is ideal for small workstations or mobile setups.
• Ergonomics: An armrest cushion is integrated into the design, allowing users to operate the machine in a comfortable and stable position. This not only enhances precision and control but also helps reduce operator fatigue during extended use.
• Recommended Usage: Optimally designed for 3 to 4 hours of use per day, making it well-suited for small-scale production, repairs, or intermittent tasks.
• Emergency: Emergency button in compliance with safety regulations. LED: Adjustable LED lighting system to facilitate welding on reflective metals.
• Security system: Dual security system with mechanical and electrical shutters. Internal rotary switch: Adjusting working parameters.

Can be used on gold (7-18ct), platinum, palladium, brass, silver, stainless steel and chrome cobalt.

Technical data:

• Crystal type : Nd:YAG @ 1064
• Pulse power : 45 J
• Pulse duration : 8 ms
• Peak pulse power : 5.6 kW
• Average power : 30W
• Pulse frequency : 0 – 8 Hz
• Focal diameter : 0.2 – 1.5mm

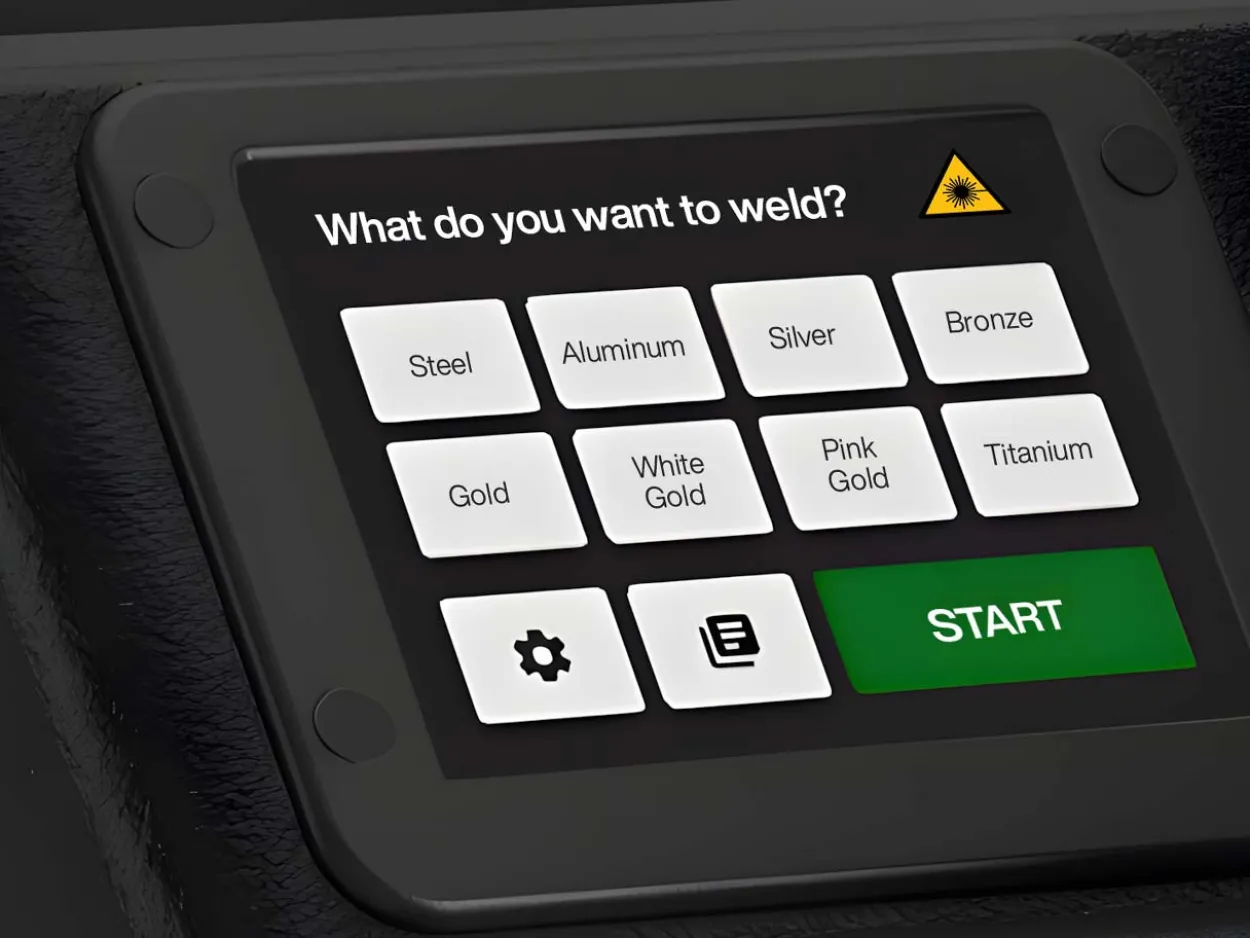

• User interface : 3.5” colour touch screen
• Power supply : 115 + 230 VAC + 10%, 1P + N + PE, 50/60 Hz 1.8kW
• Comman access : External with 3.5″ touch screen display, internal with rotary switch
• Cooling system : Liquid cooled (1 l) with forced ventilation
• Weight : 27kg

Included in the kit:

• Replacement protective glasses
• Allen screws
• Air/Gas adapter pipe
• Black cone shaped pipe to delivery gas
• Gas conveyor terminal
• Stainless steel plate 40mm (L) x 30mm (W) with a thickness of 1.5 mm
• Protective glass slide
• LTS 2.5 and 3.0 hex wrenches
• Leica 10x Microscope
• Double-distilled water
• Funnel
• RL 3/8 – 4 FOX adapter/s for air and argon
• Focusing support plate
• USB pen drive
• Blue Rilsan pipe
• Power cable with a 3-pin plug
• Control pedal
• Protection glass slide and glass slide-holder flange spacer
• Conical flange (normally already mounted in the machine) and 4 1/8 cylindrical male straight fitting
• Water drain quick coupling with pipe
• Aisi 302 stainless steel wire
• Interlock display key wiring

The dimensions are as follow : Weight – 27kg, H x 505mm, L x 650mm, and W x 521mm.

Please note : This product comes with 2 year warranty.
