Artisan Ring Blank Disc Cutter Medium 2 Sizes

Description

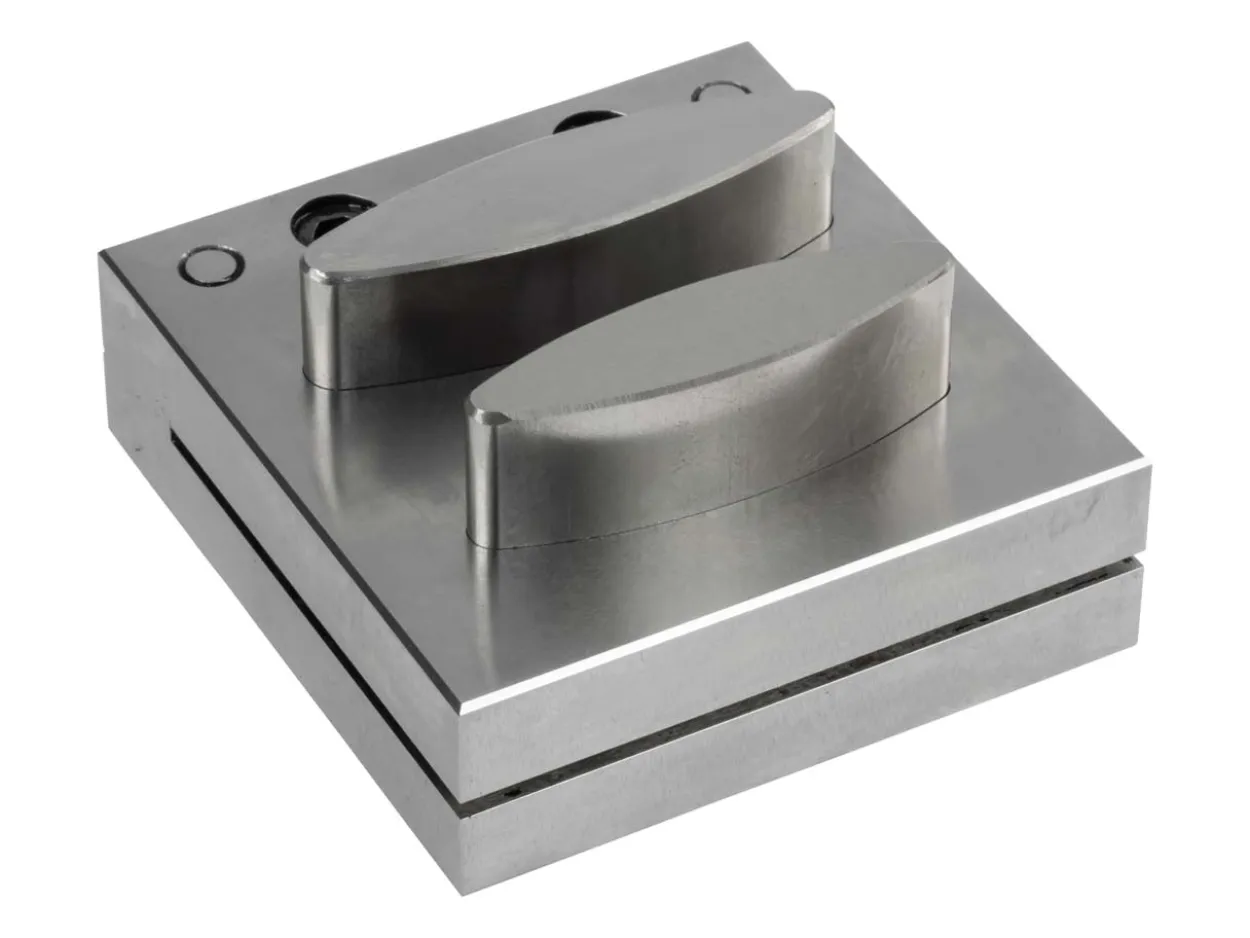

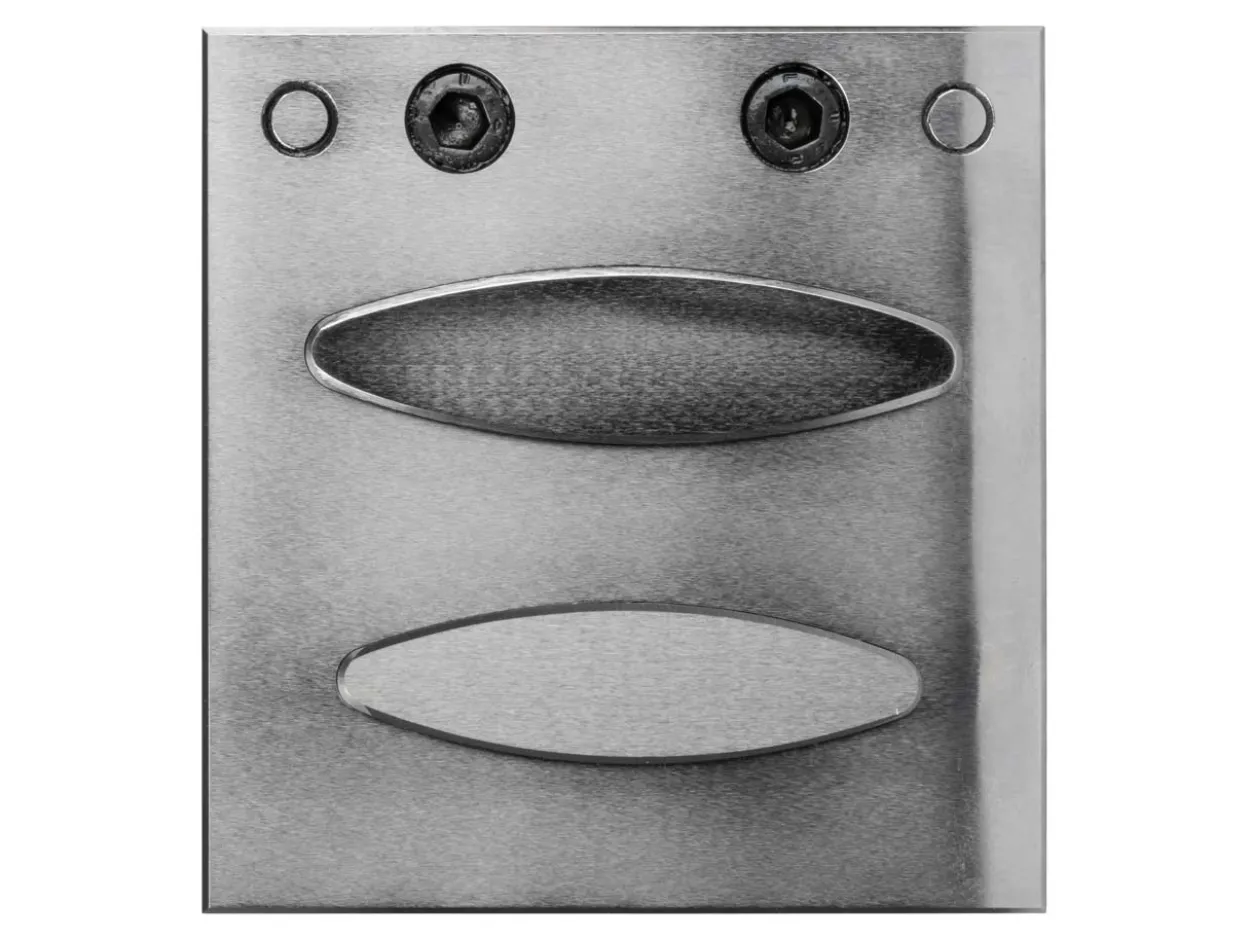

This Artisan Ring Blank Disc Cutter set is a fast and effective way of creating your own flat ring stampings.

Made from hardened tool steel this set contains 2 long oval stamps and corresponding dies measuring 57mm x 16mm tapering to 5mm and 53mm x 14mm tapering to 5mm.

The cutting end of each punch has been manufactured with a slight angle to ensure a smooth, sharp and reliable shearing action.

This set is suitable to use with soft metals such as gold, silver and copper up to 18 gauge thick (1.0mm). Other materials like brass and aluminium can also be used but care must be taken when striking.

To use this ring blank cutter set; simply place your metal under the chosen die and strike firmly with a brass hammer ().

Use cutting lubricant like Burr Life () to lubricate the cutting edges of the punch to ensure a smooth process.

Thicker gauges may require more than one strike, however do not exceed the maximum thickness stated above.

Always support the opposite side of the cutter with sheet measuring the same thickness you’re making the blanks from, this will help keep the cutter aligned and prevent the metal from sticking in the disc cutter.

Ensure your cutting edges are facing downwards. The blanks will come out of the bottom of the tool, ready for you to use. Due to the nature of the process, burring can occur – simply use emery paper to sand flush.

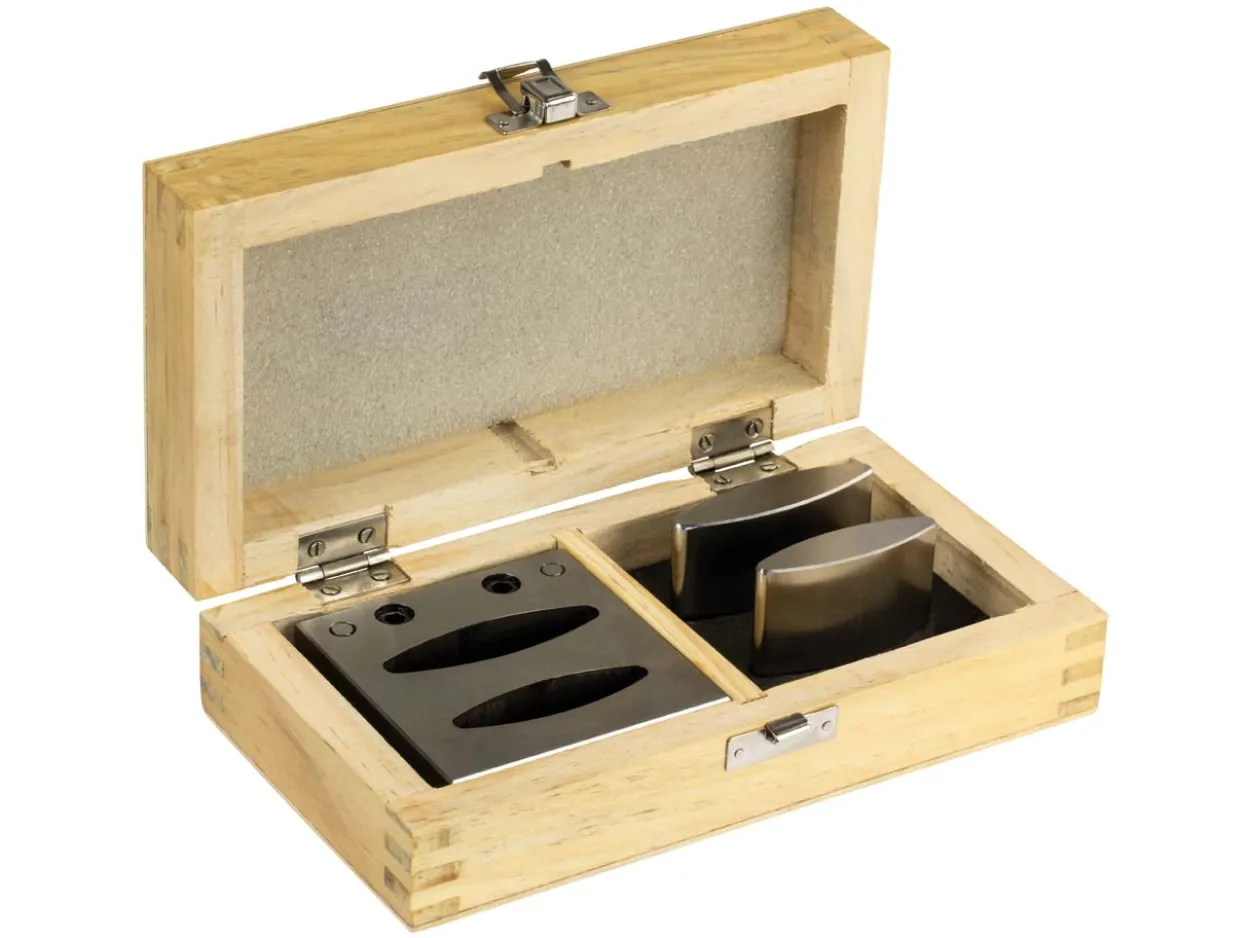

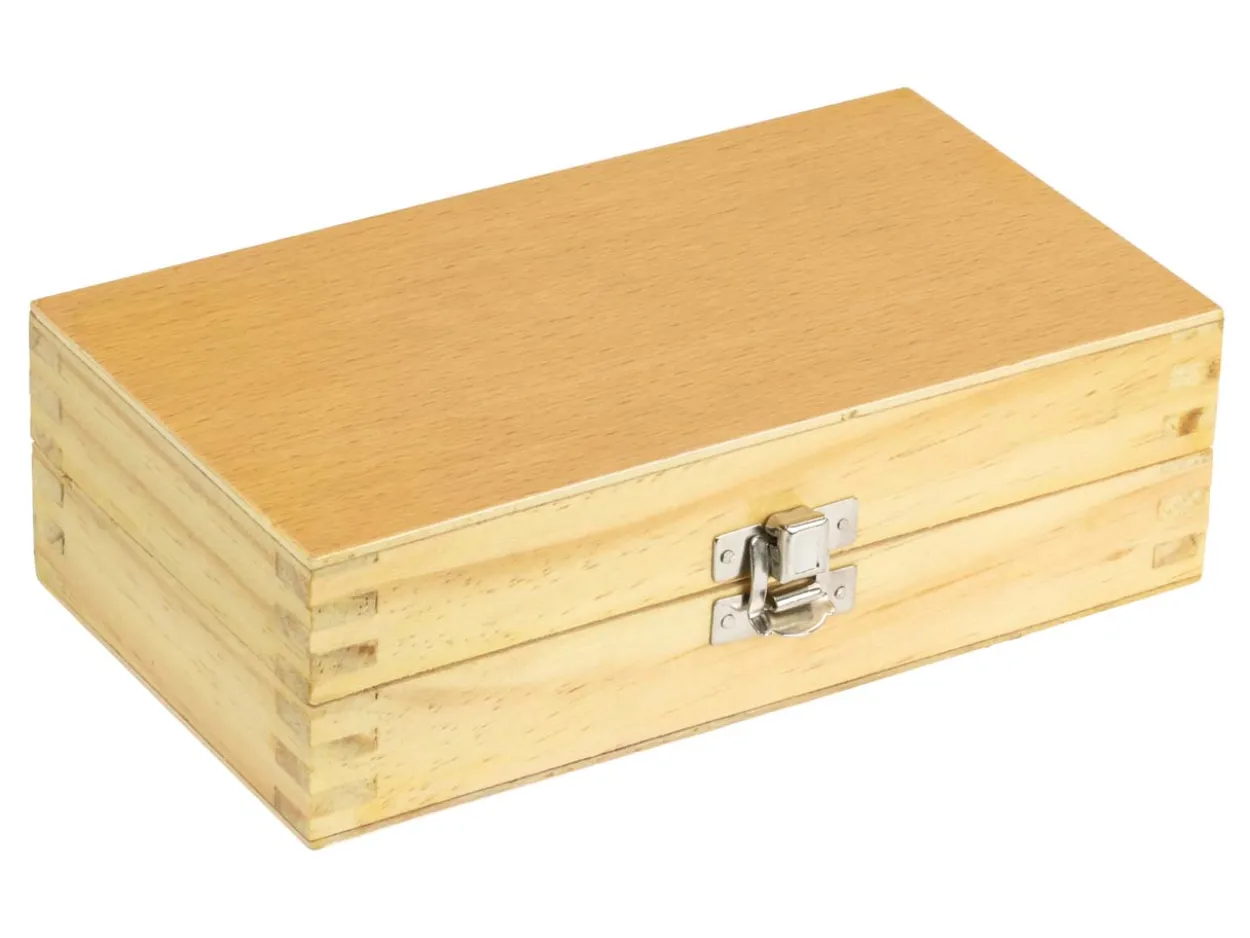

For added convenience this set is supplied in a solid wooden box to keep your tools safe and neatly contained. When not in use store away and to keep this tool in top condition, we would advise using a lubricant to avoid rust.

The cutting edges have a 7 degree angle, enabling it to cut through metal like scissors.

Tool measures 75mm x 75mm x 22mm.

This kit includes:

• 1 long oval stamp measuring 57mm x 16mm (tapering to 5mm)
• 1 long oval stamp measuring 53mm x 14mm (tapering to 5mm)
• Corresponding dies for the above stamps

---

Catalogue Page Number p551

---
